Winterhalter STR series User Manual

Operation
9

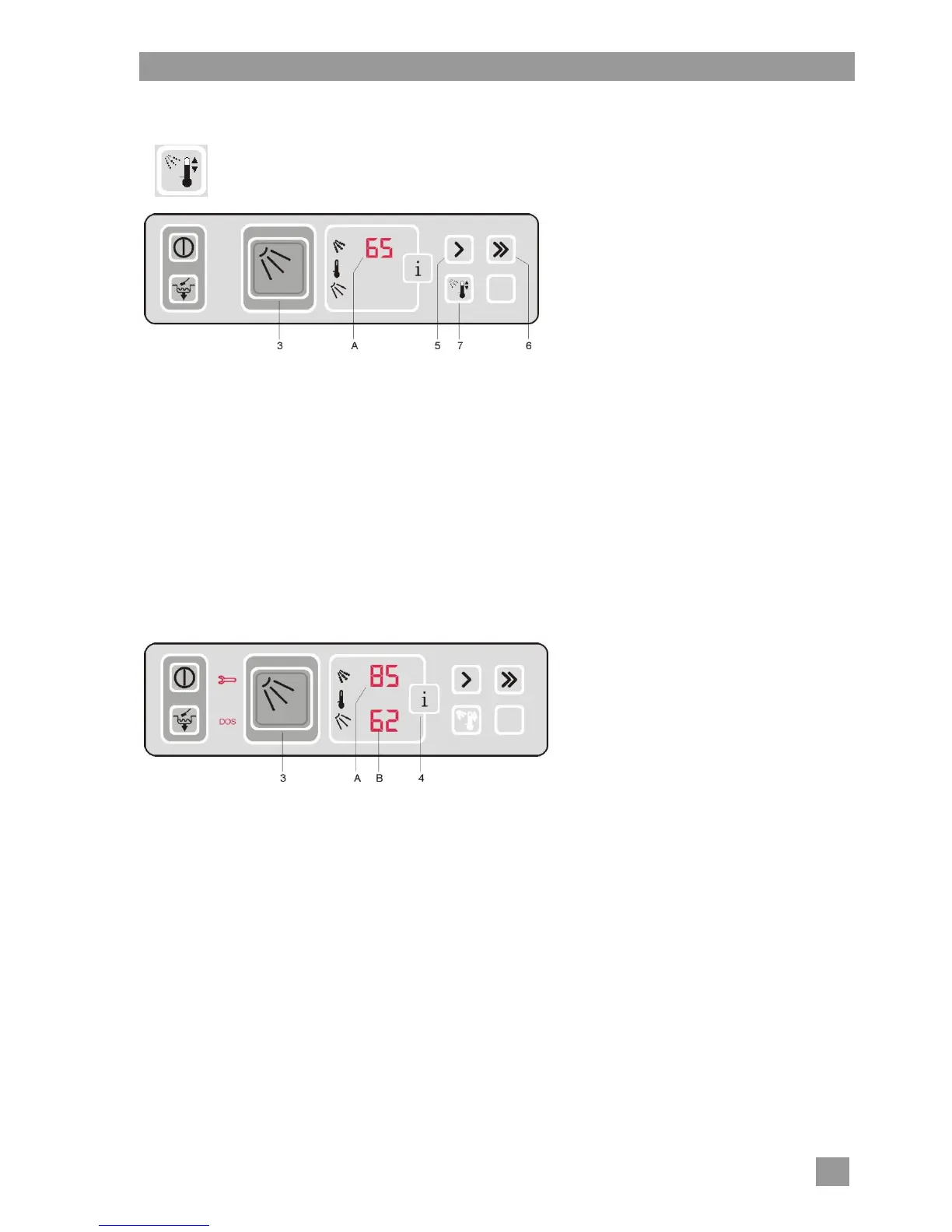

7.3 Washing with a decreased rinse temperature (special equipment)
IMPORTANT: Wash glasses with a reduced rinse temperature in order to prevent premature
glass corrosion.
 Press button 7 to activate the temperature
decrease.
 Button 7 blinks.
 The rated temperature entered into
the program at which rinsing at a reduced
temperature will take place appears on
display A for about five seconds.
 Afterwards, the current actual
temperature is displayed. If continuous
display of the temperatures was not
activated ( 7.4), the display goes blank
after a short time.
 Set the transport speed (press button 5 or
button 6) and start the rack conveyor
transport with button 3.
If you want to increase the rinse temperature again, do the following:
 Press button 7 to switch off the temperature decrease.
 Button 7 lights up.
 The rated temperature entered into the program at which rinsing without a reduced temperature will
take place appears on display A for about five seconds. Afterwards, the current actual temperature is
displayed if continuous display of the temperatures was activated ( 7.4).
7.4 Displaying the temperatures on the control panel
 Press button 4.
 The current boiler temperature is
displayed for about five seconds on
display A.
 The current tank temperature is
displayed for about five seconds on
display B.
INFO: Alternatively, the machine can be programmed so that the temperatures are continuously displayed.
Contact a Winterhalter service technician.
7.5 The table limit switch
The table limit switch prevents dish breakage in case the rinsed washing racks are not taken away from the
outfeed table and more washing racks are transported out of the machine.
As soon as a washing rack is pushed onto the table limit switch, rack conveyor transport stops and button 3
lights up green.
When the load is taken off of the table limit switch, rack conveyor transport starts again automatically and
button 3 lights up blue. If a washing rack is in the machine, the circulating pump is started up again.
