Winterhalter STR series User Manual

Maintenance and care
12
 Close the stopcock in the water pipe in the building.
 Switch off the mains disconnector in the building.
8.1.4 Manual cleaning of the machine interior
 Open the machine door.
 Remove and clean the curtains.

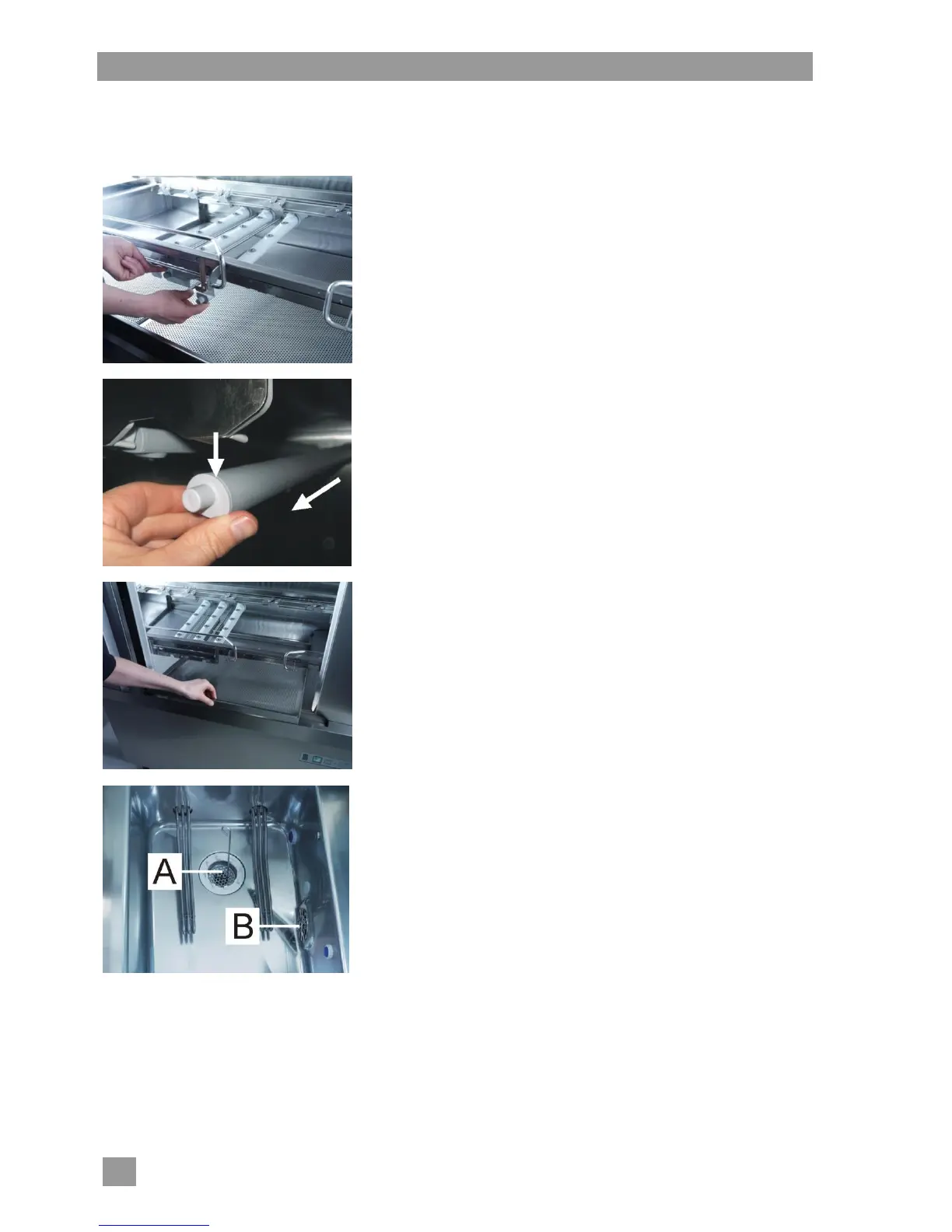

 Remove the lower wash arms (five jets):
 Lift the locking mechanism.
 Rotate the wash arm out of the guide and remove it in the
direction of the front side.
 Wash out the wash arms if the jets are blocked.
 Remove the upper wash arms (six jets):
 Pull the wash arm downwards out of the catch and remove it in
the direction of the front side.
 Wash out the wash arms if the jets are blocked.
 Remove and clean the strainer.
 Remove the filter (A) from the tank floor drain.
 If the interior of the machine is dirty, clean the interior of the
machine with a sponge and a brush. If necessary, you can spray the
interior with a hose.
 Use a brush to clean the filter (B) covering the pump inlet
opening. If necessary, the filter can be removed.
 Reinsert the filter (A) into the tank floor drain.
 Reinsert the strainer.
 Reinsert the wash arms.
 Reinsert the curtains. The curtains are designed (coded) so they cannot be inserted in the wrong position.
Both of the long curtains are located on the ends of the machine.
 Close the machine door.

Winterhalter STR series Specifications

General

Dimensions	Varies by model
Booster heater power	Varies by model
Total connected load	Varies by model
Weight	Varies by model
Control	Electronic control
Features	automatic detergent dosing
Rack size	500 x 500 mm
Power consumption	Varies by model
Dimensions (HxWxD)	Varies by model
Drying system	Residual heat drying
