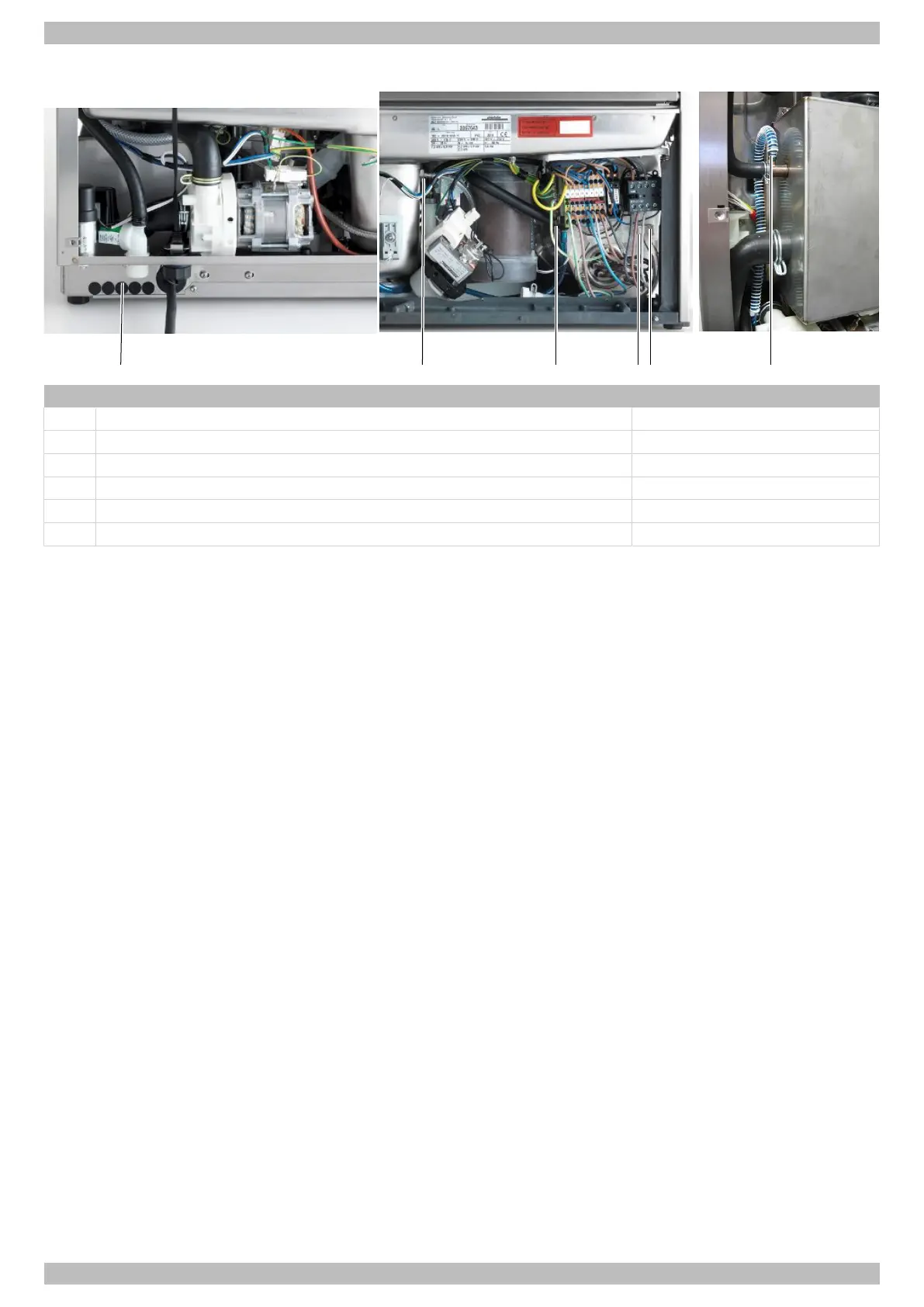

5.3 Connecting suction tubes and external dosing devices
1 3 42 5 6
Item Name Note
1 Entries for hoses and cables Rear view
2 Connection for detergent dosing hose Front view
3 Connection for rinse aid dosing hose UC-M, UC-L, UC-XL
4 Plug for detergent suction tube with empty indicator White plugs
5 Plug for rinse aid suction tube with empty indicator Blue plugs
6 Connection for rinse aid dosing hose UC-S, rear view
Ø Disconnect the warewasher from the electrical mains supply and secure against unintended activation.
Ø Remove the front cover from the warewasher.
Ø Remove partition wall to the electrical installation area.
Ø Lead the dosing hose and the connection cable through at the intended point on the back of the warewasher chassis
(1).
Ø Fasten the detergent dosing hose to detergent connection (2) with wire hose clip.
Ø Fasten the rinse aid dosing hose to the rinse aid connection (3 / 6) with a wire hose clip.
Ø Connect the connection cable of the suction tube on the plug (4 / 5).
Ø Ensure that the dosing hose and connection cable are guided kink-free.
Ø Install the partition wall to the electrical installation area.
