Connecting the machine
35

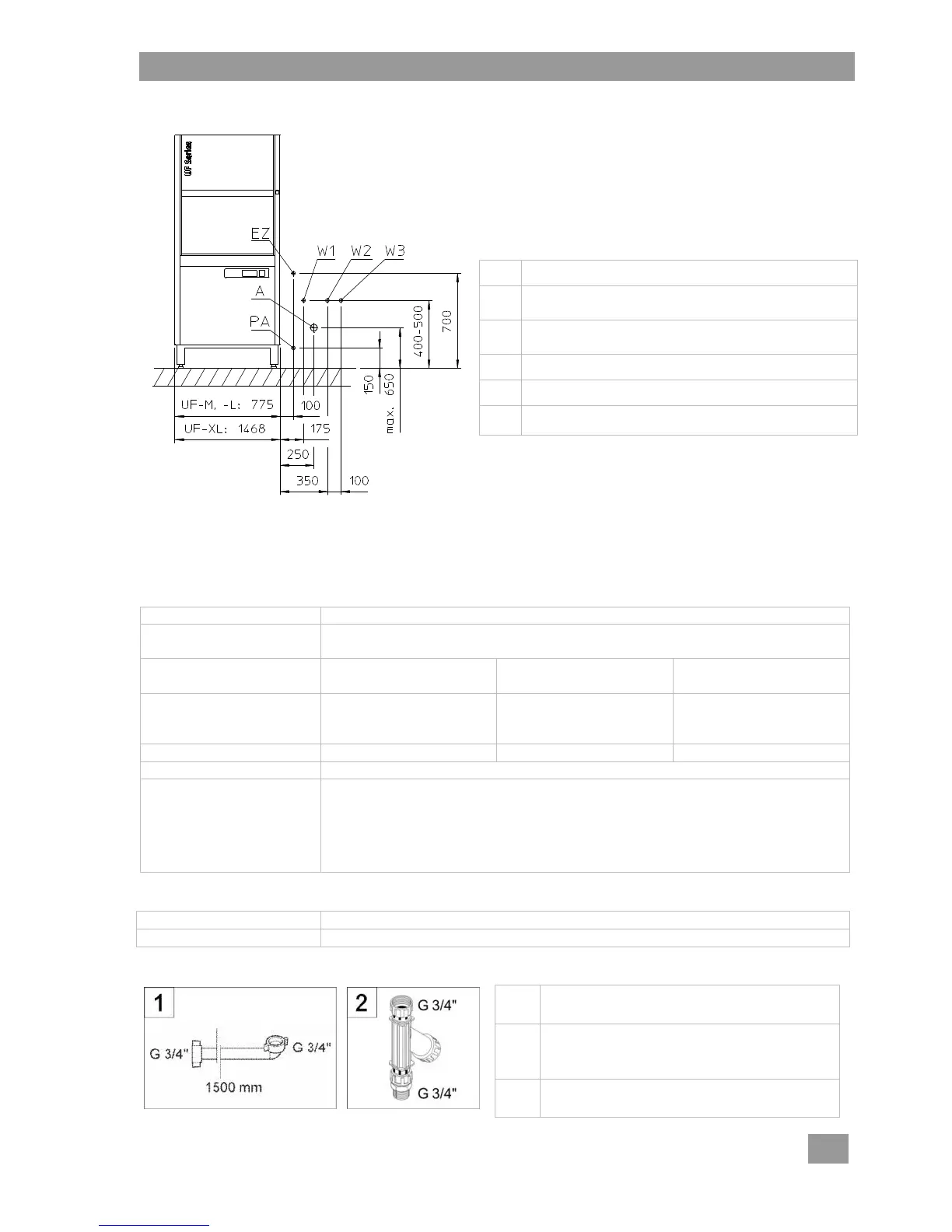

15.2 Installation diagram
IMPORTANT
Provide the connections next to the machine on the left
or the right.
Define the precise dimensions taking the local
circumstances into account.
W1
Main water connection (cold or hot)
W2
Cold water (optional)
Only for machines with cold water pre-wash
W3
Hot water (optional)
Tank filling with hot water with UF Energy
EZ
Electrical connection ( 15.5)
A
Waste water connection
PA
Equipotential bonding ( 15.5)
15.3 Water connection
The water-related safety should be as per DIN EN 61770. The machine can be connected to an inlet water
supply without an intermediate connection to other safety equipment.
W1, W2, W3: Inlet water connection (G ¾", external thread):
Position
See drawing
Water quality
The fresh water must be of drinking water quality from a microbiological
perspective.
Maximum inlet water
temperature
W1: 60 °C
UF Energy: 20 °C
W2: 20 °C
W3: 60 °C
Minimum flow pressure
W1: 100 kPa (1.0 bar)
UF-Energy: 150 kPa
(1.5 bar)
W2: 250 kPa (2.5 bar)
W3: 100 kPa (1.0 bar)
Flow rate
W1: at least 4 l/min
W2: 20-25 l/min
W3: at least 4 l/min
Maximum inlet pressure
600 kPa (6.0 bar)
Water hardness
We recommend a maximum hardness of 3 dH (3.8 e / 5.34 TH / 0.54 mmol/l) to
prevent scaling in the machine.
with UF Energy:
With conductivity < 200 µS/cm (128 ppm TDS), a stainless-steel heat exchanger
is necessary.
A: Waste water connection (DN 40/50)
Position
See drawing
Construction
With trap
Accessories
1
Flexible inlet water hose;
Connect at points W1, W2 and W3
2
Dirt trap;
Install between the water stop cock and the
inlet water hose
–
Additional equipment:
Flexible drain hose (D40 x 2000 mm)
