External dosing devices
37
16 External dosing devices
Instead of the integral dosing device, external dosing devices can also be used. Follow the instructions in
this section. Additional information can be found in German and English on the Winterhalter web site
(Dosiertechnik / Dosing systems).
16.1 Terminals
Danger
Danger to life. Live components.
Get the dosing devices installed and commissioned by an authorised service technician.

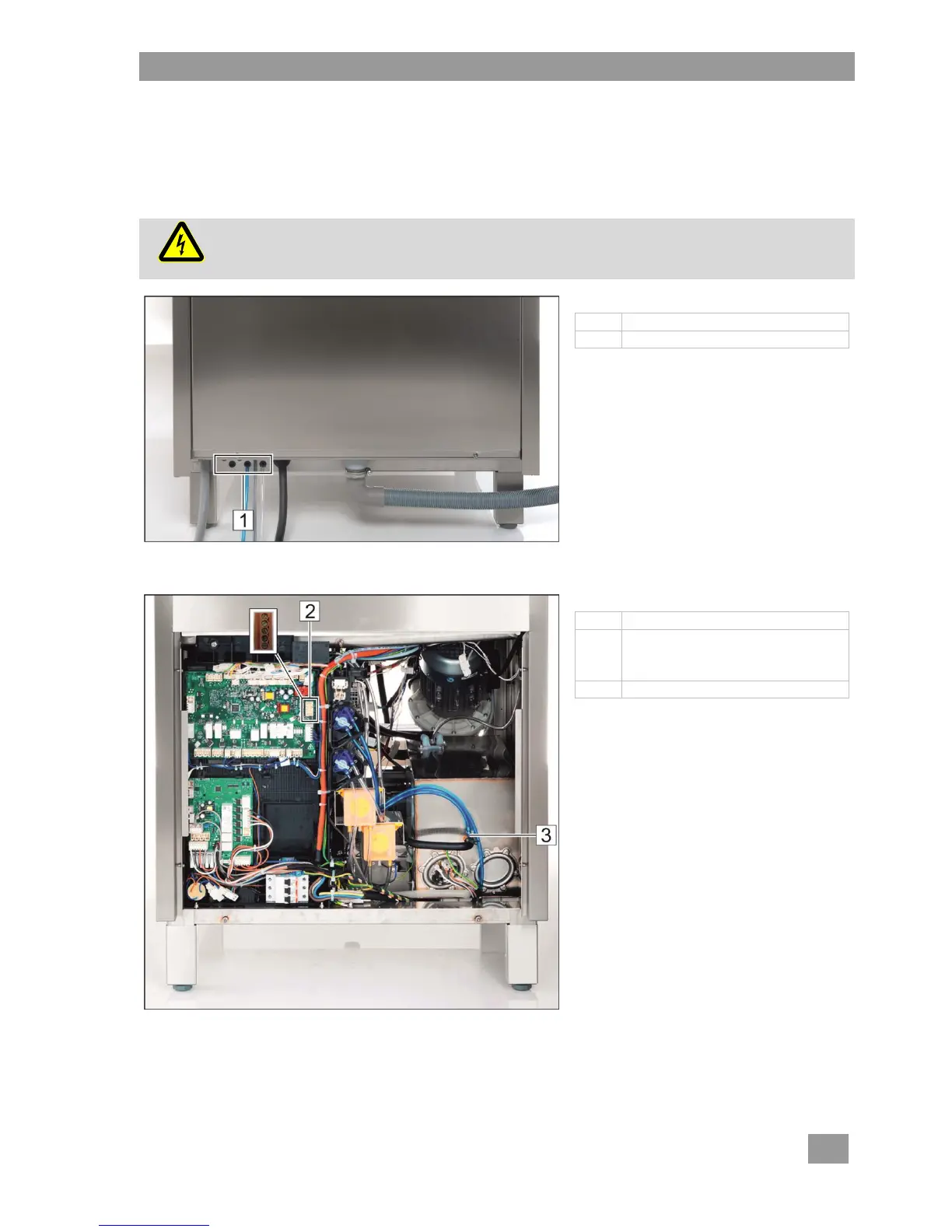

Pos.
Designation
1
Entries for hoses and cables
Rear view (UF-M)
Pos.
Designation
2
Transfer strip with red plug for
connecting external dosing
devices
3
Rinse aid dosing point
Front view (UF-M)
