9.11.1 Castor Control Levers

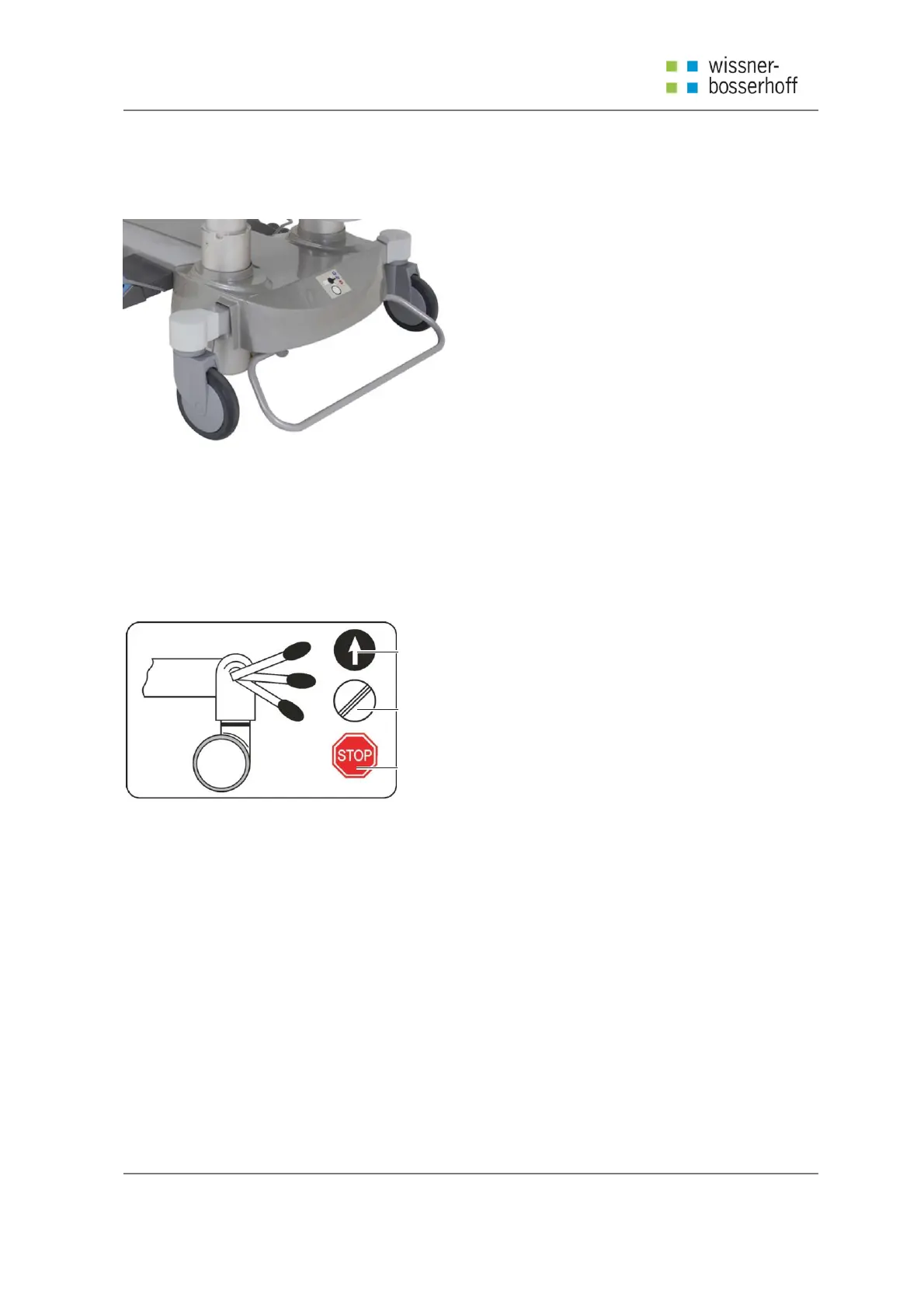

Fig 16 Castor Control Levers
The main control levers are located on the undercarriage on the foot end.
Functions:
 Braked castors (lowest lever position).
 Unbraked castors (medium lever position).
 Forward Movement. Bed moves straight ahead (upper lever position).
Castor control for bed with control levers
1
2
3
Fig. 17 Positions of Castor Control Lever
The control levers are located on both sides of the foot end.
Castor control lever positions:
1. Forward Movement
The front left castor is locked. The bed moves straight ahead. If the bed is equipped with a fifth castor, this
castor determines the direction of movement.
2. Unrestricted Movement
All castors are unlocked.
3. Braked
All castors are braked.
