Supervisor Panel
The supervisor panel is the main control element. The supervisor panel can be hung from the foot board if
required.
 When not in use, store the supervisor panel in the built-in linen holder below the foot end.
1 2 3 4 5 6 7 8 910 11 12 13 14
15
23 22 21 20 19 18 17 16

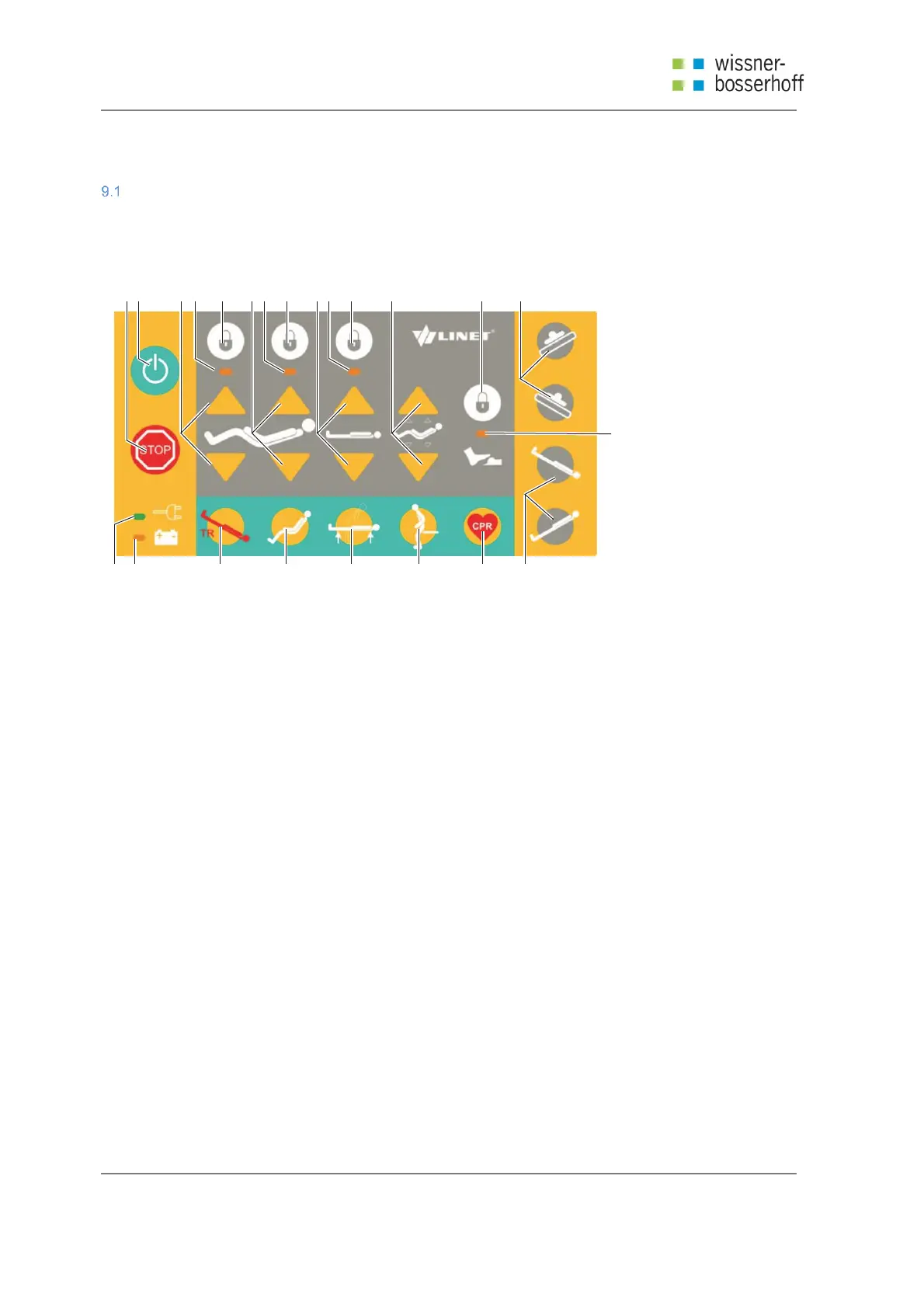

Fig 4 Overview of the Supervisor Control Panel
1. Central STOP Button
2. Activating GO Button
3. Thigh Rest Position Buttons
4. Thigh Rest Lock LED
5. Thigh Rest Lock Button
6. Backrest Position Buttons
7. Backrest Lock LED
8. Backrest Lock Button
9. Height Adjustment Buttons
10. Height Lock LED
11. Height Adjustment Lock Button
12. Auto-Contour Button
13. Foot Control Lock Button
14. Lateral Tilt Buttons
15. Foot Control Lock LED
16. Tilt Buttons
17. CPR (Resuscitation) Position Button
18. Mobilisation Position Button
19. Examination Position Button
20. Cardiac Chair Position Button
21. Trendelenburg Position Button
22. Battery Charge Status LED
23. Mains Power LED
