WITTUR MIDI - Drive Belt Maintenance; 13.1 Belt Tension

Door Drive
MIDI / SUPRA
Operating instructions
Blatt/ sheet D823MGB.028
Datum/
date 01.03.2004
Stand/
version B-18.12.2008
Geprüft/
approved WAT/MZE
EXCELLENCE IN COMPONENTS
Änderungen vorbehalten! Subject to change without notice!
13 Drive belt

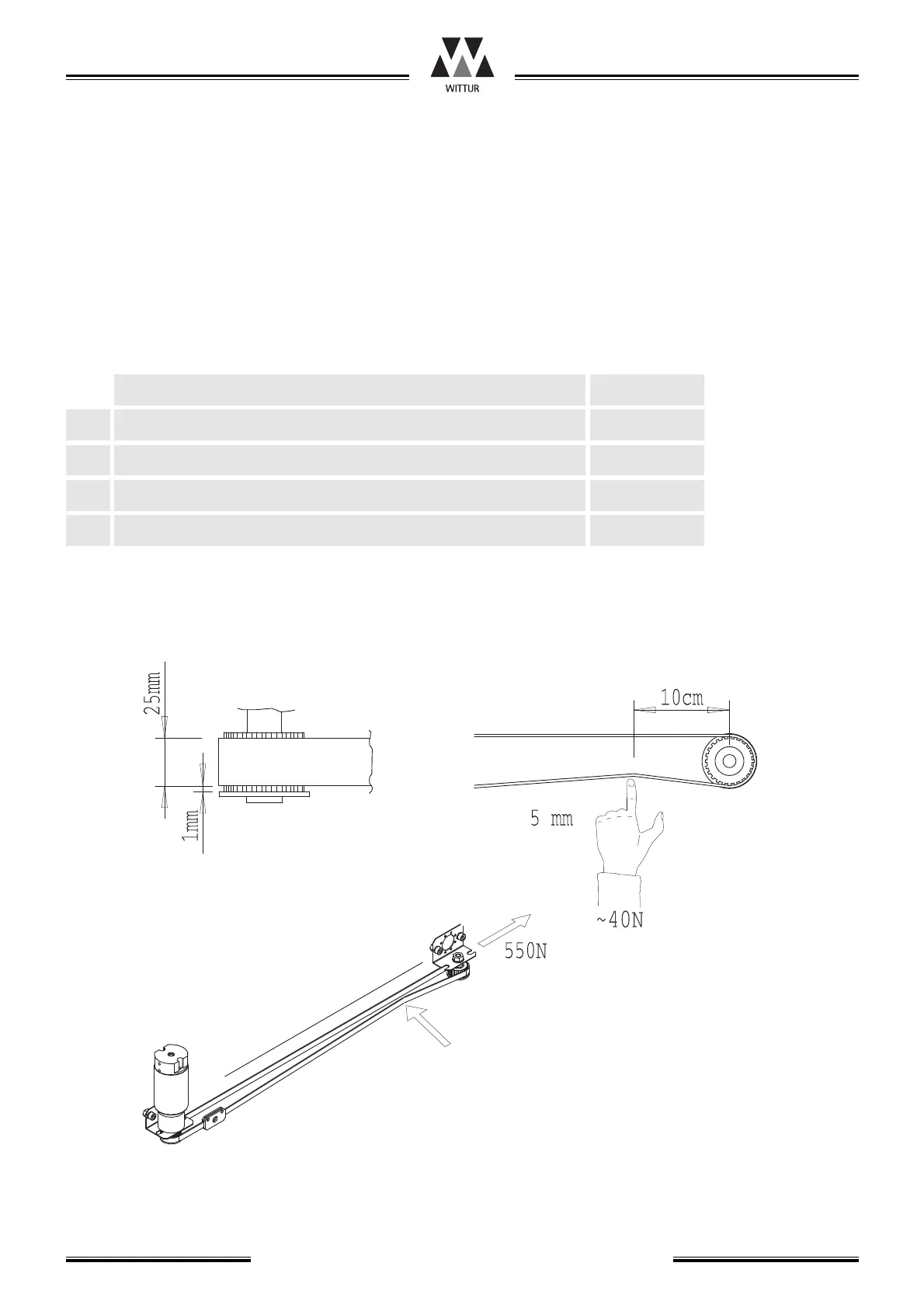

13.1 Belt tension
Should be free from dust
Should be in good condition
Push belt by the finger as in picture, belt must bend about
Belt must be above the toothed wheel edge to prevent noise
Standard Measure
5 mm
nom 1 mm
1
2
3
4
