WITTUR MIDI - 13.2 Belt Exchange

Door Drive
MIDI / SUPRA
Operating instructions
Blatt/ sheet D823MGB.029
Datum/
date 01.03.2004
Stand/
version B-18.12.2008
Geprüft/
approved WAT/MZE
EXCELLENCE IN COMPONENTS
Änderungen vorbehalten! Subject to change without notice!

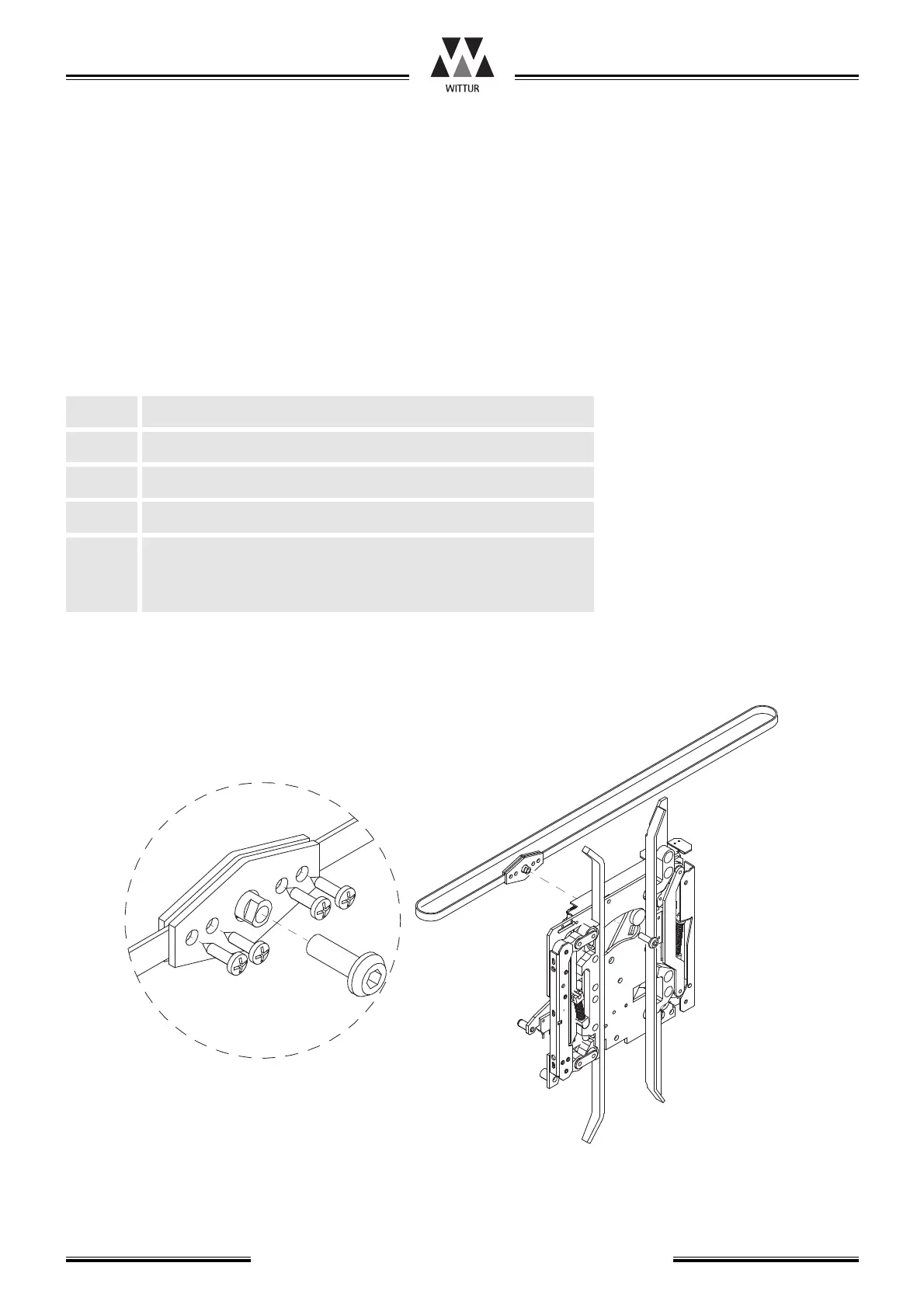

13.2 Belt exchange
Remove belt fixing (screws)
Release old belt from belt fixing plastic
Shorten the new belt according to old belt
Assemble the new belt. Loosen the fixing screws of the
diverting pulley and tighten the belt with a screw driver.
Action
1.
2.
3.
4.
Step
