the power supply.

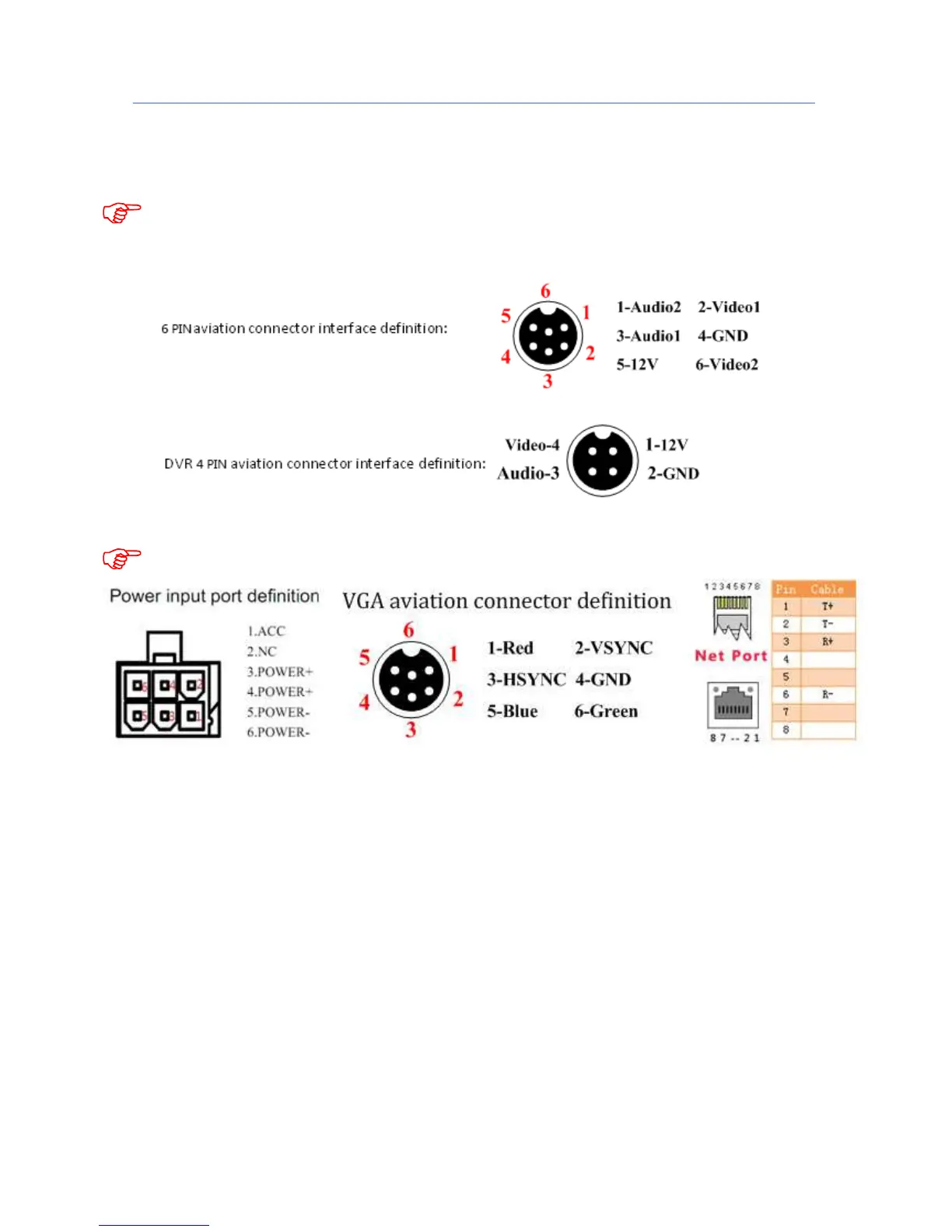

6.2 Audio/Video Interface Definition
The device support channel AV1~ AV4.The aviation joint can adapt severe environment in
the vehicles;
The power in the rear panel, IO and other PIN of the interface below:
Expansion interface PIN order is based on the direction of facing to the rear panel,please
refer to Figure 24PIN, 30PIN and 12PIN and 10PIN,4PIN, 2PIN detailed definitions are as below:.
