Wlan BOX WB100A - WAN Settings - Bridge Mode


12 VoIPNetworkServicesGmbH,Justus‐von‐Liebig‐Str.26,31535Neustadt 
 When the mode is Manual, no need to do other settings.
Keep Alive Redial Period Set the interval to send Keep Alive
On Demand Idle Time Set On demand transmission time interval
Port Bind Port bind is used for binding the service for different LAN ports and
SSIDs.

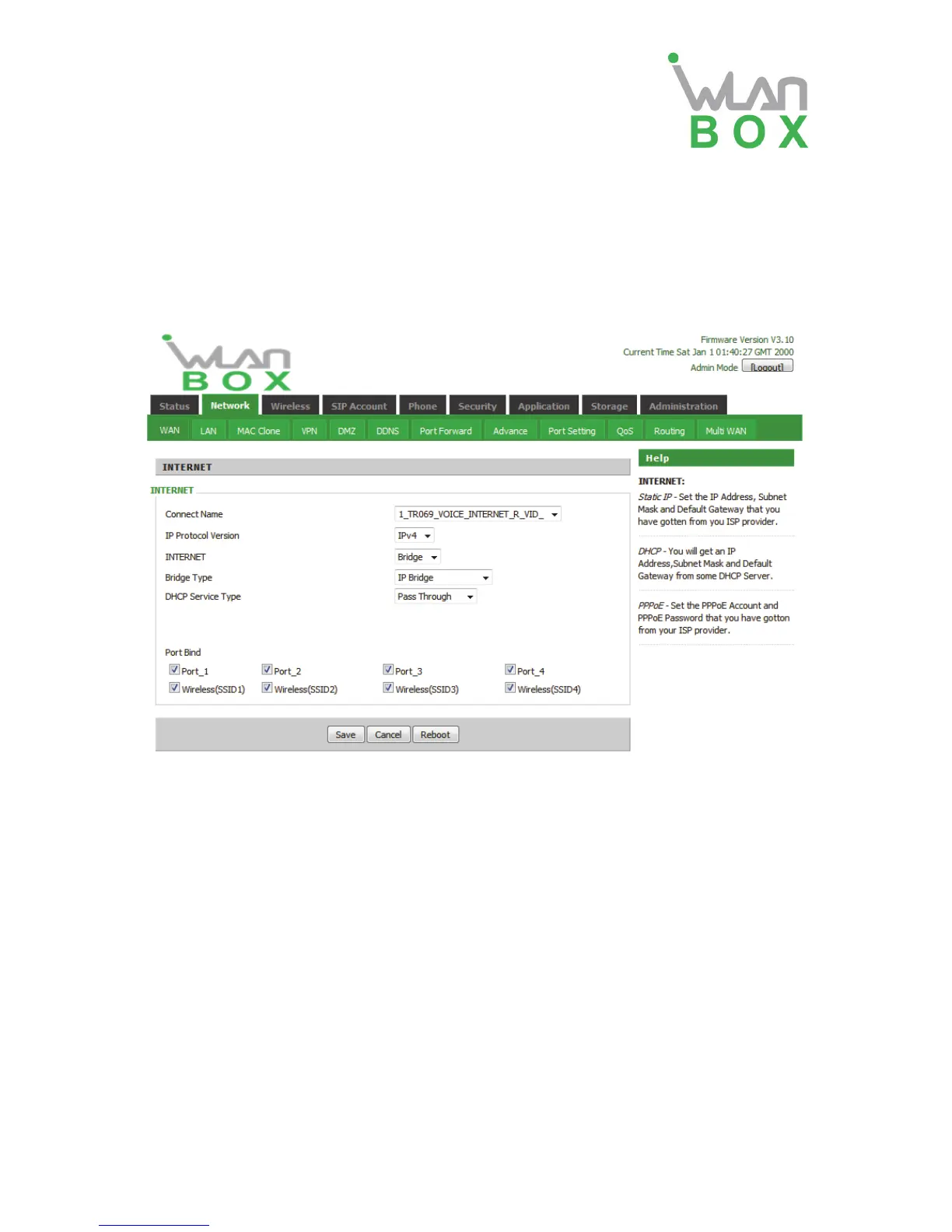

4）Bridge Mode
Field Name Description
Connect Name Use keywords to indicate the WAN1~WAN5 service mode (set
relevant parameters in the WAN port settings page)
IP Protocol Version Currently, WB100A only supports IPv4 mode.
INTERNET Bridge: If user make the option be Bridge mode, the PC which is
connected to WB100A’s LAN port use PPPoE to connect Internet.
Port Bind Port bind is used for binding the service for different LAN ports and
SSIDs.
