WMF 5000 S+ - Maintenance; Piping Diagram Information; Spare Part Ordering and Valve Information

Maintenance 35

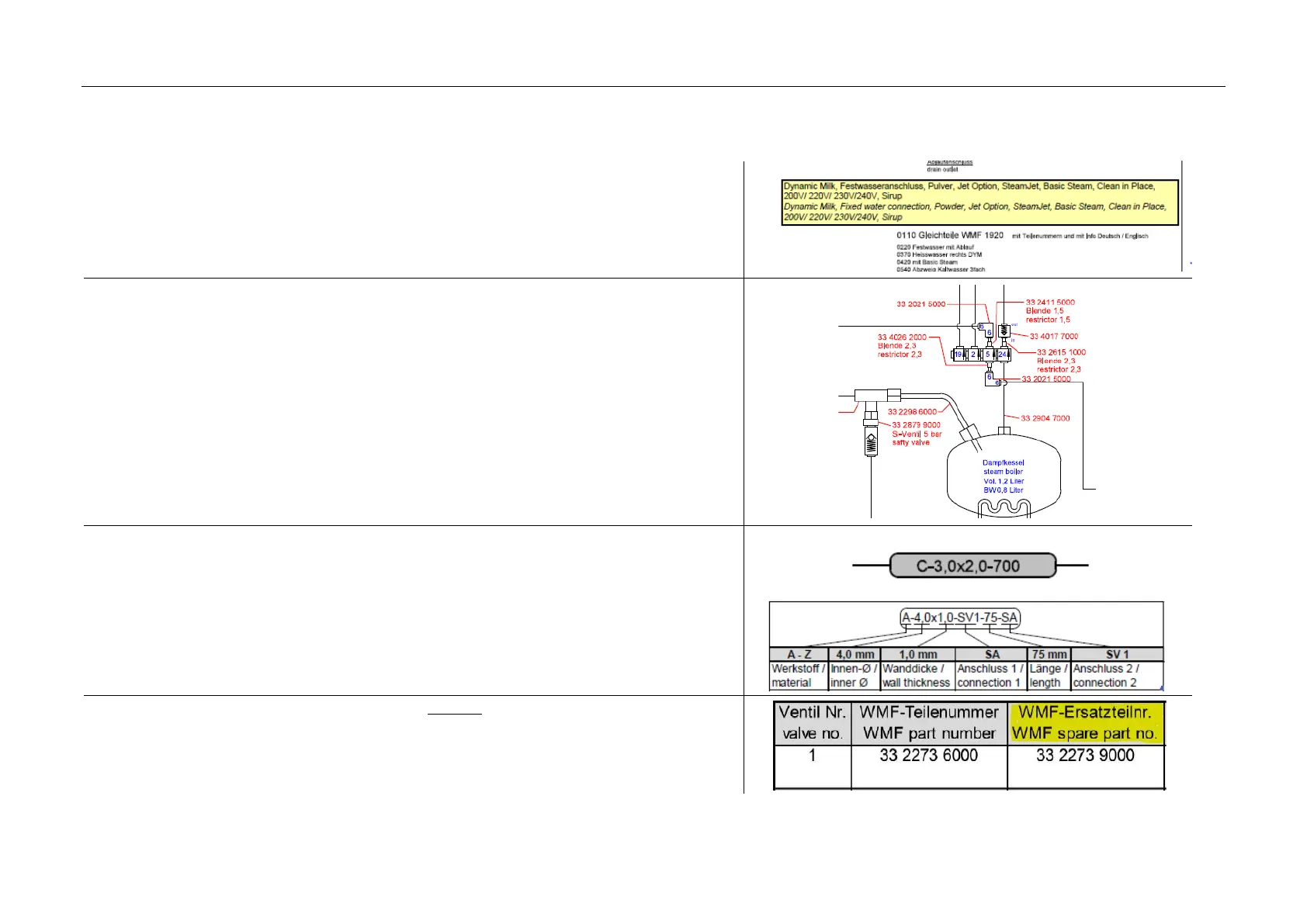

3 Notes on piping diagrams
 Various piping diagrams that show the most critical equipment features are available.
The equipment features are labelled in the piping diagrams.
 Part numbers for apertures, plug connectors, shaped hoses, etc. are listed directly in the
piping diagrams.
 The hoses are labelled with a type key in the piping diagrams.
The file „SEB_Legend_piping_diagram.pdf“ can be used to identify and order the
correct hose.
 Valves can only be ordered as a spare part without a solenoid, as typically only the
valve body needs to be replaced. If a solenoid is also needed, then it must be ordered
separately. Spare part numbers for solenoids are listed in the spare parts list.
