Mixer status page
10 Mixer status page
Up to 7 mixer modules can be connected to the WRS and operated via the BM-2. Each mixer module is controlled
via its own status page.

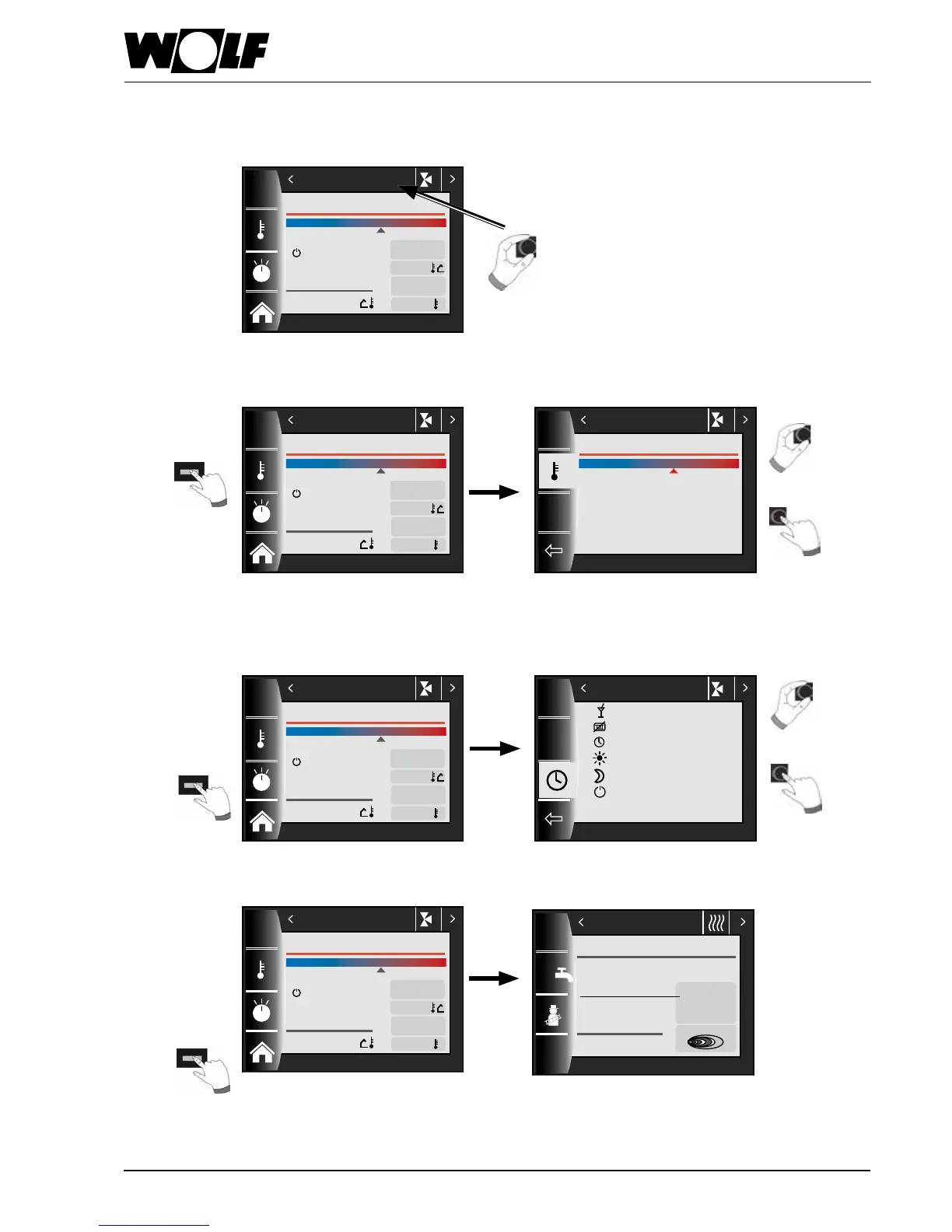

10.1 Changing the set mixer circuit temperature
(For description of temperature selection, see chapter)
10.2 Changing the mixer circuit operating mode
(For description of operating modes, see chapter)
Return to the home page
14:12 20.01.13
20.0
°C
Room
Mixer
OFF
-4, -3, -2, -1, 0, +1, +2, +3, +4
25.0 °C
Flow
16.0 °C
Outside
1
14:12 20.01.13
Mixer
+1
Change using rotary selector
Conrm with OK
-4, -3, -2, -1, 0, +1, +2, +3, +4
1
14:12 20.01.13
Mixer
Continue with rotary selector
Conrm with OK
Party function
Setback mode
Automatic mode
Heating mode
Economy mode
Standby
1
Key 3
Key 4
14:12
20.01.13
1.5 bar
25.2
°C
1 x
Pressure
Boiler temperature
Heating appliance
Heating mode
Burner ON
Change
Conrm
Key 2
Change
Conrm
Home page
