19.Overview of symbols
17.1 Symbols for the quick start keys

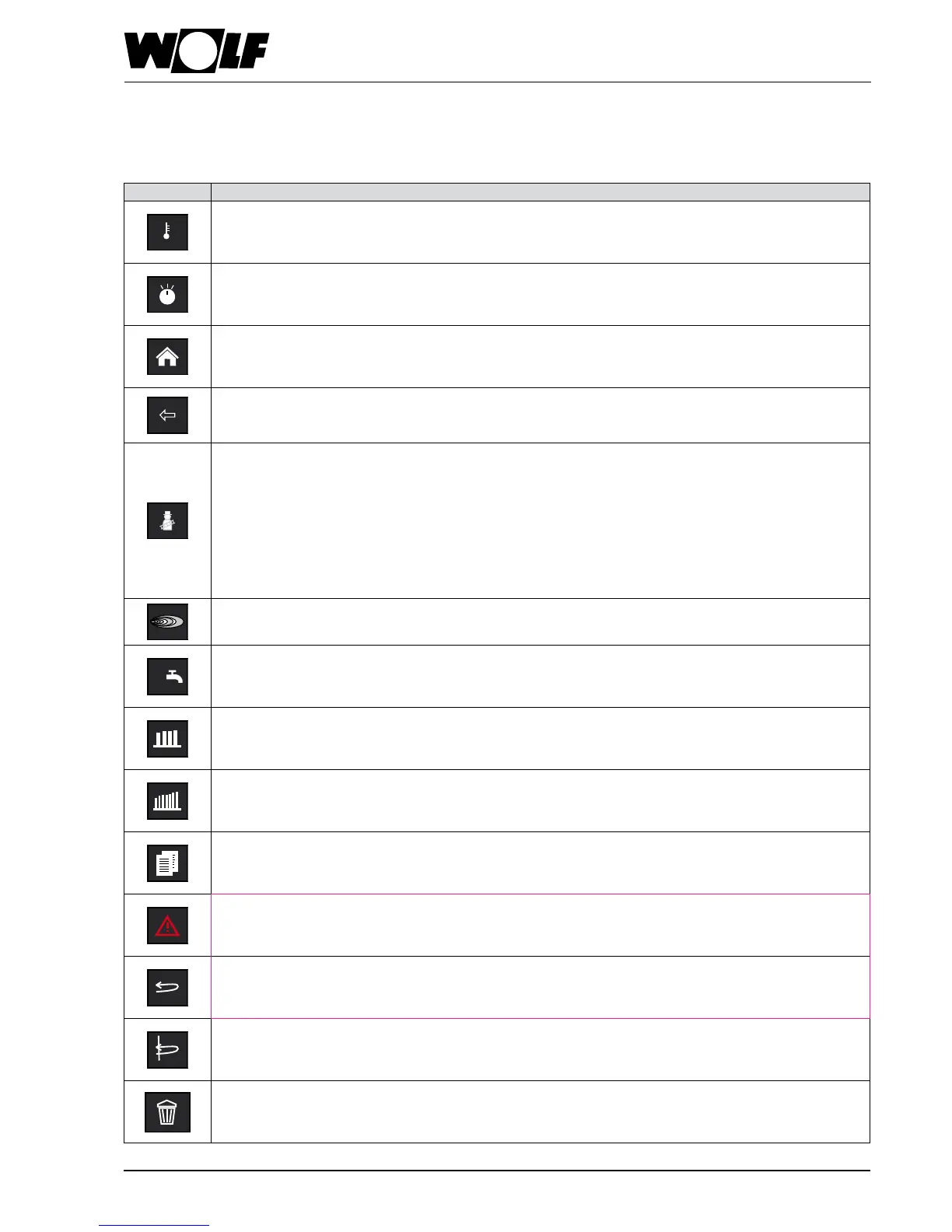

Symbol Function
The thermometer allows modication of the set temperature
The rotary selector allows modication of the operating mode
Press the home key to return to the start page
Press the arrow key to go back one step
Press the emissions test key to access emissions test mode
Emissions test mode is only necessary for the ue gas test.
The heating appliance provides maximum heating output in emissions test mode (full load operation). In full
load operation, the heating system is heated up to the maximum set temperature and the DHW cylinder is
heated up to the set DHW temperature.
When the heating appliance is in full load operation, the ue gas inspector can carry out the necessary ue gas
tests.
Emissions test mode terminates automatically either after 15 minutes or if the maximum ow temperature has
been exceeded.
You can only enable emissions test mode using the BM-2 programming unit if it is installed in the heating
appliance.
Emissions test mode can be switched from upper output (100 %) to lower output (20 %).
1 x
The special function 1x DHW bypasses the programmed switching times and heats up the DHW cylinder once,
for one hour, to the set DHW temperature.
Call up the annual solar yield
Call up the monthly solar yield
In time programs, copy a selected day to other days
Acknowledge fault key in the case of faults
Conrmation of screed drying
Reset the lter warning (only for the CWL Excellent)
Recycle bin, fault history is deleted
