Wolf BM-2 - Set and Actual Temperature Display

22 3064202_201602

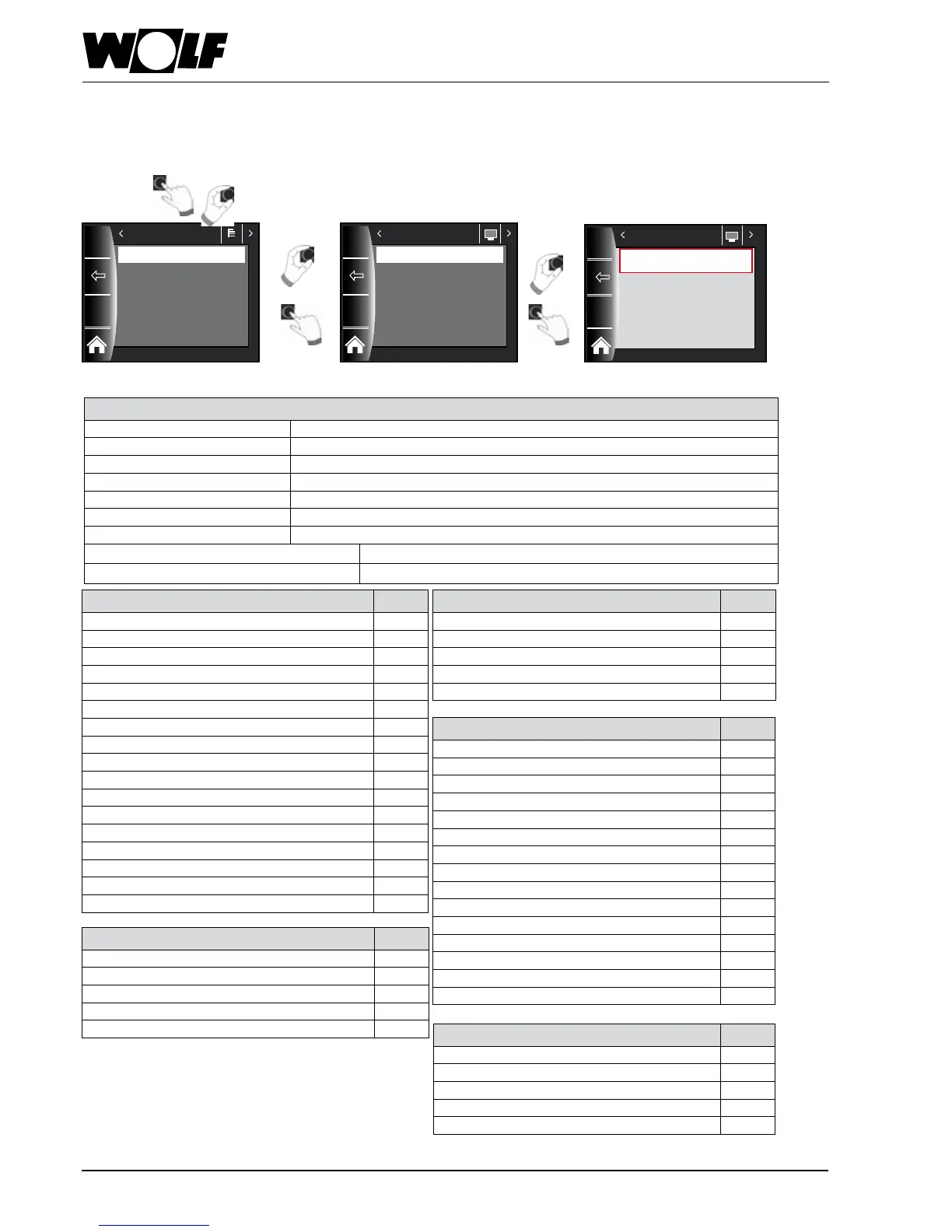

Set / actual temperature display
15 Set / actual temperature display
All values are displayed for heating appliances and modules that are connected (mixer module MM, cascade
module KM, solar module SM).
Displays vary depending on conguration and which modules are connected.
14:12 20.01.13
Main menu
Display
Default settings
Time programs
Contractor level
Entry
14:12 20.01.13
Display
Heating appliance
Cascade module
Mixer
Solar
14:12 20.01.13
Boiler temperature
Set 60 °C 42 °C
System pressure
Set 2.5bar 2.0 bar
Flue gas temperature
100 °C
Outside temperature
15 °C
Heating appliance
Overview of menu level displays
Heating appliance 1 displayed if heating appliance is installed
Heating appliance 2-4 displayed in conjunction with cascade module and if heating appliance 2-4 installed
Cascade module displayed if cascade module is installed
Mixer 1 displayed if mixer module 1 (MM) or cascade module (KM) is installed
Mixer 2-7 displayed if mixer module 2-7 (MM) is installed
Solar (SM1/SM2) displayed if solar module SM1 or SM2 is installed
Ventilation unit displayed if ventilation unit is installed
Average outside temperature displayed if outside sensor is installed
Non-average outside temperature displayed if outside sensor is installed
Displays, heating appliance 1-4 ACT.
Boiler temperature in °C
System pressure in bar
Current ue gas temperature in °C
Outside temperature in °C
Return temperature in °C
DHW temperature in °C
DHW ow rate in °C
DHW DFL (ow rate) in l/min
Input E1
Modulation level in %
Actual I/O value
ZHP speed
Burner starts
Burner hours run
Mains hours
Power ON count
HCM2 FW
Displays, cascade module ACT.
Flow temperature in °C
DHW temperature in °C
Buffer temperature in °C
Return temperature in °C
Header temperature in °C
Displays, mixer module 1-7 ACT.
Flow temperature in °C
DHW temperature in °C
Buffer temperature in °C
Return temperature in °C
Header temperature in °C
Displays, solar ACT.
Temperature, collector 1 °C
Temperature, collector 2 °C
Temperature, solar cylinder 1 °C
Temperature, solar cylinder 2 °C
Temperature, solar cylinder 3 °C
Temperature, buffer sensor °C
Temperature, return sensor °C
Hours run, pump 1
Hours run, pump 2
Hours run, pump 3
Current output
Total yield
Yield today
Yield this month
Yield this year
Displays, ventilation ACT.
Extract air in °C
Outside temp. in °C
Air ow rate m³/h
Bypass
Preheater coil
