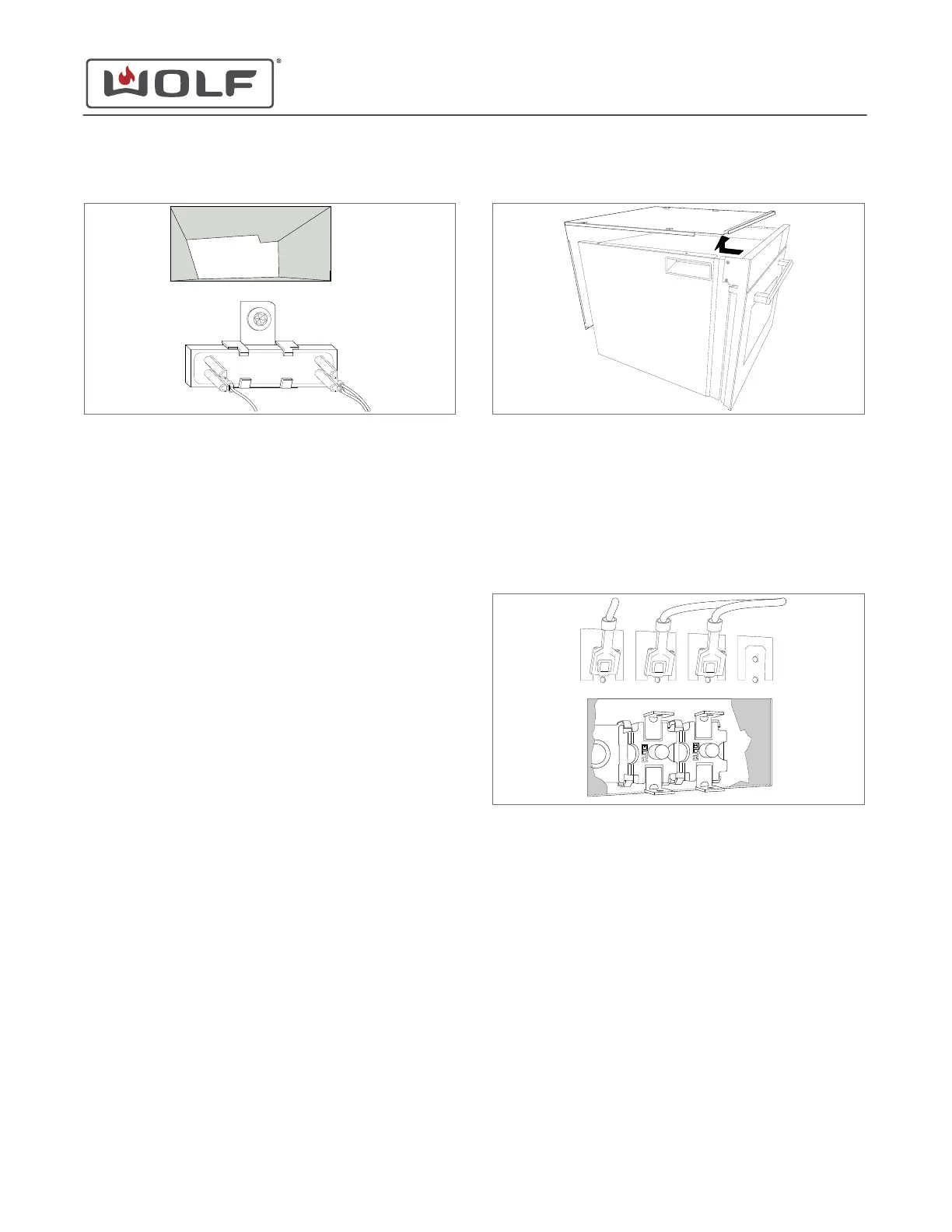

3 Remove the CSO resistor from the unit.
CSO RESISTOR INSTALLATION
Install the CSO Resistor
1 Place the CSO resistor onto the back of the unit.
2 Use a T-20 Torx bit to install the screw into the CSO resistor.
3 Connect the electrical connectors to the CSO resistor.
Install the Top Plate
1 Place the top plate on the unit.
2 Use a T-20 Torx bit to install the screws into the top plate.
THERMOSTAT 280C REMOVAL
To remove the thermostat 280C, first remove the top plate.
Remove the Top Plate
1 Use a T-20 Torx bit to remove the screws from the top and
back of the unit.
2
Remove the top plate from the unit.
Remove the Thermostat 280C
1 Disconnect the electrical connectors from the thermostat
280C.
2 Use a
9
/
32
" socket to remove the nuts from the thermostat
280C.
3 Remove the thermostat 280C from the unit.
THERMOSTAT 280C INSTALLATION
Install the Thermostat 280C
1 Place the thermostat 280C onto the studs on the back of
the unit.
2 Use a
9
/
32
" socket to install the nuts onto the thermostat
280C.
3 Connect the electrical connectors to the thermostat 280C.
Install the Top Plate
1 Place the top plate on the unit.
CSO (SWS #13543126)
Back Component Removal and Installation
REMOVE THE CSO RESISTOR (continued)
service.subzero.com
827703 REV B.1
73
