Wolf CSO24TE/S - Back Component Removal and Installation; Temperature Sensor Removal and Installation; CSO Resistor Removal and Installation

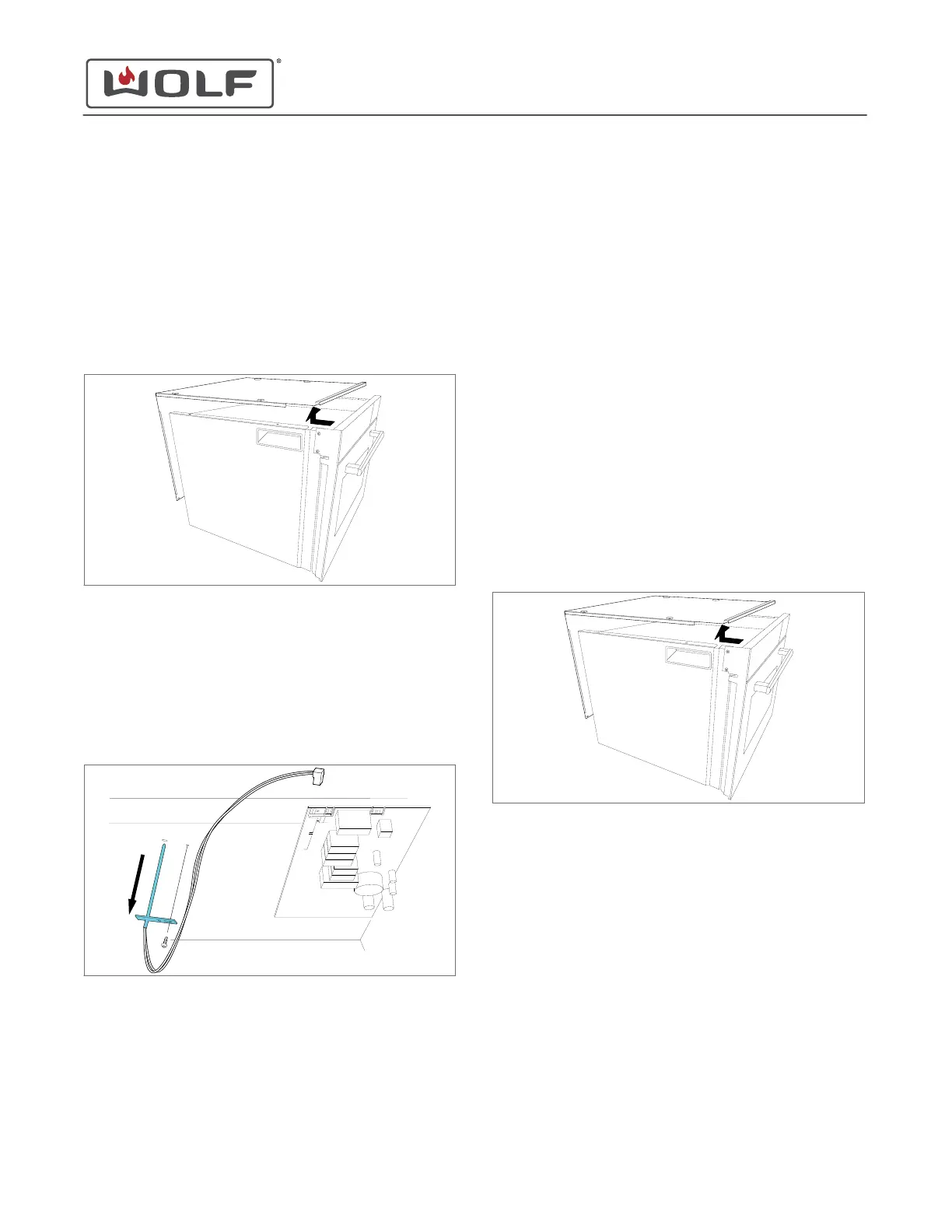

TEMPERATURE SENSOR REMOVAL
To remove the temperature sensor, first remove the top plate.
Remove the Top Plate
1 Use a T-20 Torx bit to remove the screws from the top and
back of the unit.
2 Remove the top plate from the unit.
Remove the Temperature Sensor
1 Disconnect the temperature sensor electrical connector
from the control board.
2 Use a T-20 Torx bit to remove the screw from the
temperature sensor.
3 Remove the temperature sensor from the unit.
TEMPERATURE SENSOR INSTALLATION
Install the Temperature Sensor
1 Insert the temperature sensor into the back of the unit.
2
Use a T-20 Torx bit to install the screw into the temperature
sensor.
3 Connect the temperature sensor electrical connector to the
control board.
Install the Top Plate
1 Place the top plate on the unit.
2 Use a T-20 Torx bit to install the screws into the top plate.
CSO RESISTOR REMOVAL
To remove the CSO resistor, first remove the top plate.
Remove the Top Plate
1 Use a T-20 Torx bit to remove the screws from the top and
back of the unit.
2 Remove the top plate from the unit.
Remove the CSO Resistor
1 Disconnect the electrical connector from the CSO resistor.
2 Use a T-20 Torx bit to remove the screw from the CSO
resistor.
CSO (SWS #13543126)
Back Component Removal and Installation
BACK COMPONENT REMOVAL AND INSTALLATION
