2 Remove the top plate from the unit.
Remove the Drain Pump Assembly
1 Disconnect the discharge hose to the water tank from the
drain pump assembly.
2 Disconnect the suction hose from the evaporator from the
drain pump assembly.
3 Use a flat-blade screwdriver to open the tabs on the drain
pump retainer.
4 Remove the drain pump assembly from the drain pump
retainer.
5 Disconnect the electrical connector from the drain pump
assembly.
6 Remove the drain pump assembly from the unit.

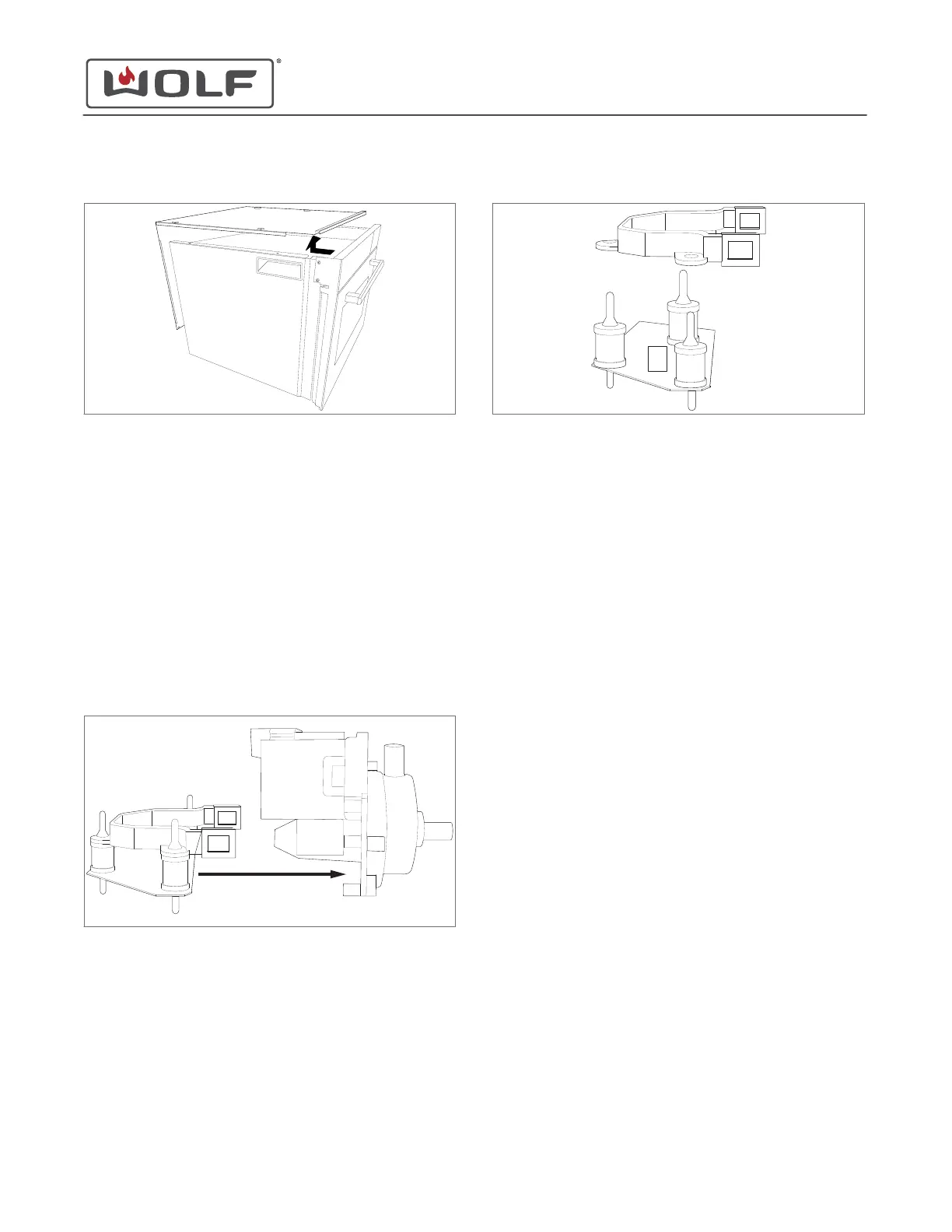

Remove the Drain Pump Retainer
1 Use a flat-blade screwdriver to separate the absorbers from
the drain pump retainer.
2
Remove the drain pump retainer from the unit.
DRAIN PUMP RETAINER INSTALLATION
Install the Drain Pump Retainer
1 Place the drain pump retainer onto the absorbers.
2 Pull the absorber nipple through the holes in the drain pump
retainer.
Install the Drain Pump Assembly
1 Connect the electrical connector to the drain pump
assembly.
2 Insert the drain pump assembly into the drain pump
retainer.
3 Connect the hose from the water tank to the drain pump
assembly discharge.
4 Connect the hose from the evaporator to the drain pump
suction.
Install the Top Plate
1 Place the top plate on the unit.
2 Use a T-20 Torx bit to install the screws into the top plate.
EVAPORATOR REMOVAL
To remove the evaporator, first remove the top plate.
Remove the Top Plate
1 Use a T-20 Torx bit to remove the screws from the top and
back of the unit.
CSO (SWS #13543126)
Back Component Removal and Installation
REMOVE THE TOP PLATE (continued)
service.subzero.com
827703 REV B.1
78
