Install the Food Probe Cover
1 Place the food probe seal onto the food probe cover.
2 Place the food probe cover over the food probe switch
threads.
3 Use an 11 mm socket to install the food probe nut.
Install the Rack Guide
1 Insert the rack guide rails into the rear baffle.
2 Place the indent in the rack guide over the rack guide stud.
3 Install the rack guide nut.
Install the Rack
1 Insert the rack between the rails of the rack guide.
2 Push the rack into the oven.

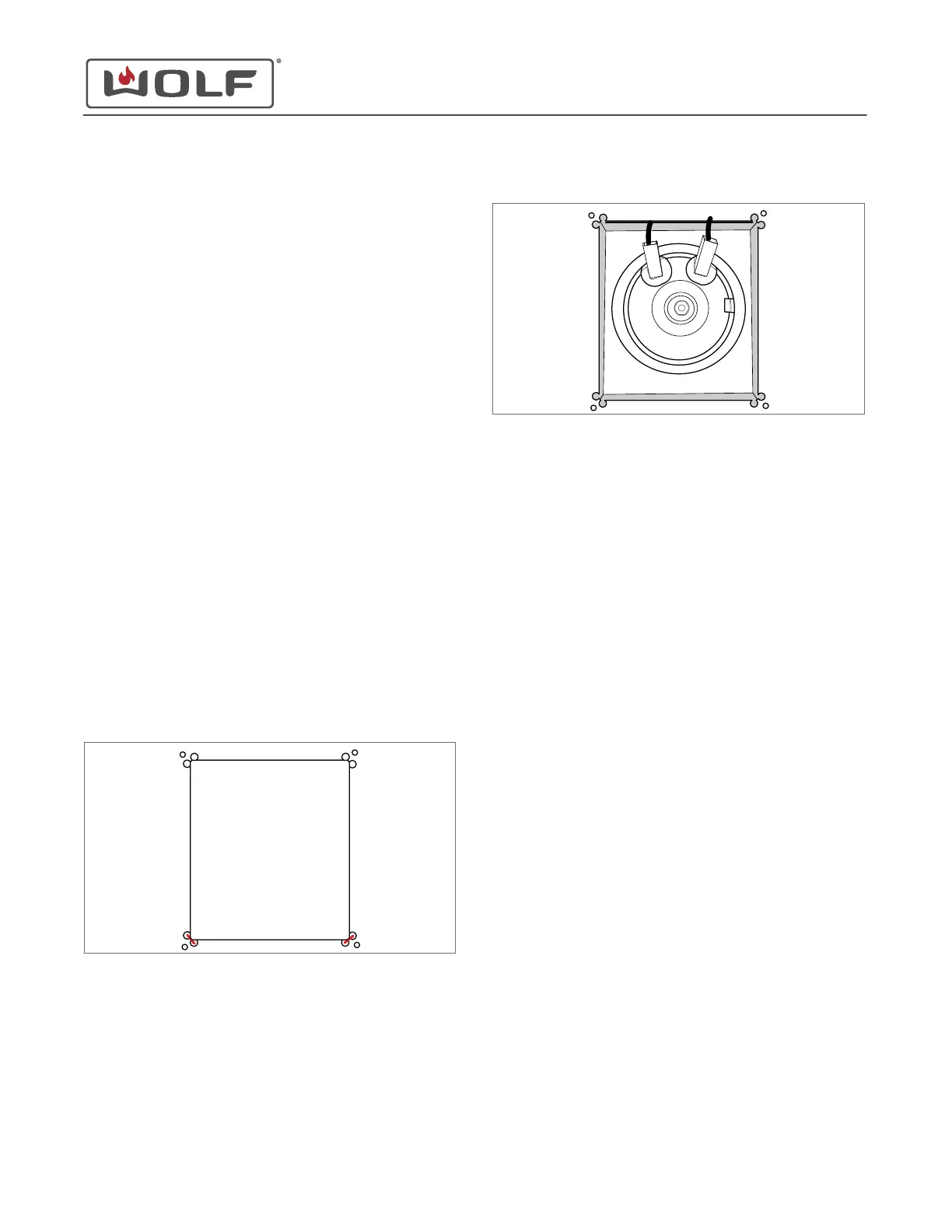

PTC HEATER REMOVAL
Remove the PTC Heater
1 Turn the unit upside down.
2 Use diagonal pliers to cut across the front joints of the PTC
heater cover.
3 Lift the front of the PTC heater cover and bend it toward the
back of the unit.
4 Cut the insulation out of the opening.
5 Disconnect the electrical wires from the PTC heater.
6 Use a
5
/
16
" socket or nut driver to remove the nut from the
PTC heater.
7
Remove the PTC heater from the unit.
PTC HEATER INSTALLATION
Install the PTC Heater
1 Place the PTC heater into the unit.
2 Use a
5
/
16
" socket or nut driver to install the nut onto the
PTC heater.
3 Install the insulation.
4 Bend the PTC heater cover back into place.
5 Cover the PTC heater cover with aluminum tape.
CSO (SWS #13543126)
Back Component Removal and Installation
Install the Food Probe Cover (continued)
service.subzero.com
827703 REV B.1
83
