4 Remove the broil element from the unit.
BROIL ELEMENT INSTALLATION
After installing the broil element, install:
1
Oven door

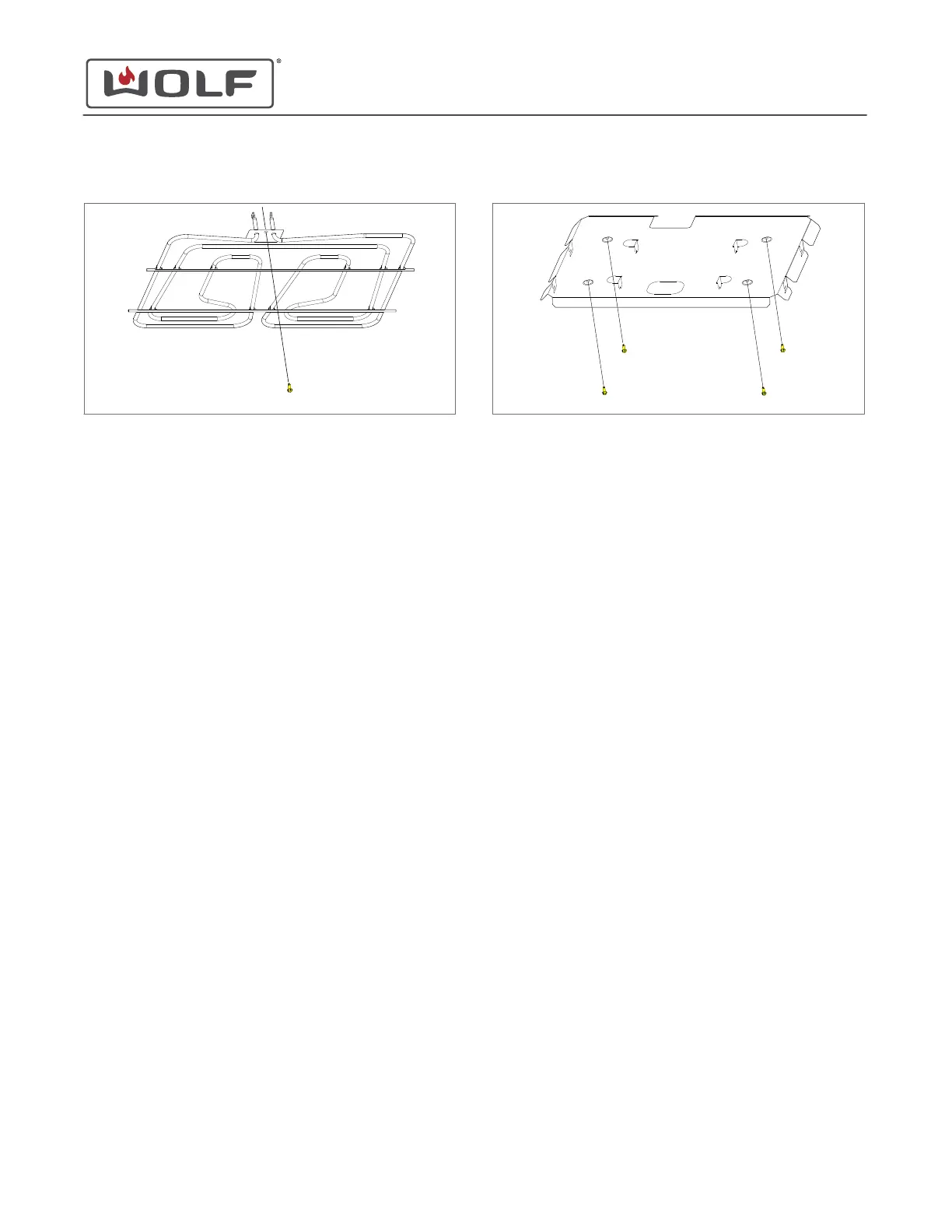

Install the Broil Element
1 Use needle-nose pliers to install the wire connectors onto
the broil element terminals.
2 Install the broil element into the oven cavity.
3 Use a T-20 Torx bit to install the mounting screw into the
broil element.
BROIL ELEMENT PANEL REMOVAL
To remove the broil element panel, first remove:
1
Oven door
2 Broil element
Remove the Broil Element Panel
1 Use a T-20 Torx bit to remove the mounting screws from the
broil element panel.
2 Pull the broil element panel down into the oven cavity.
3
Remove the broil element panel from the unit.
BROIL ELEMENT PANEL INSTALLATION
After installing the broil element, install:
1
Broil element
2 Oven door
Install the Broil Element Panel
1 Place the broil element panel into the oven cavity.
2 Use a T-20 Torx bit to install the mounting screws into the
broil element panel.
SMOKE CATALYST REMOVAL
To remove the smoke catalyst, first remove:
1
Oven door
2 Broil element
3 Broil element panel
Remove the Smoke Catalyst
1 Use a T-20 Torx bit to remove the mounting screws from the
smoke catalyst.
2 Pull the smoke catalyst down into the oven cavity.
E Series Oven
Cavity Component Removal and Installation
REMOVE THE BROIL ELEMENT (continued)
