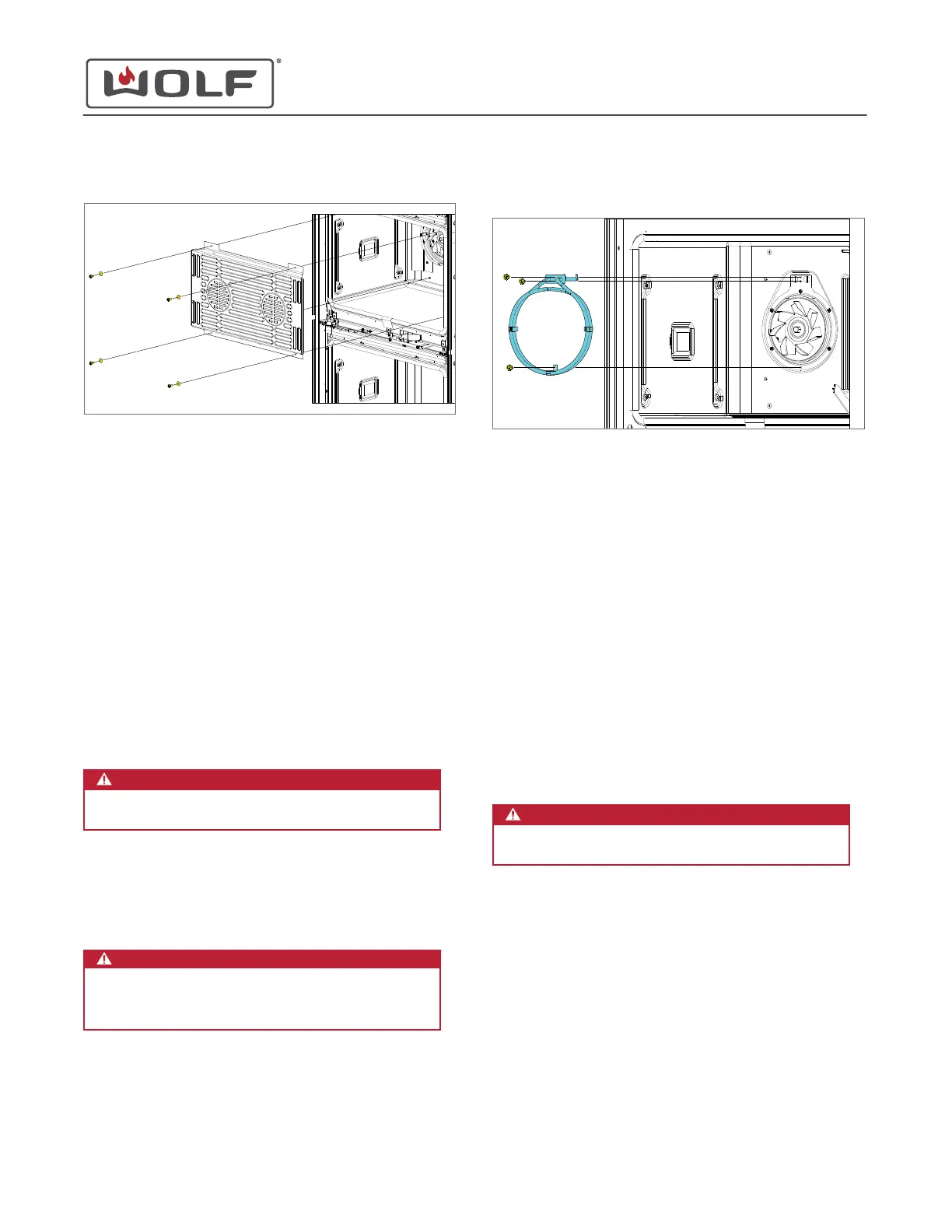

2 Pull the convection fan baffle forward from the unit.
CONVECTION FAN BAFFLE INSTALLATION
Install the Convection Fan Baffle
TIP: Use care not to damage the porcelain on the oven side
walls when installing the convection fan baffle.
1 Place the convection fan baffle against the back wall of the
oven.
2 Use a T-20 Torx bit to install the screws and mica washers
into the convection fan baffle. Do not over torque the
screws.
CONVECTION ELEMENT REMOVAL
WARNING
Disconnect the product from the power source
before starting this procedure.
To remove the convection element, first remove:
1
Convection fan baffle
Remove the Convection Element
CAUTION
Use caution when pulling the convection element
through the oven back wall. The wire connector can
come loose from the spade terminal. If that occurs,
the oven has to be pulled out to retrieve the wire.
1 Use a T-20 Torx bit to remove the convection element
mounting screws.
2 Pull the convection element forward, then tilt the convection
element up. Pull the convection element forward into the
cavity.
3
Use needle-nose pliers to disconnect the wire connectors
from the convection element terminals.
CONVECTION ELEMENT INSTALLATION
After installing the convection element, install:
1
Convection fan baffle
Install the Convection Element
1 Use needle-nose pliers to connect the wire connectors to
the convection element terminals.
2 Install the convection element into the oven cavity.
3 Use a T-20 Torx bit to install the convection element
mounting screws.
CONVECTION FAN ASSEMBLY REMOVAL
WARNING
Disconnect the product from the power source
before starting this procedure.
To remove the convect fan assembly, first remove:
1
Convection fan baffle
2
Convection element
Remove the Convection Fan Assembly
1 Use a T-20 Torx bit to remove the screws from the
convection fan assembly.
2 Pull the convection fan assembly into the oven cavity.
3 Disconnect the wire connectors from the convection fan.
E Series Oven
Cavity Component Removal and Installation
REMOVE THE CONVECTION FAN BAFFLE (continued)
service.subzero.com
829345 REVA
53
