86
3064458_201811
BalancedueinsideashaftwithhorizontalconnectingpipeDN60/100
Flue gas < 110 °C

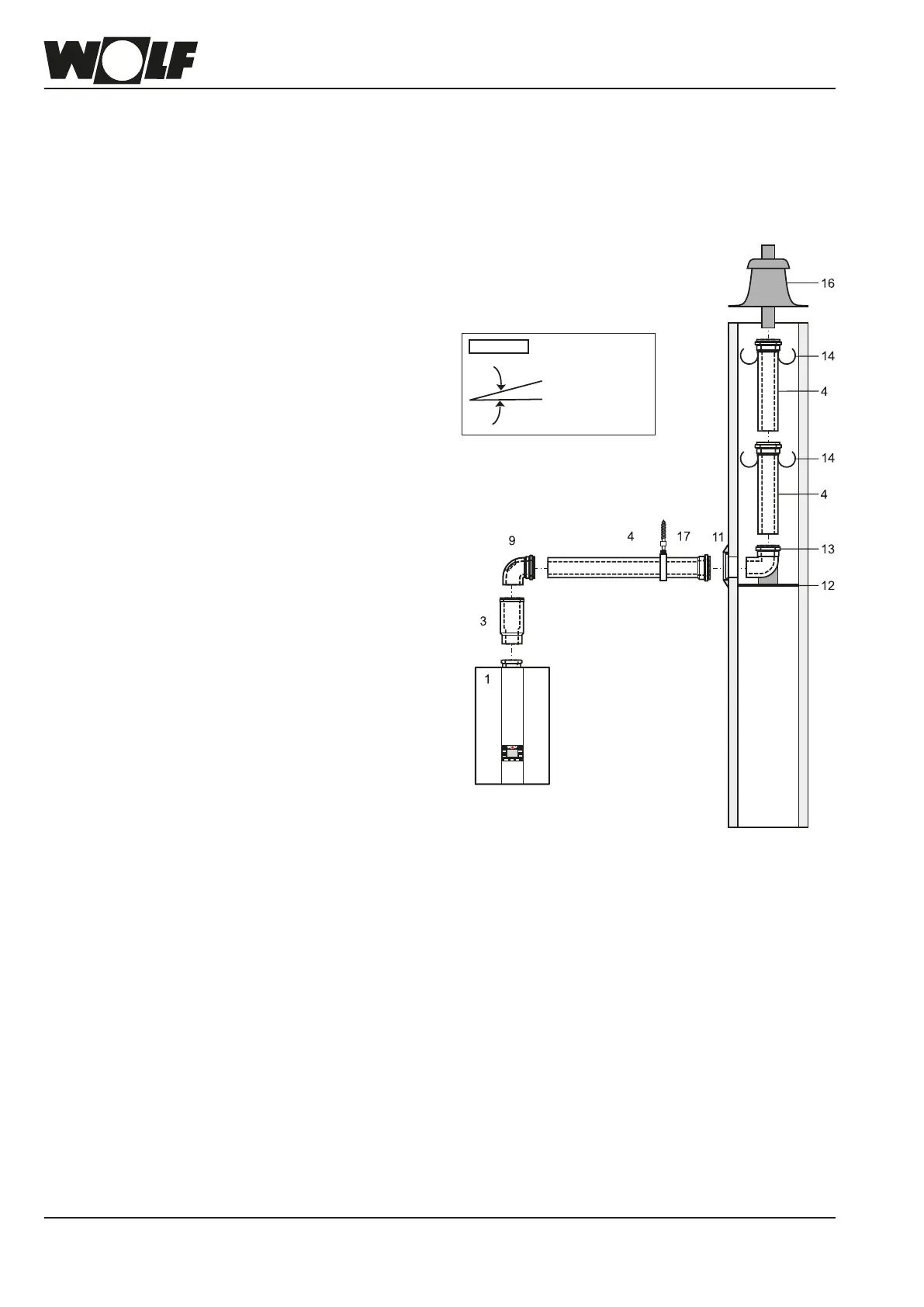

Installation example for balanced
ue/shaft
C33x
Install horizontal
pipe with > 3°
slope towards
boiler
Please note
1 Gas condensing boiler
3 Separator
(slide coupling)
if required
 4 Balancedue
DN60/100
500 mm
1000 mm
2000 mm
9 Inspection bend
11 Pipe collar
12 Support rail
13 Support bend 87° DN60/100
14 Spacer
16 Shaft cover with
UV resistant terminal
17 Spacer bracket
31.Technicalinformation,balancedue
