Wolf Ranges - Unit Blocking; Unit Leveling

Installation Information
RANGES && RRANGETOPS
3-3
Unit Blocking:
Wolf ranges can tip forward under certain load condi-
tions. The anti-tip wall bracket must be attached to the
wall behind the appliance so that it is directly above the
bottom rear brace when the range is fully installed.
(See Figure 3-2)

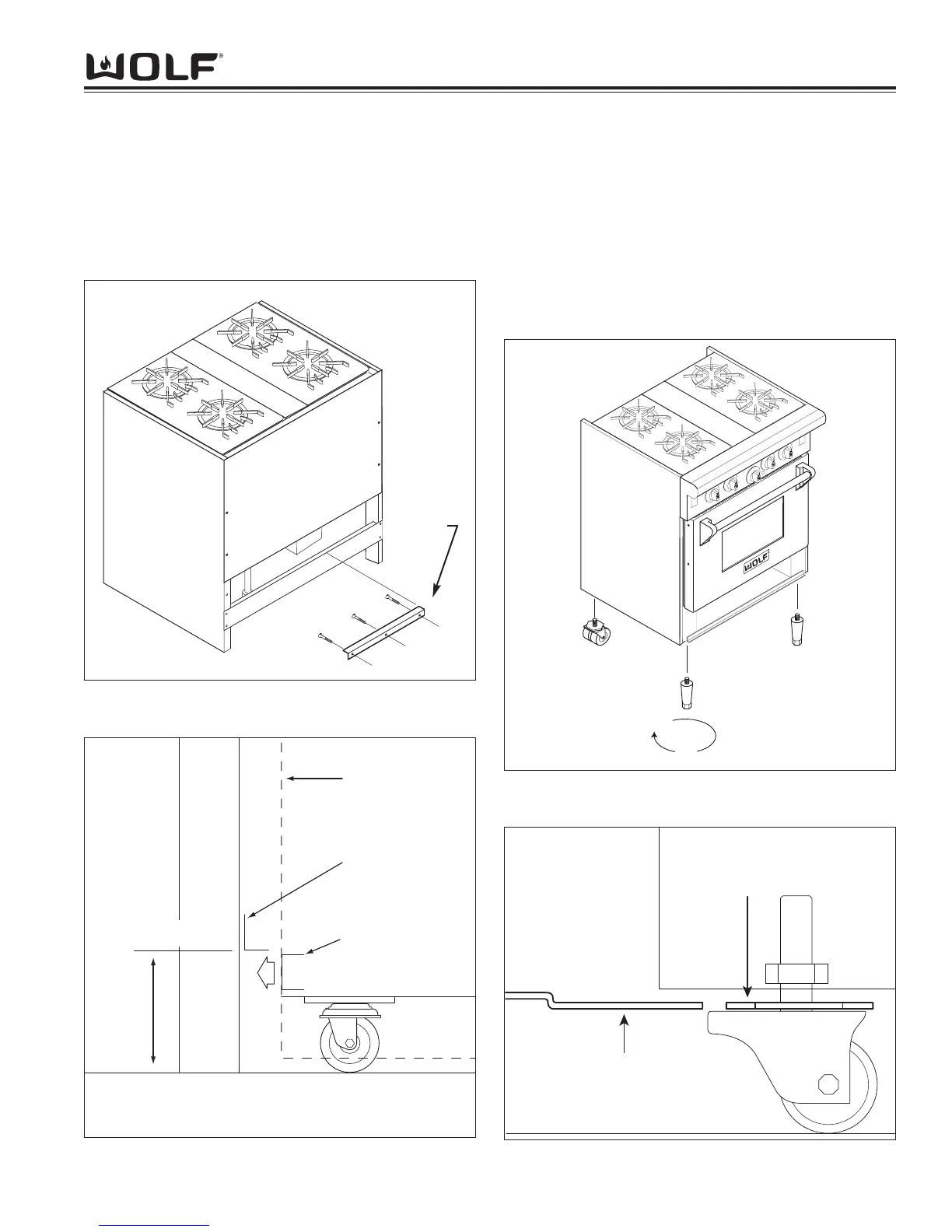

Figure 3-2. Anti-Tip Wall Bracket Installation
Anti-Tip
Bracket
Unit Leveling:
Wolf ranges can be leveled at the front by adjusting the
3" (76 mm) adjustable front legs. (See Figure 3-3)
In order to level the rear of the unit, use the caster
wrench (p/n 803239), to rotate the 2-5/16" (59 mm) nut
clockwise to raise or counterclockwise to lower the unit.
(See Figure 3-4)
Use shims to level a wolf rangetop.
UP
Figure 3-3. Unit Leveling, Front Leveling Leg
Wall
Floor
Side Panel
Anti-Tip
Bracket
Rear
Channel
Brace
6
1/2" min.
to floor
Figure 3-2. Anti-Tip Wall Bracket Installation
HEIGHT ADJUSMENT
WITH CASTER WRENCH
REAR CASTER
ADJUSTMENT NUT
Figure 3-4. Unit Leveling, Rear Caster Adjustment
