Technical Data
6-3
RANGES && RRANGETOPS
L1
Neutral
110 - 120 VAC Input
(96 VAC Minimum)
3.03 to 3.3 VAC
Valve Opens
When Glow Coil draws
3.3 to 3.6 amps
Valve Operates

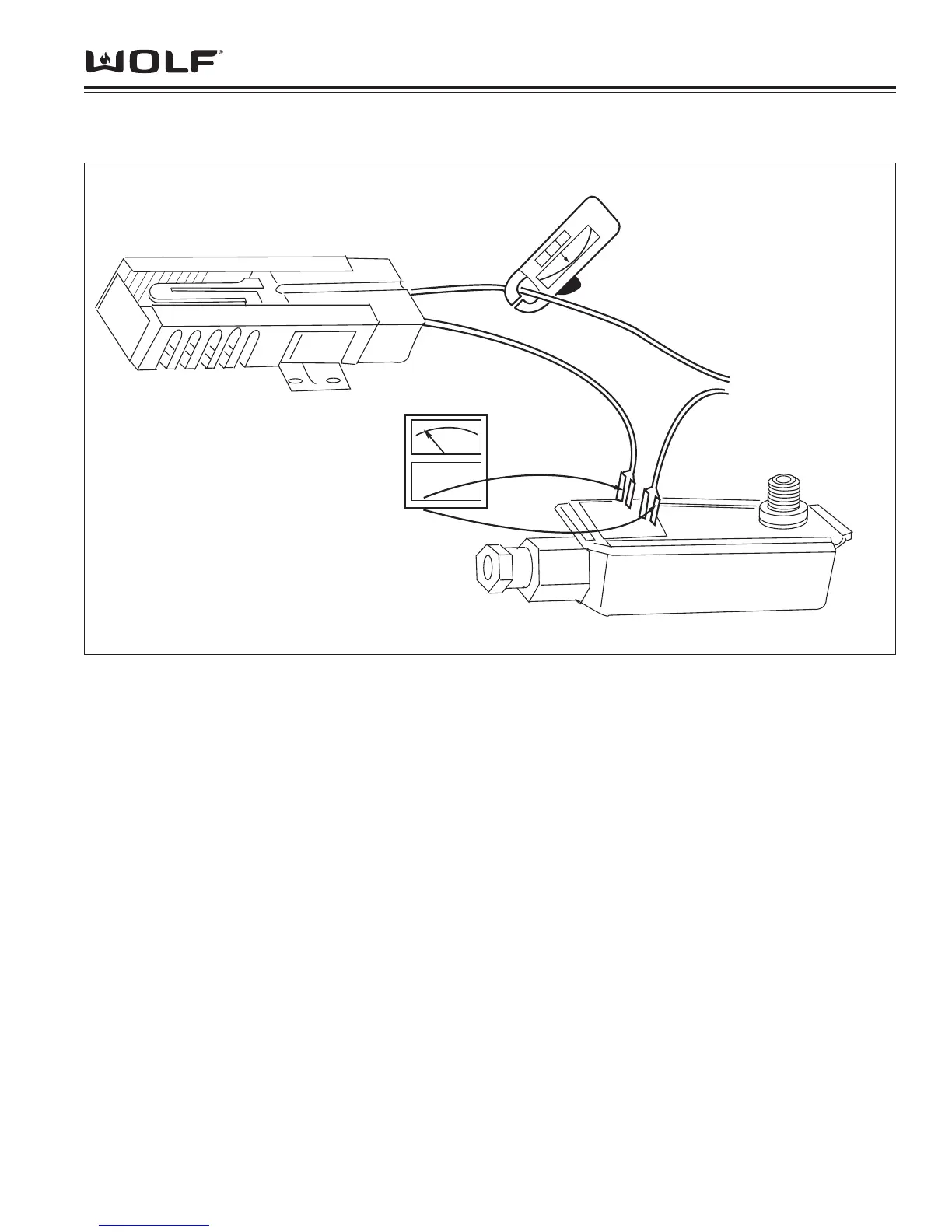

CHECKING OVEN IGNITION SYSTEM
