Setup
Initial setup of upper cutter
Setup doc050624 3-12
3

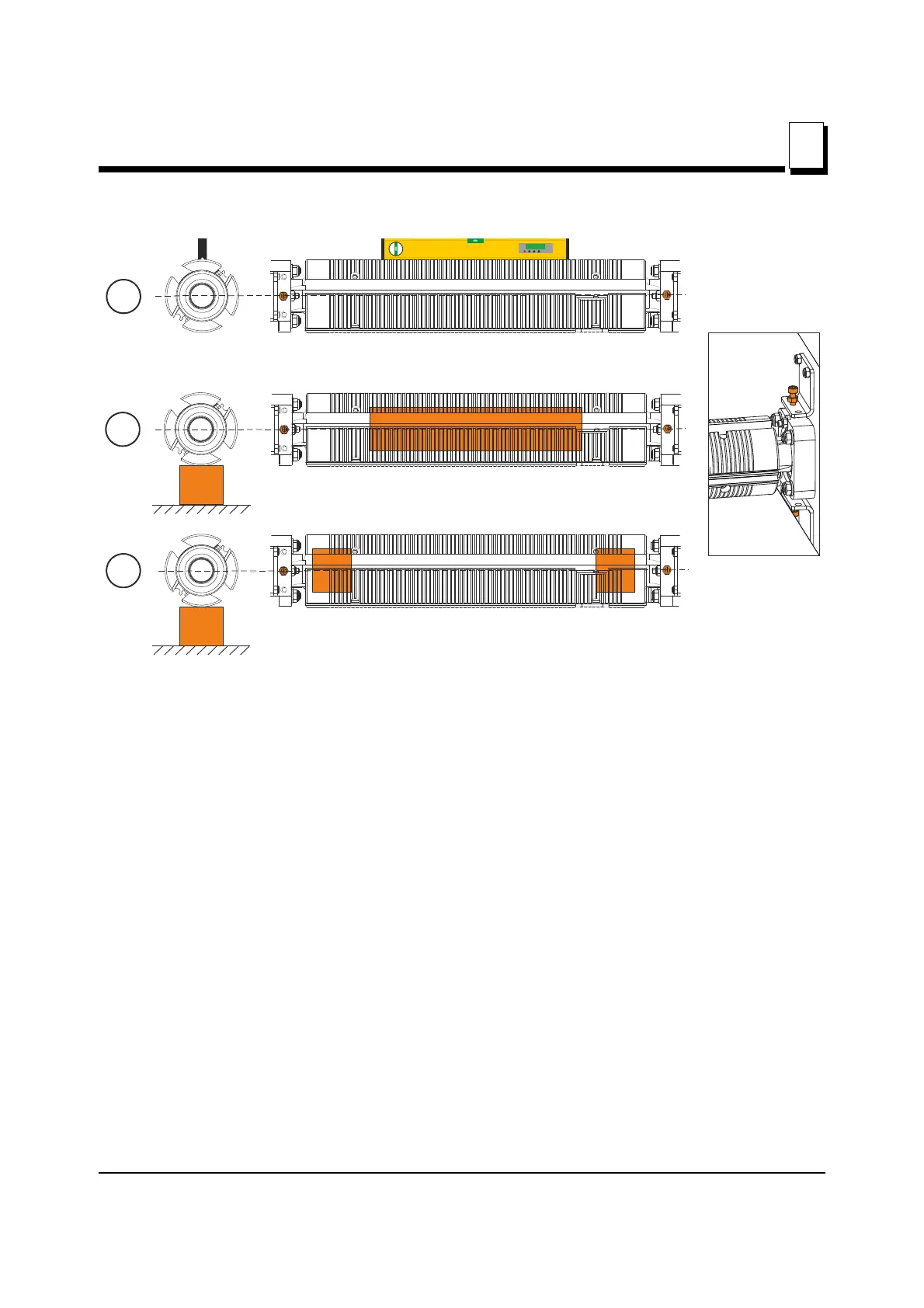

See Figure 3-8. The upper cutter adjusting methods
The upper horizontal cutter should be parallel to the machine table. This is set from fac-
tory, but the setting can become maladjusted by rough handling during transport or by the
machine being subject to impact.
- Loosen the screws of the bearing housings a couple of turns (four M8).
A. Adjustment with digital spirit level
- Calibration (set 0’ on cast iron table)
- Put digital spirit level along the upper cutter
- By adjusting the right or left holder, (using the upper and lower adjustment screws) set
the cutter parallel to the table.
FIG. 3-8
