SIDE CUTTER DESIGN
The side cutters have the following specifications:
 Spindle Axle: Diameter 30 mm
 Cutting Height: Maximum 3 15/16" (100 mm)
 Rotation Speed: 7000 rpm
 Cutting Depth: Maximum 1 3/32" (28 mm)
Specifications of the side cutter heads shipped with the machine:
 Diameter: Body 3 1/2" (90 mm)
 Height: Body 1 9/16" (40 mm)
 Planer Knives: HSS (High Speed Steel)
 Knives: Width 1 33/32" (50 mm)

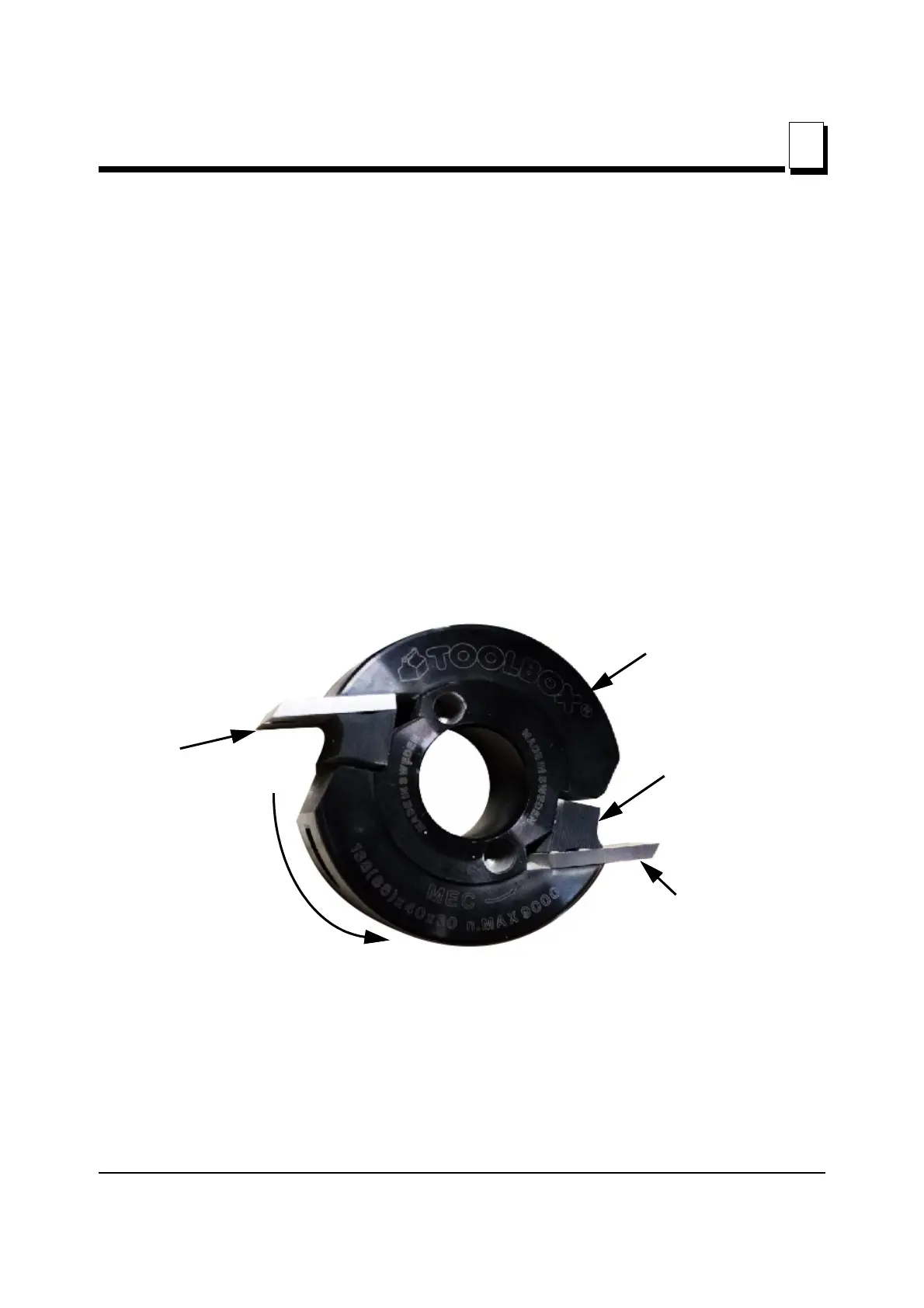

See Figure 3-13. Anatomy of a side cutter head.
FIG. 3-13
Cutter head
Gib
Knife
Cutting edge
Direction of rotation
