Setup
Side cutter setup
Setup doc050624 3-22
3
See Figure 3-16. Use the 30 mm and 12 mm open-end wrench in combination to loosen
the nut on the top of the shaft.
Loosen the nuts on the side cutters by screwing them in the same direction as their
respective cutter rotate.

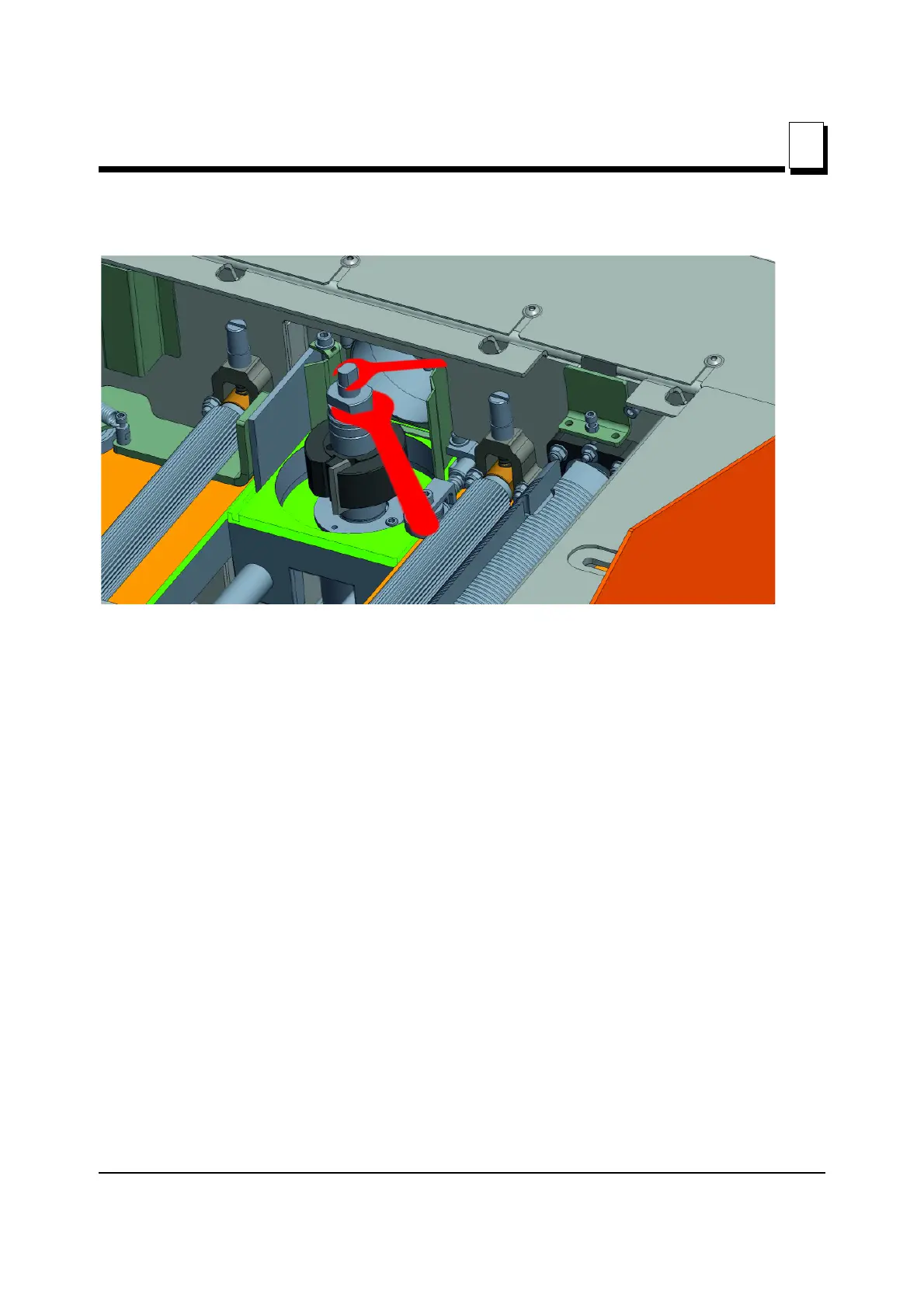

FIG. 3-16
NOTE: The lock nut and the
spindle of the movable side
cutter have left-hand threads.
