Maintenance
Lubrication points
5
5-3 doc050624 Maintenance

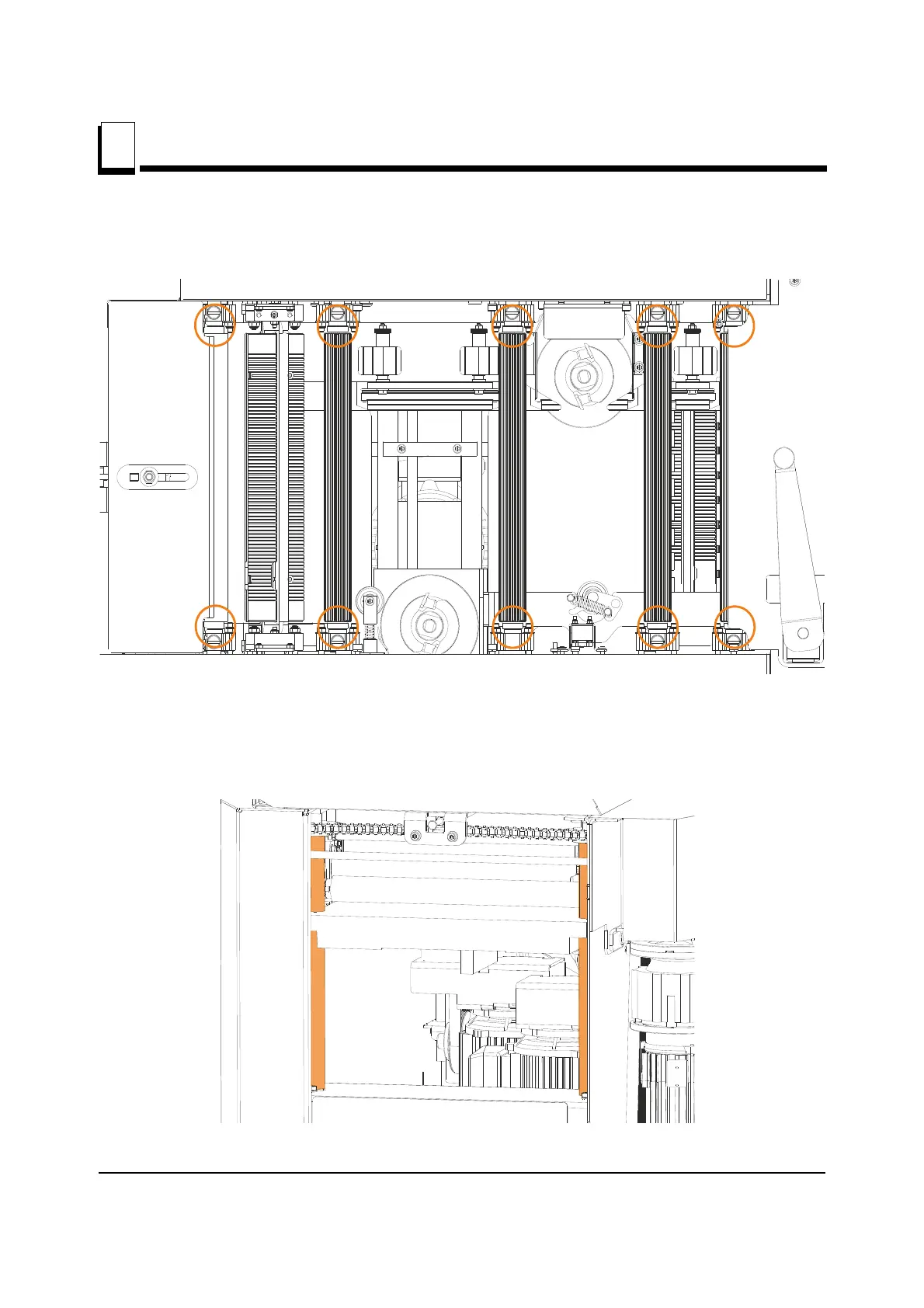

1. The bearing holders and springs of the feed rollers.
See Figure 5-1. Total of 10 - four steel rollers and one rubber
2. Lubricate the trapezoidal threaded bars.
See Figure 5-2. Located at all four corners
FIG. 5-1
FIG. 5-2
