Maintenance
Lubrication points
Maintenance doc050624 5-4
5
3. Lubricate the chain and sprockets for height adjusting the table. Check the tension of the
chain.)

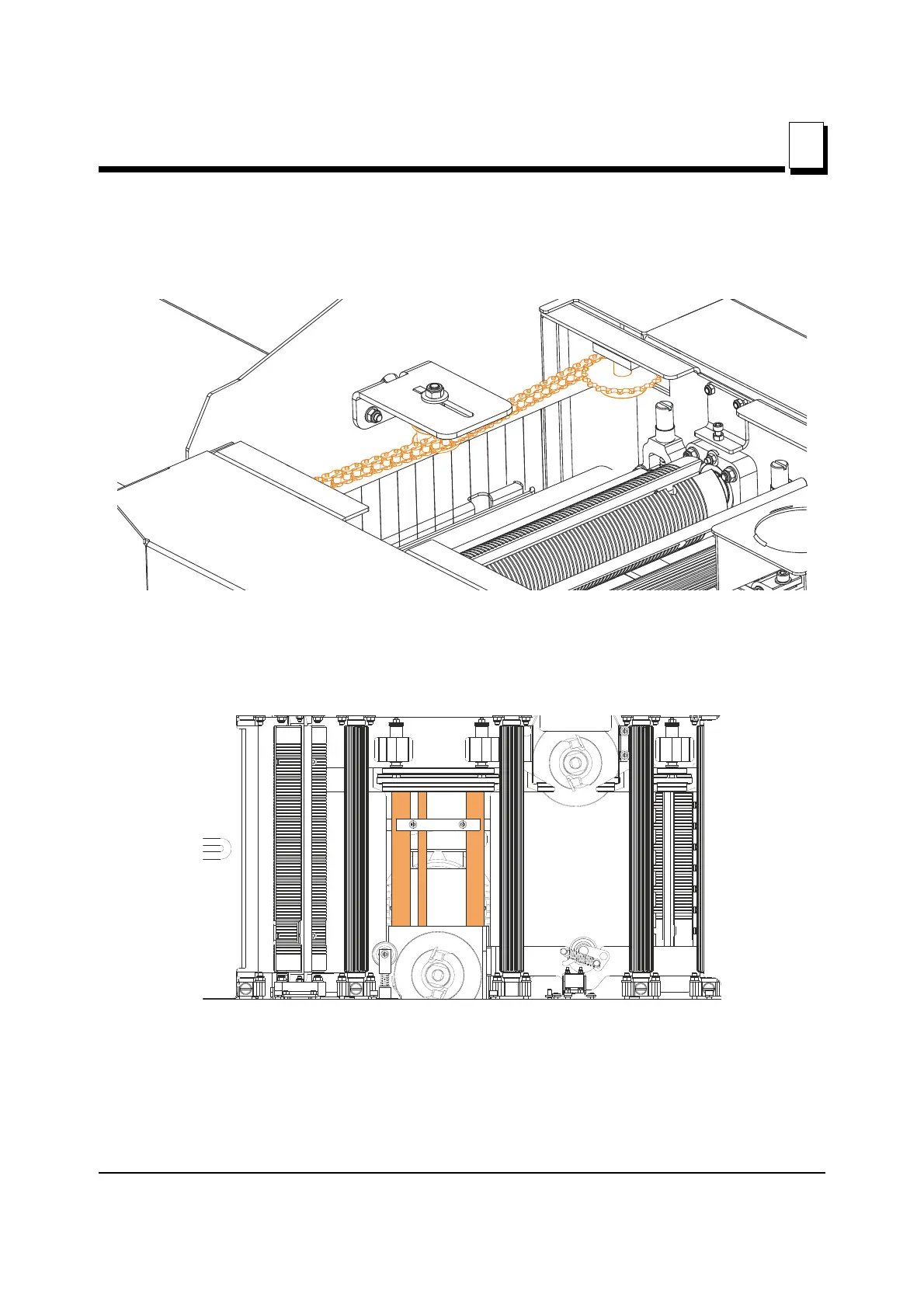

See Figure 5-3. View from bottom, looking up; outfeed side; cover panel removed.
4. The carriage of the movable cutter.
See Figure 5-4. Lubricate position bars and the threaded rod.
If the movable cutter is set in the same position for a long time (e.g. when producing long
series of the same moulding) it can rust. Set the cutter so that it is in its outermost and
innermost position one or two times every month, and lubricate the threaded bar of the
crank and the position bars of the carriage.
FIG. 5-3
FIG. 5-4
