Maintenance
Replacing movable vertical cutter belt
5
5-13 doc050624 Maintenance
13. Retighten the 4 mounting screws holding the pulley of the stationary vertical cutter.
14. Replace the cover plate and collection hose.
Replacing movable vertical cutter belt
This process is very similar to removing and replacing the stationary vertical cutter belt,
but with a few minor differences related to the exterior parts of the machine you need to
remove to gain access to the belt.

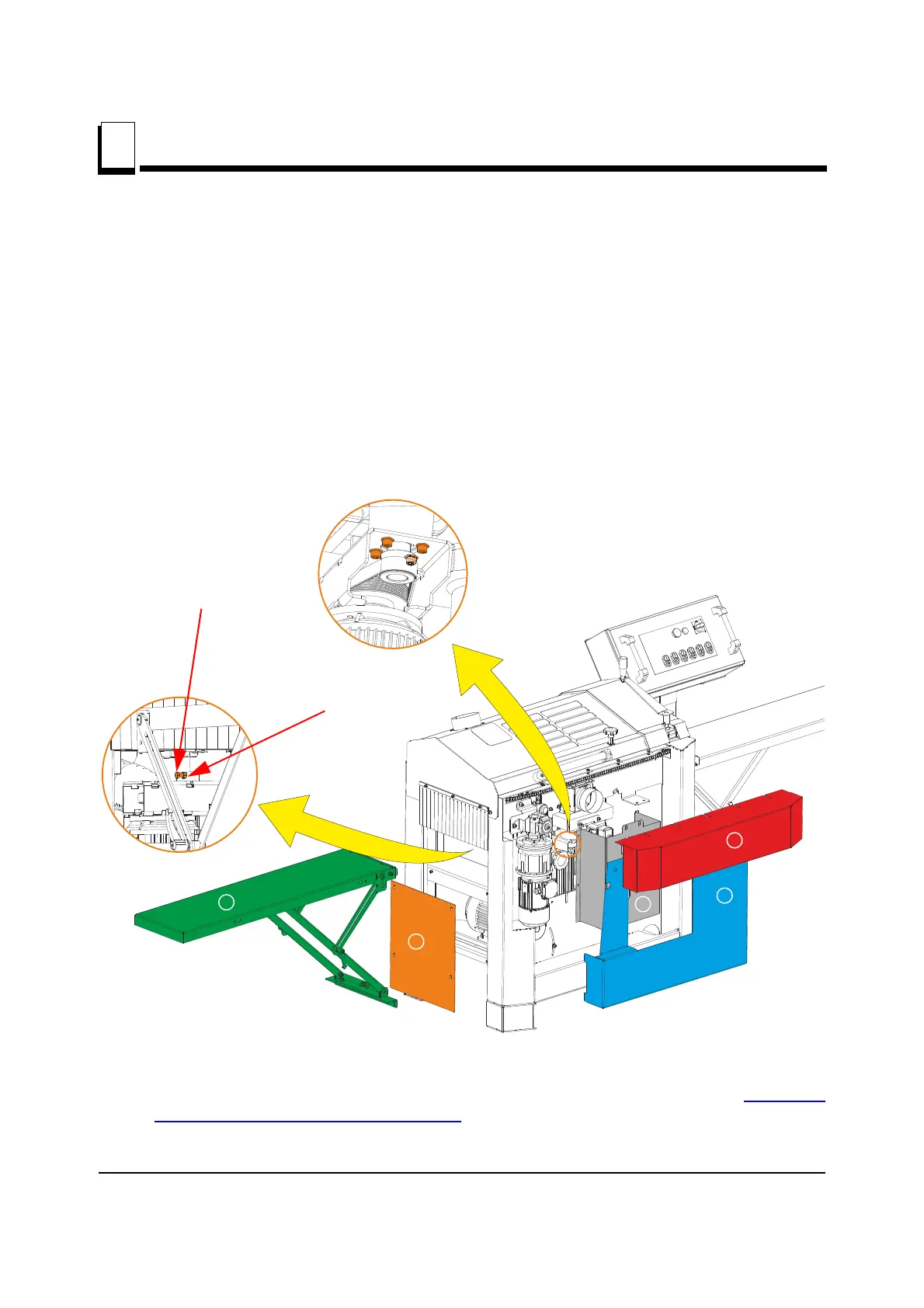

1. Remove covers as shown below (1, 2, 3, 4 and 5).
See Figure 5-13.
The remaining steps in this process are the same as explained in the section “Replacing
stationary vertical cutter belt” on page 11.
FIG. 5-13
Belt tension adjustment
bolt
locking nut
Belt tension adjustment
bolt
