PLANER/MOULDER SPECIFICATIONS
Specifications of the planer/moulder
PLANER/MOULDER SPECIFICATIONS doc050624 7-7
7

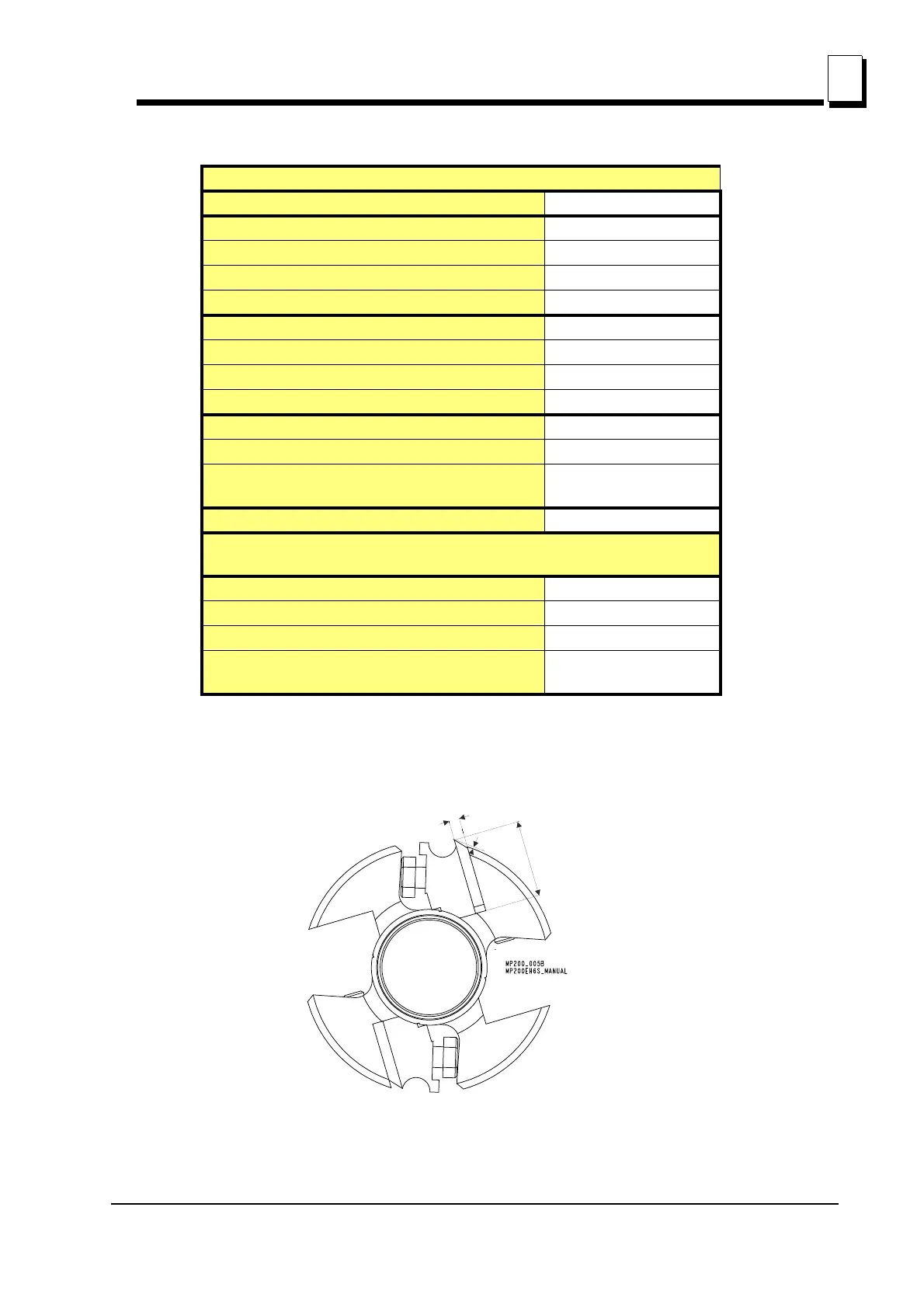

See table 7-7. Other specifications of the planer/moulder are listed below
See figure 7-2.
Cutter Specifications
Number of knife sockets 4
Upper cutter diameter 88 mm
Upper cutter width 410 mm
Upper cutter max. planning depth 5 mm
Upper cutter max. moulding depth 20 mm
Lower cutter diameter 72 mm
Lower cutter width 300 mm
Lower cutter max. planning depth 4 mm
Lower cutter max. moulding depth 10 mm
Side cutter diameter 93 mm
Maximum Height 100 mm
Side cutter max. planning depth
Side cutter max. moulding depth
5 mm
20mm
Cutter rotations 6000 r.p.m.
Knives Specifications
Straight knife height “A” 20 mm
Straight knife thickness “B” 3 mm
Straight knife protrusion “C” 1 mm
Pattern knife protrusion “C” depends on the knife
thickness (see table 7-8)
TABLE 7-7
FIG. 7-2
