Manual 35086 ProTech-GII with Math Functions
Woodward 179
Appendix A.
Modbus Ethernet Gateway Information
Introduction

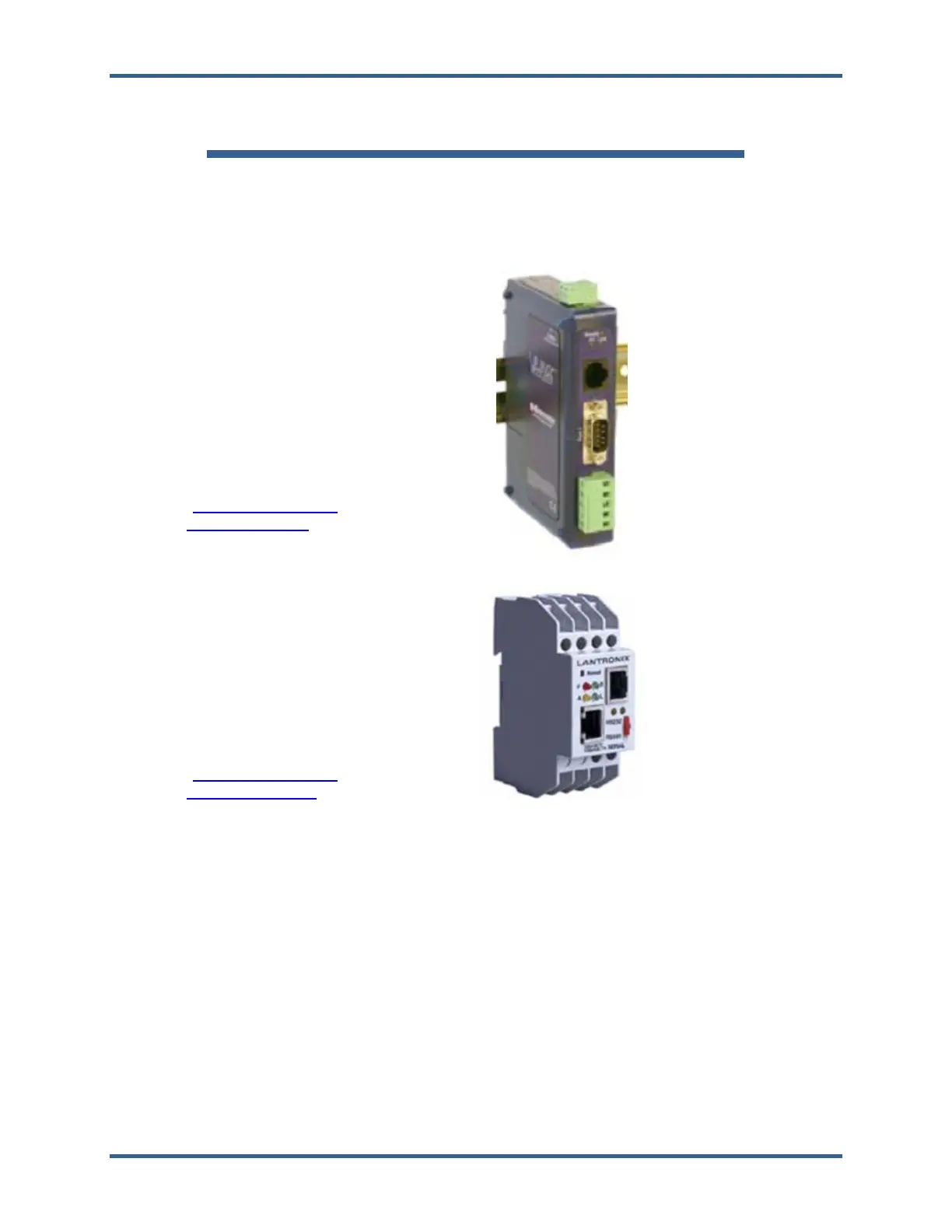

For customers who want to use Modbus Ethernet communications or put the ProTech on the plant
network, Woodward recommends the following Ethernet-to-Serial Gateways:
1. B&B Electronics –
Model: MESR901
Serial: RS-232, RS-485, or RS-422
Power Input: 10–48 Vdc
B&B Electronics Mfg. Co.
707 Dayton Road
P.O. Box 1040
Ottawa, IL 61350
USA
Phone: (815) 433-5100 (8-5:00 CST, M-F)
Email: orders@bb-elec.com
Web: www.bb-elec.com
2. Lantronix –
Model: UDS100-Xpress DR IAP
Serial: RS-232, RS-485, or RS-422
Power Input: 9–30 Vdc, 9–24 Vac
Lantronix
15353 Barranca Parkway
Irvine, CA 92618
USA
Phone: 1-800-422-7055
Email: sales@lantronix.com
Web: www.lantronix.com
B&B Electronics Setup
Below you will find the wiring setup and software configuration for the MESR901. Remember that the
pictures below are for reference—you will need to set up the serial configuration to match the settings you
chose in the ProTech. When multi-dropping the three modules together using RS-485/422, you will need
to assign each module a unique node address, which can be found on the front-panel Modbus
configuration screen on the ProTech.
