Manual 35086 ProTech-GII with Math Functions
Woodward 40
Figures 2-8 and 2-9 show the control wiring diagrams for the ProTech-GII system. Refer to Figure 2-10 for
proper routing and stress relief of field wiring entering the ProTech-GII system. Wire tie-wrap fasteners
are provided on each module to assist with I/O wire routing and installation.
When wiring to each ProTech module, in order to allow hot
replacement of a module in the event of a failure, it is important to
make connections such that any single module’s terminal blocks and
power supplies can be completely disconnected without affecting the
rest of the system.

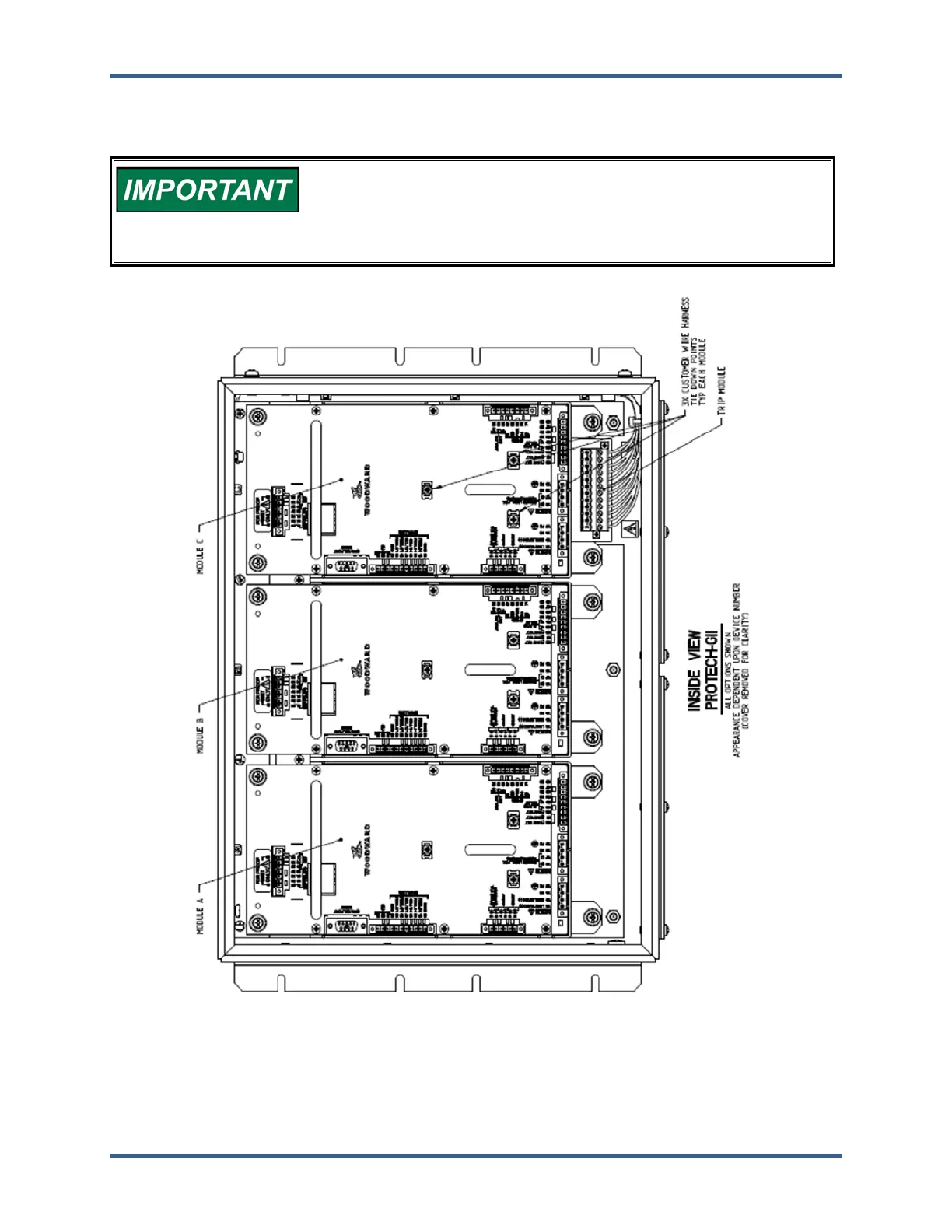

Figure 2-7. Inside View of ProTech-GII
