Installation:

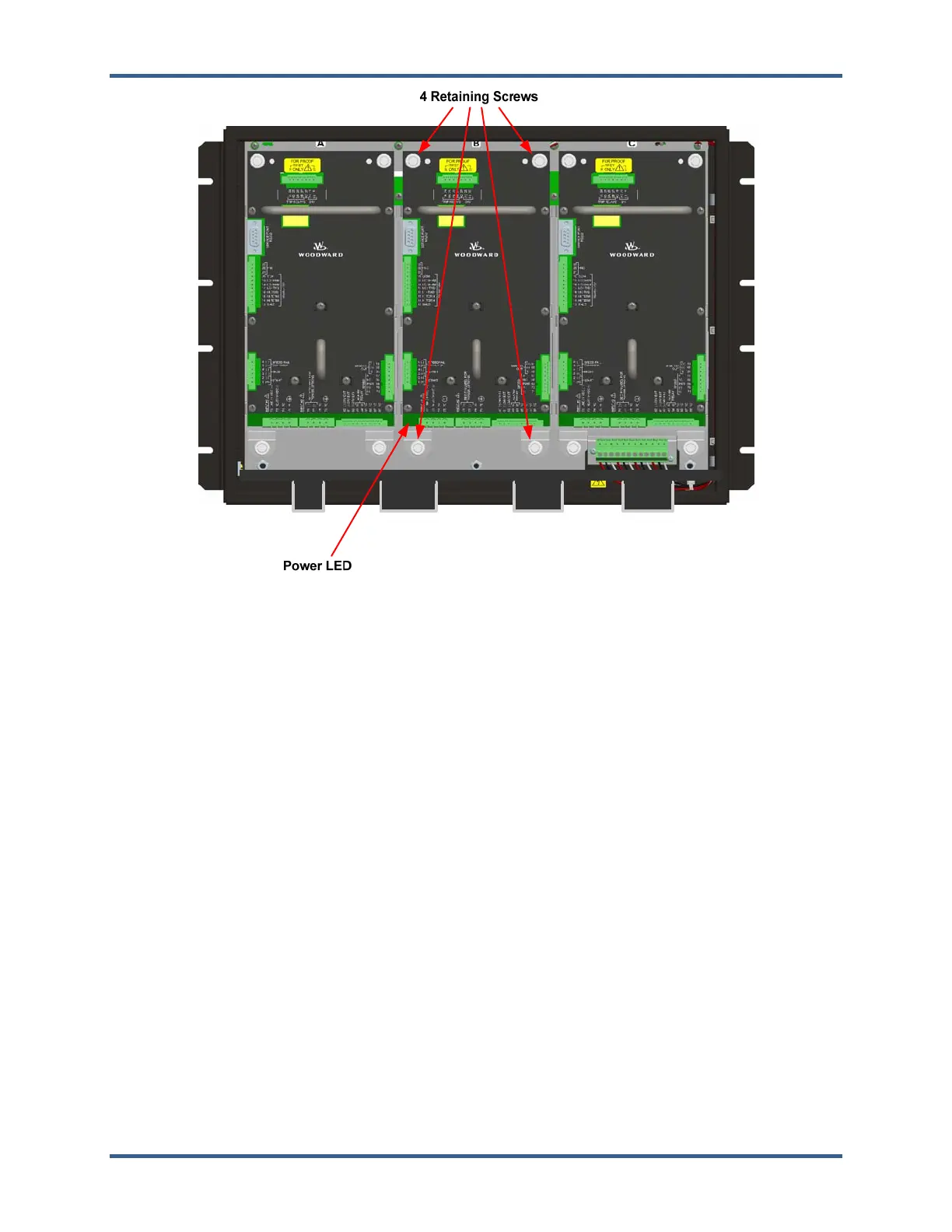

1. Insert module into slot by pressing firmly on handles. The module has guides to assist in location.
2. Tighten four module-retaining screws.
3. Install back panel.
4. Install four retaining screws.
5. Install terminal blocks.
6. Apply power and observe that the power LED is ON.
Mounting Location Considerations
Consider the following general requirements when selecting the mounting location:
 Adequate ventilation for cooling
 A location that will provide an operating temperature range of –20 to +60 °C (–4 to +140 °F)
 Space for opening & servicing
 Space for installing & removing panel mount covers
 Space for installing cable strain relief as needed
 Vertical orientation of the unit
 Protection from direct exposure to sunlight, water, or to a condensation-prone environments
 Protection from high-voltage or high-current devices which produce electromagnetic interference
 Avoidance of vibration
 A location that has H
2
S and SO
2
gases at or below the levels classified in international standard IEC
721-3-3 1994 - environment Class 3C2
 Maximum purge pressure: 4 psi
