6 DIMENSIONS, CLEARANCE AND PIPE CONNECTIONS
6.1 HEAT PUMP

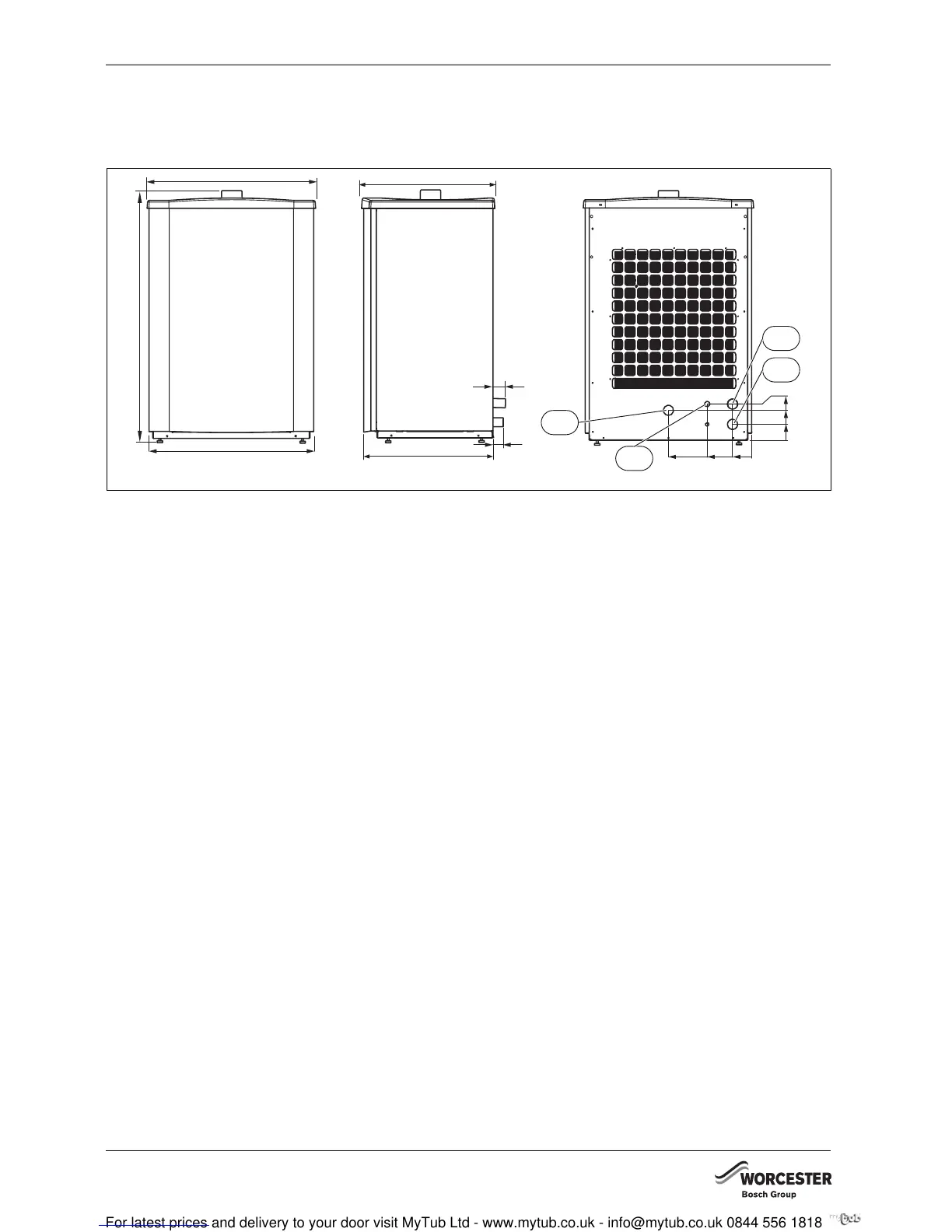

Fig. 10 Greensource 6-9.5 dimensions
1 Drain
2 Cable entry
3 Flow to the HWDU (hose, 1" fem. thread)
4 Return from the HWDU (hose, 1" fem. thread)
REQUIRED MINIMUM CLEARANCES FOR THE HEAT
PUMP
A minimum clearance of 1 m is required in front of the
pump; the minimum clearance to the back and sides is
0.3 m.
If a roof is installed it must be positioned at least 1.5m
above the heat pump to avoid the recirculation of cold.
818
839
1223
665
60
50
643
78
147
178
92
217
408
3
4
2
1
