PRE-INSTALLATION
6 720 806 548 (2013/02) 13
BATHROOMS:
Additional RCD (Residual Current Device) protection may be required.
Refer to the latest IEE wiring regulations.

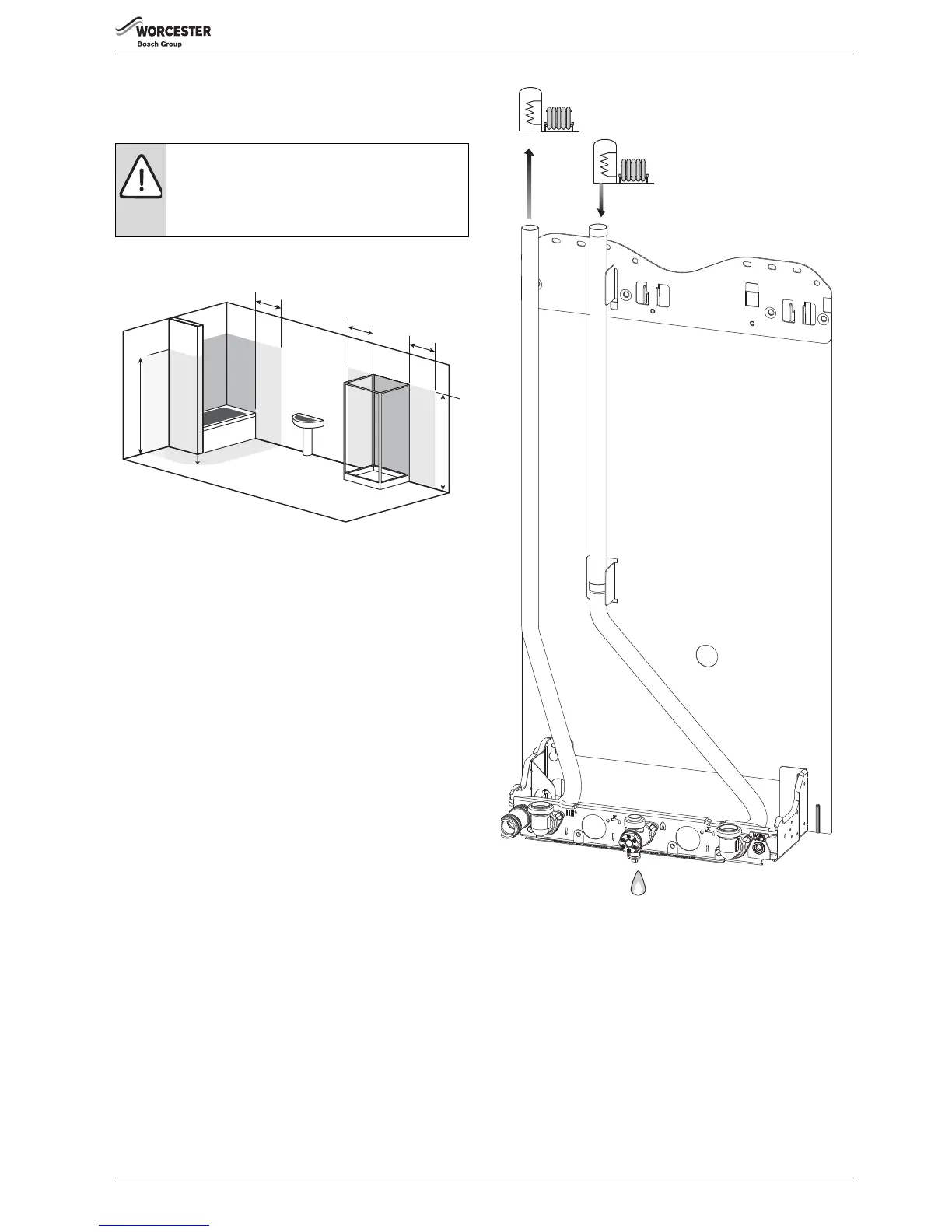

BATHROOM INSTALLATIONS
Fig. 17 Bathroom installations
3.6 PLUMBING MANIFOLD
CONNECTIONS:
Heating System: 22mm compression fittings
Gas: 22mm compression fittings
Use the fittings supplied in the Hardware pack.
PREPLUMBING
With the plumbing manifold installed, pipe work can be installed to the
valves on the manifold.
RUNNING PIPES BEHIND THE BOILER
If the boiler pipes are to be run behind the appliance ensure that the
pipes pass close to the wall as shown in the diagram opposite, and within
the pipe guide.
Fig. 18 Behind the boiler pipe run
NOTICE: Any switch or appliance control using 230 V
mains electricity must not be able to be touched by a
person using the bath or shower. Electrical switches,
fused spur and socket outlets must not be situated in
the bathroom.
