Worcester GREENSTAR 30CDi

APPLIANCE INFORMATION
6 720 806 548 (2013/02) 5
2 APPLIANCE INFORMATION
2.1 GENERAL INFORMATION

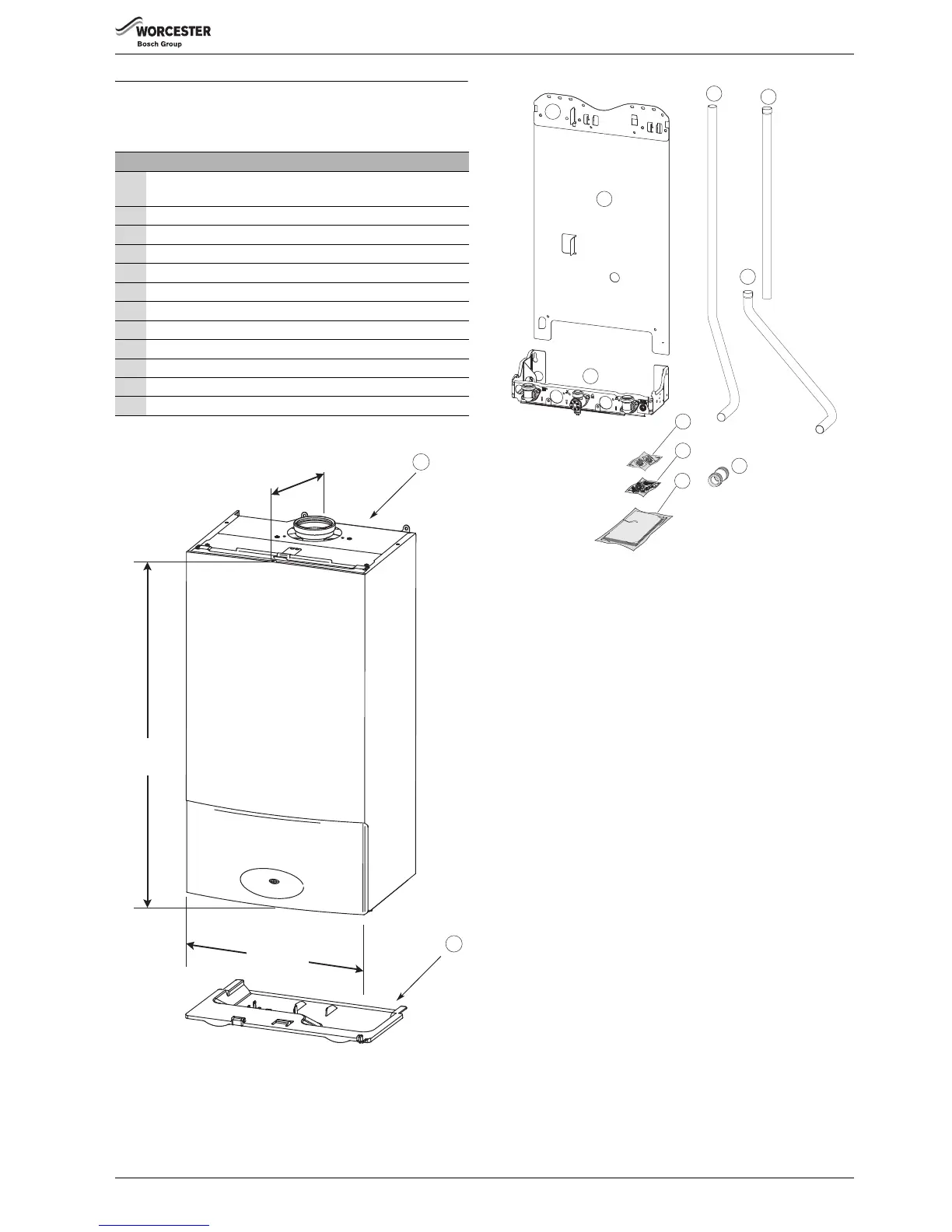

Fig. 1 Overall dimensions
Fig. 2 Standard package
STANDARD PACKAGE:
1 Wall hung gas fired condensing regular boiler for central heating
and domestic hot water
2 Wall mounting plate
3 Hanging bracket
4 Hardware pack 1
5 Hardware pack 2
6 Literature pack
7 Flow pipe
8Return pipe 1
9Return pipe 2
10 Trap / Siphon Outlet Connection (22mm Plastic Pipe)
11 Pre-plumbing manifold with water and gas connections
12 Bottom panel
12
1
ma
x.
360
mm
max.
760 mm
440mm
6720806548-13.1Wo
6720806548-02.1Wo
