Worcester Greenstar Danesmoor Utility Regular ErP 25/32

Appliance information
Greenstar Danesmoor Utility
ErP
and Utility System
ErP
- 6 720 813 286 (2014/09)10

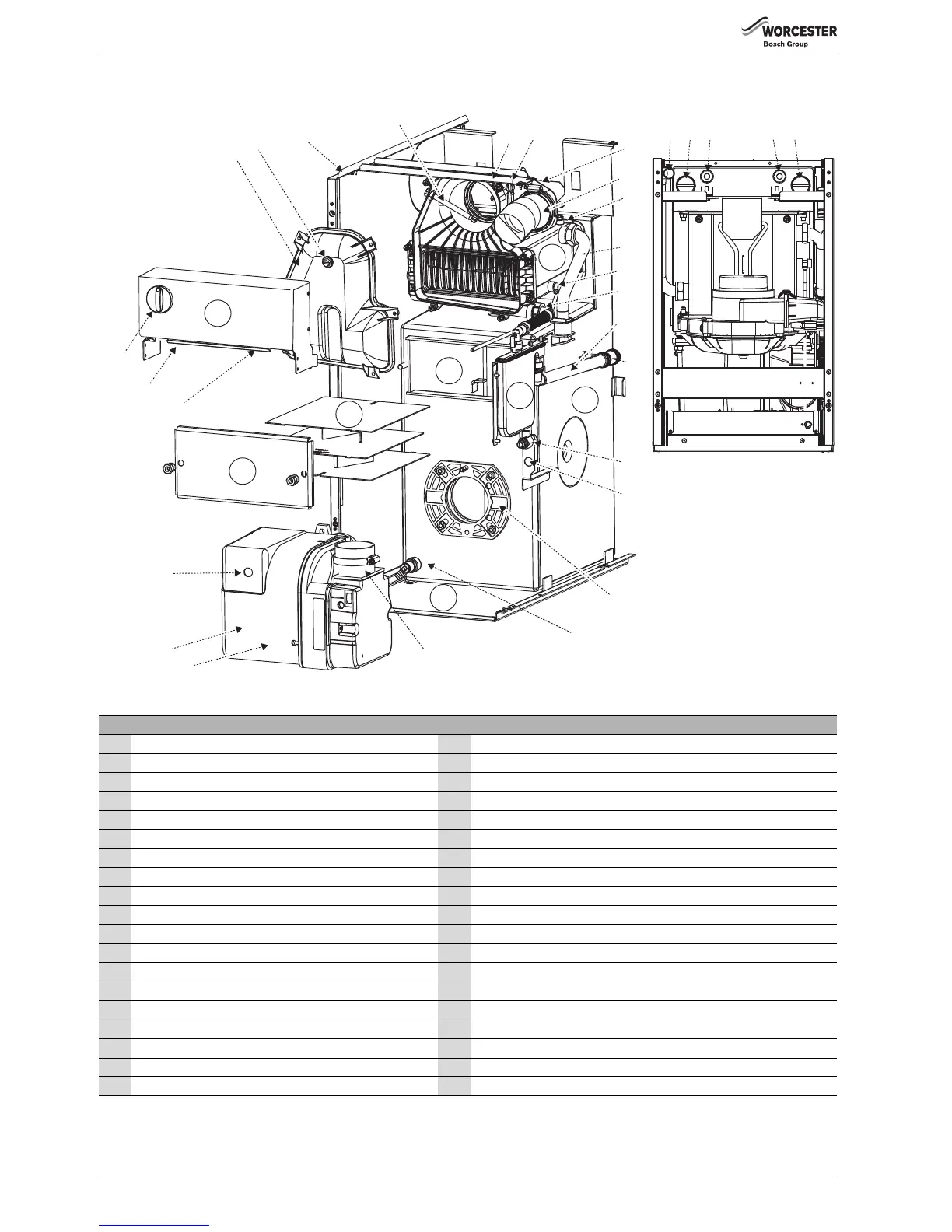

3.5 Layout and components - 18/25 Regular appliance shown
Fig. 4 18/25 Regular appliance shown
Figure 4 does not include the top, front, and right hand side panel.
1 Control box assembly 20 Condensate drain pipe
2 Flue manifold access cover 21 Flexible condensate drain pipe connection
3Flue gas sampling point 22 Primary heat exchanger
4 Casing side panel 23 Oil isolating valve
5 Flue overheat thermostat phial 24 Optional oil return position
6 Power cable clip 25 Burner mounting plate
7 Fire valve sensor clip 26 Primary heat exchanger drain
8Return 27 Base plate and oil drip tray
9 Flow/Optional combined feed and vent 28 Burner air intake - connected by flexible duct (12) to air inlet casing (13)
10 Control & manual reset overheat thermostat phial 29 Burner motor - behind plastic cover
11 Auto-reset high-limit thermostat phial 30 Oil pump - behind plastic cover
12 Air inlet casing 31 Lockout reset button (on front of burner control box)
13 Flexible air duct (connecting to air intake on burner) 32 Combustion chamber access door
14 Secondary heat exchanger bleed point (one on either side) 33 One piece baffle arrangement
15 Secondary heat exchanger 34 Combustion chamber
16 Heat exchanger flow pipe 35 Boiler overheat reset button
17 Secondary heat exchanger drain 36 Flue overheat reset button
18 Condensate outlet 37 Temperature control knob
19 Condensate trap
1
4
6
20
33
32
31
34
29
28
25
26
30
12
21
23
24
27
2
3
5
7
13
14
15
17
18
19
22
16
35
36
37
