Worcester Greenstar FS 42CDi Regular User Manual

INSTALLATION
INSTALLATION & SERVICING INSTRUCTIONS
19

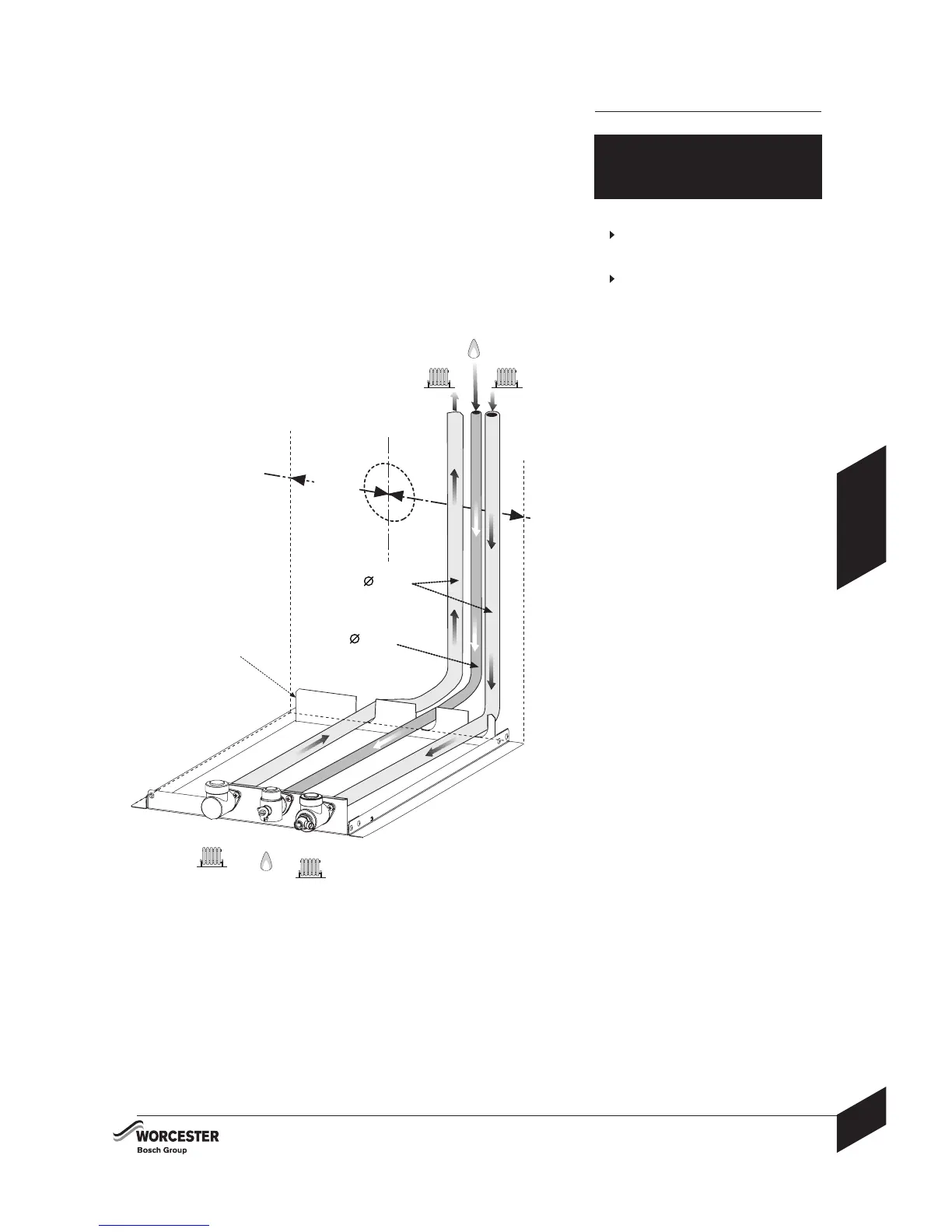

MOUNTING FRAME CONNECTIONS
8 716 115 216b (09.2008)
CAUTION: ISOLATE THE MAINS GAS
SUPPLY BEFORE STARTING ANY WORK
AND OBSERVE ALL RELEVANT SAFETY
PRECAUTIONS.
GAS AND WATER CONNECTIONS:
Ensure all pipework is clean and each
pipe is in the correct position as shown
opposite.
Push in each pipe in turn and tighten the
fitting to secure.
A - CH flow (28mm)
B - Gas inlet (22mm)
C - CH return (28mm)
D - Mounting frame.
MOUNTING FRAME
CONNECTIONS
A
B
C
D
28mm
22mm
247mm
123mm

Worcester Greenstar FS 42CDi Regular Specifications

General

Model	Greenstar FS 42CDi Regular
Category	Boiler
Output Rating	42 kW
Fuel Type	Natural Gas
Efficiency Rating	A
Max Operating Pressure	3 bar
Type	Regular
Warranty	5 years
