PPG DIGIMATCH SPECTROPHOTOMETER
18

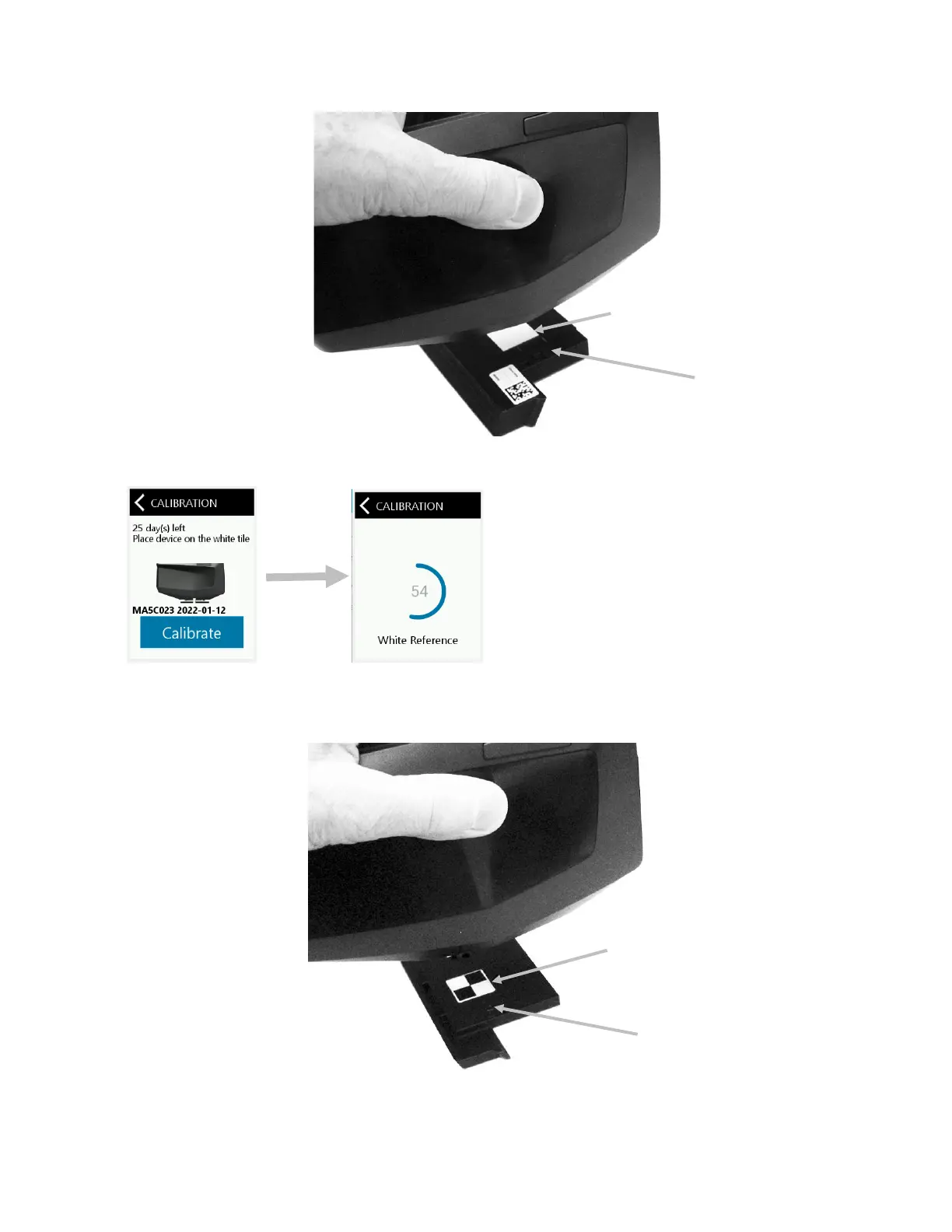

3. When ready, tap Calibrate. Do not touch the device throughout the measurement sequence.
4. After white tile calibration, remove the device from the white tile and position the device measurement port
over the camera test target as shown in the image below. Make sure that the two alignment pins insert into
the openings in the camera test target. Note: The pins will only insert in one direction. Make sure you have
the device orientated correctly.
5. When ready, tap Continue. Do not touch the device throughout the measurement sequence.
White tile
Large alignment pin
Camera test target
Large alignment pin
