System Components
The Freedom SW uses Xanbus, a network communications
protocol developed to communicate the Freedom SW’s
settings and activity to other Xanbus-enabled devices.
You can configure and monitor the Freedom SW and every
Xanbus-enabled device in the system using an optional
Xanbus System Control Panel (SCP).
Another component is the optional Xanbus Automatic
Generator Start (AGS) which allows operation with a wide
range of generators, supported through a dedicated generator
input. Simply, the AGS automatically starts and stops your
generator.
The Freedom Sequence Intelligent Power Manager is a fully
integrated power management system that provides automatic
power and load management for use in recreational vehicles
(RV) while receiving power from a generator or shore power.
This device works in the background to prevent monitored
AC loads from exceeding shore and generator breaker
capacity.
See “Xanbus-enabled Products and Accessories” on page 9
for part numbers.
Xanbus System
The Xanbus system includes the Freedom SW and other
Xanbus-enabled devices. The Freedom SW is the device in a
Xanbus system that typically provides network power—500
mA at 12 volts DC. All of the Xanbus-enabled devices, such
as the Freedom SW, the SCP, and the AGS are able to
communicate their settings and activity to each other. See
Figure 2.

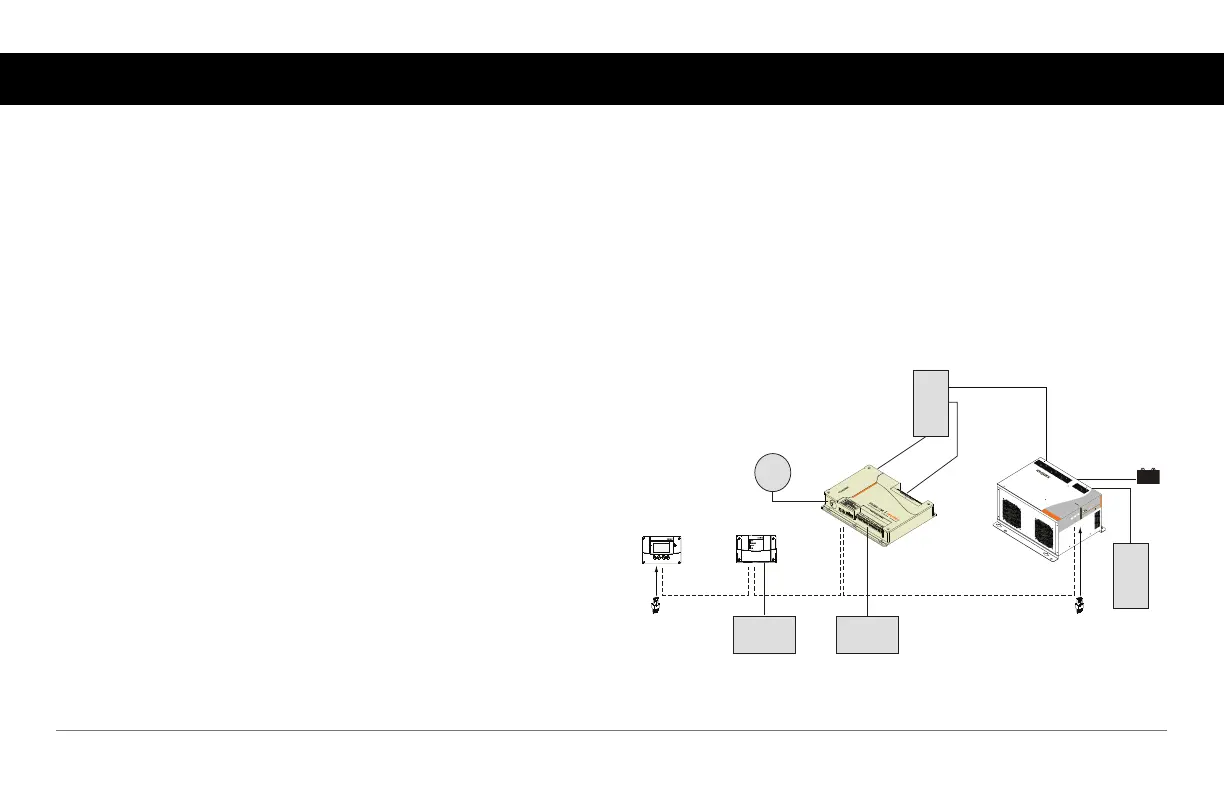

Figure 2 Typical Xanbus System Diagram
Xanbus System Control Panel
Xanbus Automatic Generator Start
System Control Panel
network terminator network terminator
Automatic Generator Start
Freedom Sequence
Freedom SW Inverter/Charger
FREEDOM SW
3012
FREEDOM
SW
3012
I
n
v
e
r
t
e
r
R
e
set
Enable
I
n
v
e
r
t
e
r A
C/
O
n
C
ha
r
ge
Fault
Generator
Shore
Power
AC Loads
AC Panel
BATTERY
Inverter
Load Panel
