72 Freedom SW Owner’s Guide
Configuring the Freedom SW using the SCP
Cascading
The Cascading feature is found in the System Settings
menu only when two inverters are configured as a stacked
pair (see “Stacking Configuration Menu” on page 68). A
stacked pair has one Master unit and one Slave unit. The
cascading feature allows manually entered inverter/charger
settings on the Master unit to be automatically cascaded (or
copied) to the Slave unit when the two units are meant to have
the same settings. Cascading helps simplify the duplication of
settings of one inverter into another. The feature is Enabled
by default but may be Disabled to accommodate different
settings for the Master and Slave units. Review with a
qualified system designer before adopting different settings
for the Master and Slave units.
To change Cascading settings:
1. From the System Status screen, press the Enter
button.
The Select Device menu screen appears.
2. From the Select Device screen, press the Enter button.
The System Settings menu screen appears.
3. From the System Settings screen, press the Down
arrow button to highlight Cascading.
4. Press Enter and use the Up and Down arrow buttons to
change selections.
5. Press Enter again to choose a selection.
6. Press Func (3x) to return to the System Settings
menu.

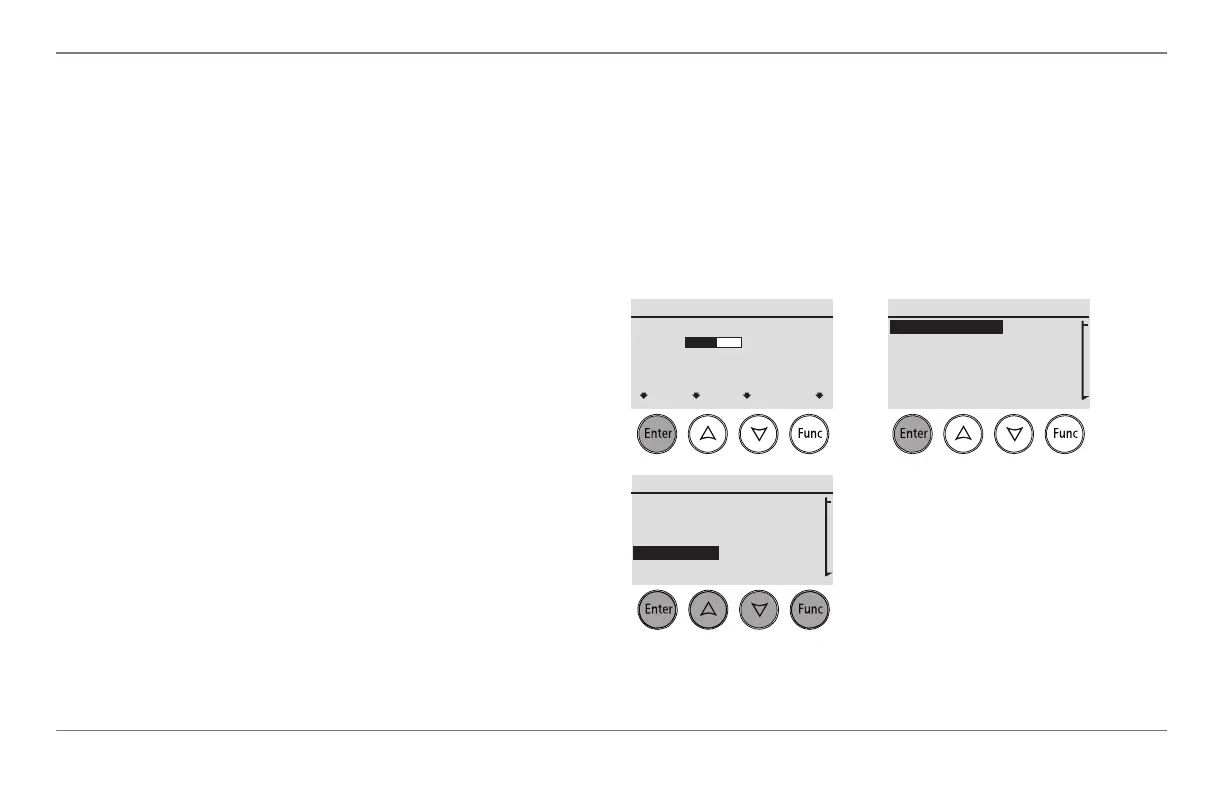

Select Device
System Settings
FSW3012 00
XAGS 00
XSCP
System Status
Battery
BatLev
Load
AC In
12.1V -257A 84”F
Invert
120V 12A
0V 0A
menu EnInv EnChg Shr
System Settings
Invert
AC Charge
System Mode
Cascading [Enabled]
12
3
Steps 4 to 6 are not shown.
