97-0019-01-01 71
Configuring the Freedom SW using the SCP
Setting the Device Number
Setting the device number gives a Xanbus-enabled device a
unique identity when several devices of the same type are
installed in the power system network. When each identical
device has a unique number, the Xanbus SCP can correctly
identify and display status information for each device.
A device number consists of two digits ranging from 00
(default) to 31.
If only one of each type of device is installed in the network,
you do not need to set the device number. However, setting
the device number to a value other than 00 is recommended in
case you need to use the Restore Defaults command
(which resets the device number to 00). After performing the
command, checking that the device number has returned to 00
indicates that the command was successfully completed.
To set the Freedom SW device number:
1. On the Freedom SW Setup menu, select
Advanced Settings.
If Basic Settings appears instead of Advanced
Settings on the Setup menu, display Advanced
Settings by pressing Enter + Up arrow + Down arrow
simultaneously.
On the Advanced Settings menu, select Stacking and
press Enter.
2. On the Stacking menu, select Dev Number.
3. Press Enter to highlight the instance number.
4. Use the Up and Down arrow buttons to adjust the two-
digit identifier number.
5. Press Enter.

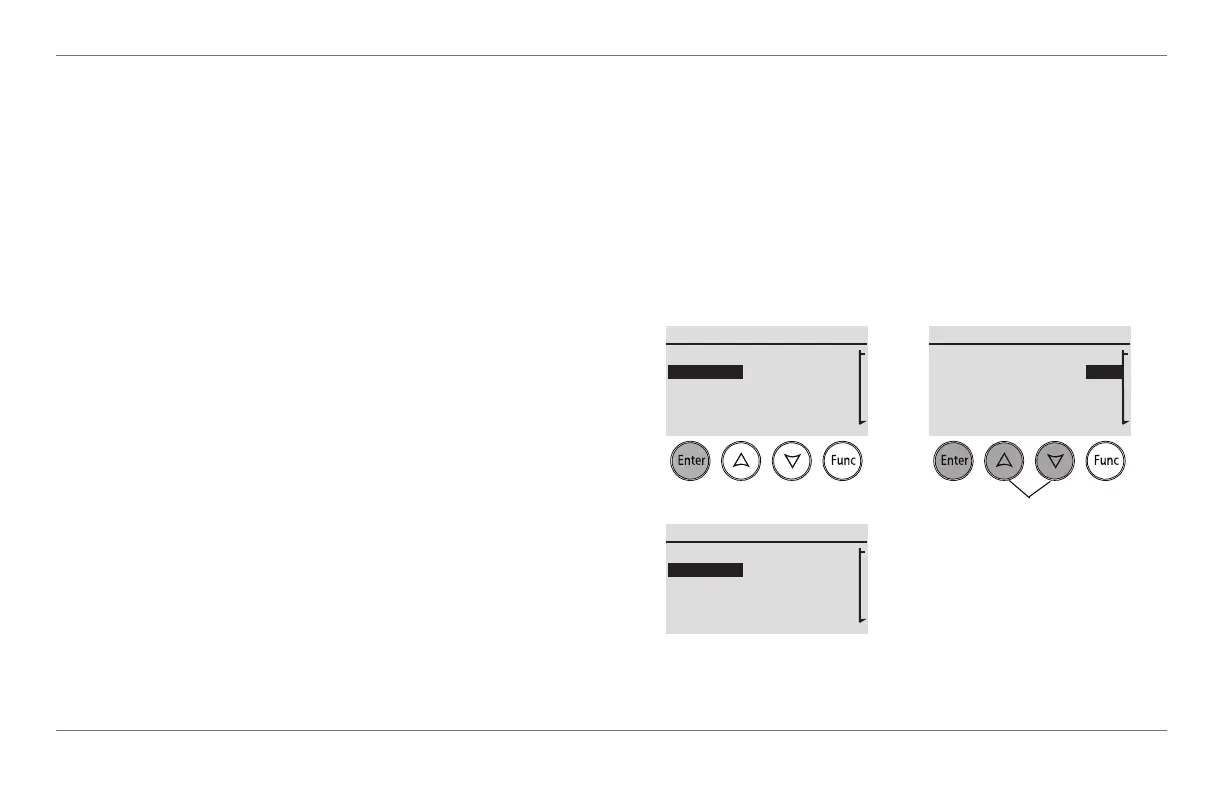

Figure 33 Setting a Device Number
FSW3012 00: Stacking
[00]
[01]
[1Ph Master]
Dev Name
Dev Number
Stack Mode
FSW3012 00: Stacking
Dev Name
Dev Number
Stack Mode
[00]
[*01]
[1Ph Master]
FSW3012 00: Stacking
[00]
[01]
[1Ph Master]
Dev Name
Dev Number
Stack Mode
3
5
4
Steps 1 and 2 are not shown.
