Configuring the Freedom SW using the SCP
To select and change a configurable setting:
1. On the setup menu, press the Down arrow (or Up arrow)
button to highlight the setting you want to change.
2. Press Enter to highlight the current value of the setting.
3. Press the Up arrow or the Down arrow button to change
the value. Hold down the button to scroll through a large
range of values quickly.
The previously set value (or default value) appears with
an asterisk (*) beside it.
4. Press Enter to select and confirm the value.
5. If you have another setting to change, return to step 1.
-Or-
If you have no more settings to change, press Func until
the Xanbus SCP displays the desired screen or menu.
IMPORTANT: If you have no more settings to change, it is recommended
to leave the Setup menu in the basic settings format to help prevent
unintentional configuration. If the Setup menu displays Advanced Settings,
press Enter + Up arrow + Down arrow at the same time. The Setup menu
should then display Basic Settings as the last item on the menu.

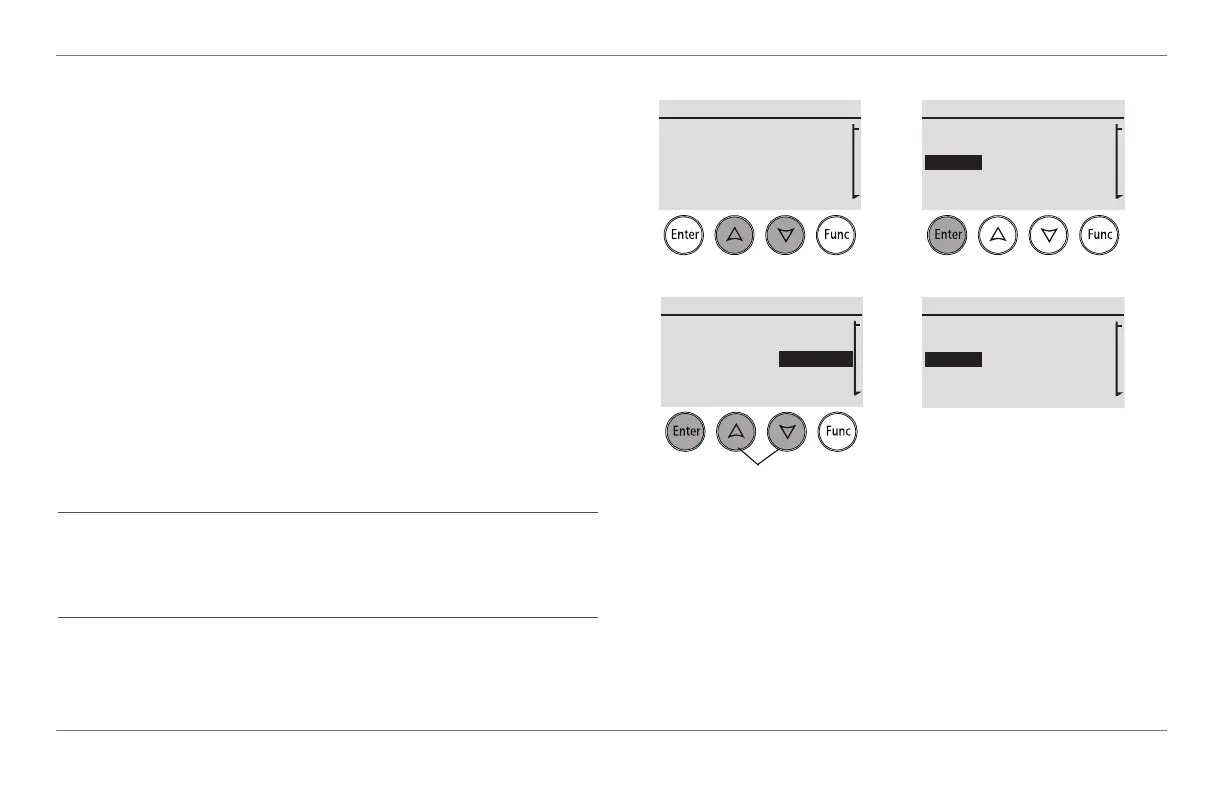

Figure 21 Selecting and Changing a Configurable Setting
FSW3012 00: Setup
Mode
Battery
Load
AC In
Invert
13.4V 0.0A N/A
115W 120V 12A
120V 15A 60Hz
FSW3012 00: Setup
[Enabled]
[Enabled]
[Enabled]
Inverter
Search Mode
Charger
Force Chg
FSW3012 00: Setup
Inverter
Search Mode
Charger
Force Chg
[Enabled]
[Enabled]
[*Enabled]
FSW3012 00: Setup
Inverter
Search Mode
Charger
Force Chg
[Enabled]
[Enabled]
[Disabled]
1 Scroll down using
the Down arrow button.
2 Press Enter to change
the value.
3 Use these buttons to
scroll through available
values.
4 Press to
confirm the
value.
