Installation
975-0171-01-01 45
Series Connection
When batteries are connected with the positive terminal of one battery to the
negative terminal of the next battery, they are connected in series. In a series
configuration, the battery bank has the same Ah rating of a single battery, but an
overall voltage equal to the sum of the individual batteries. See Figure 17.

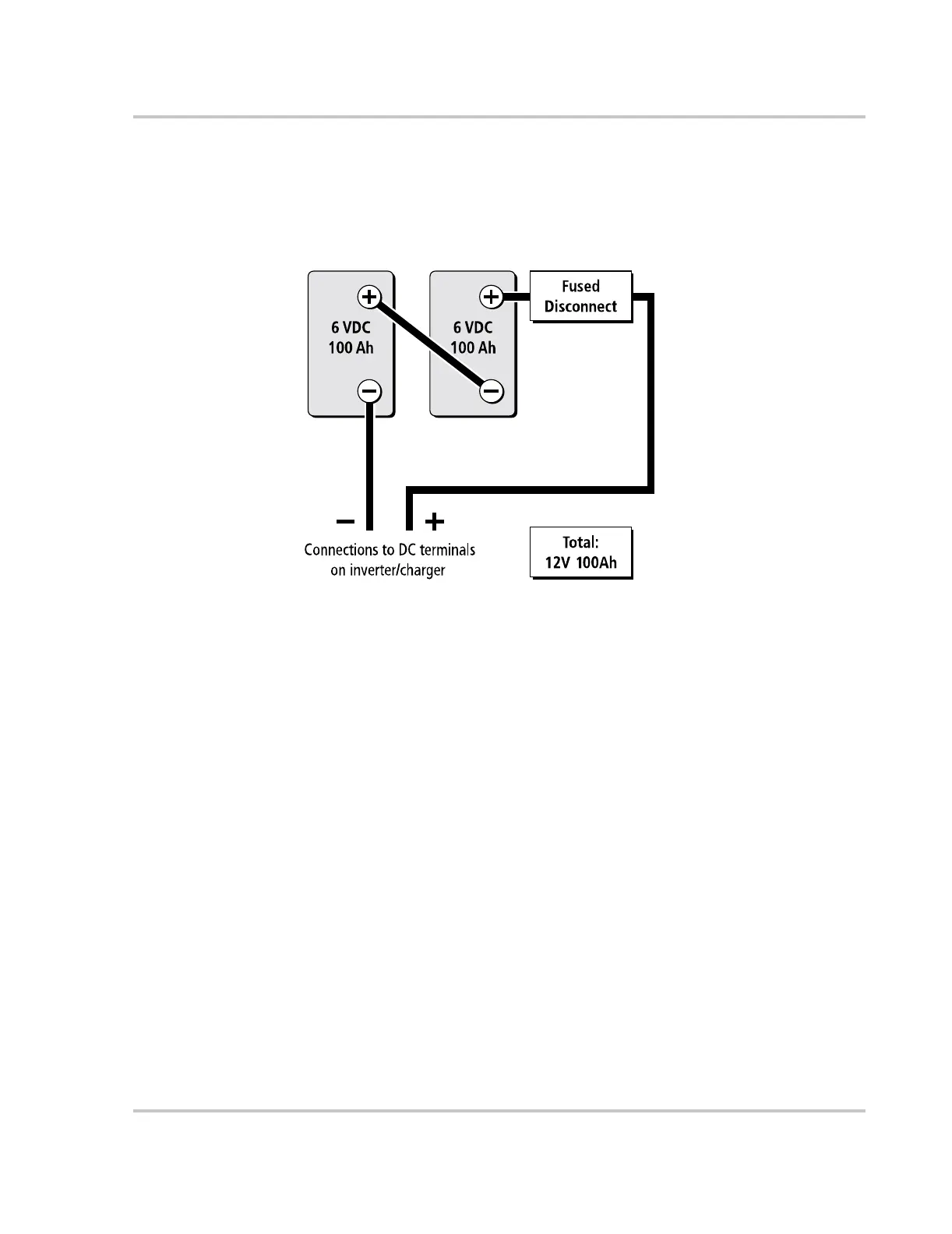

Figure 17
Batteries Connected in Series
