Xantrex RS3000 User Manual

Configuration
975-0170-01-01 3–3
System Menu Map

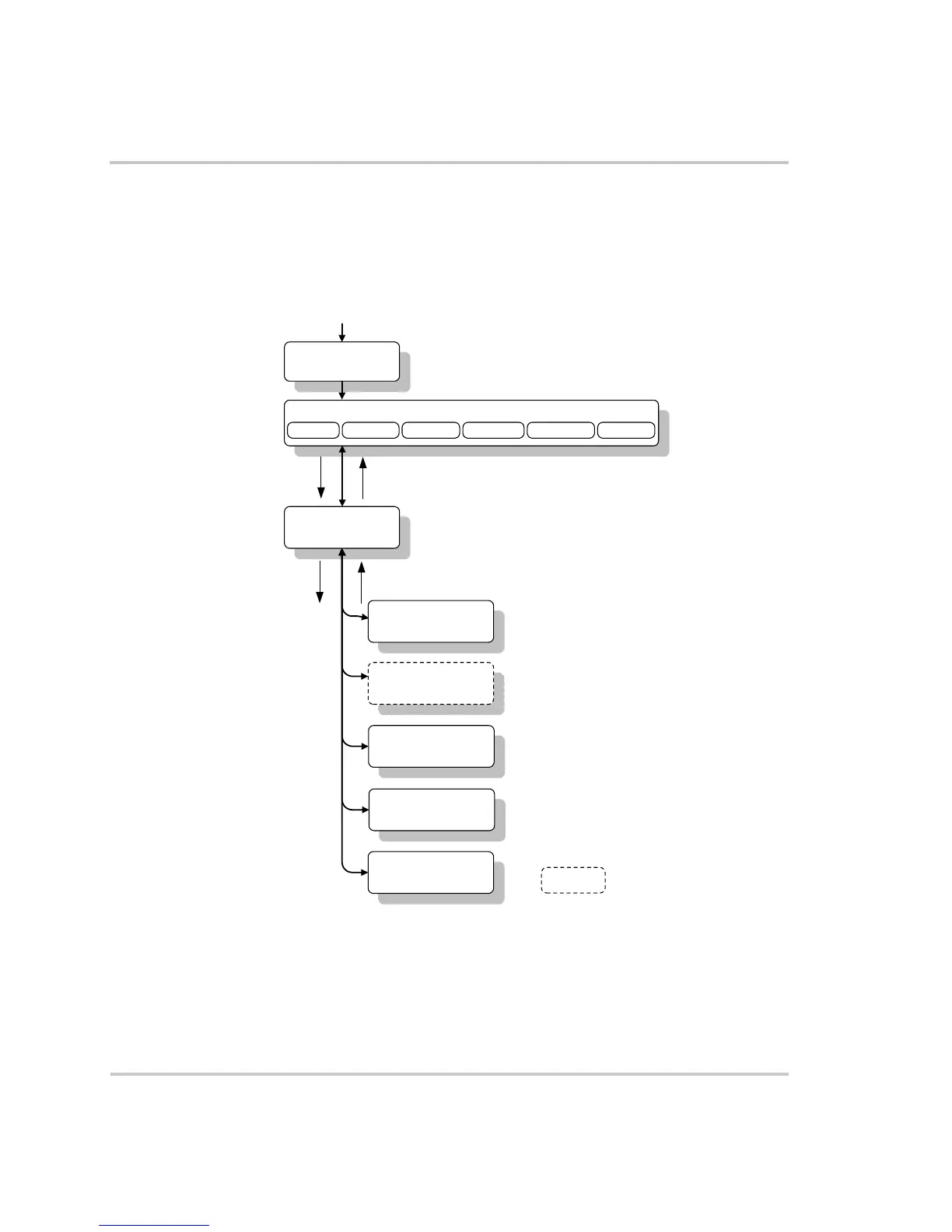

Figure 3-1 provides a map of how the System Control Panel screens and
menus are organized. The order of devices appearing on the System
Control Panel will vary, depending on the order in which they’ve been
connected to the network.
Figure 3-1 System Menu Map
Startup screen
Startup screen
Power Up
System screen
System screen
Select Device
menu
Select Device
menu
Inverter/Charger
menu
Inverter/Charger
menu
Clock menu
Clock menu
System Panel menu
System Panel menu
System Settings
menu
System Settings
menu
Enter
Exit
Exit
Enter
Device menus
Standby ChargingInverting Load SenseAC Bypass Equalize
Auto Gen Start menu
Auto Gen Start menu
Optional device. This menu will
appear if this device is installed.
=
