Side Panel Features
For your reference, the side panel features with all connections completed
is shown in Figure 1-4.
CAUTION: Equipment Damage
Connect only to other Xanbus compatible devices.
Although the cabling and connectors used in this network system are the same as
Ethernet connectors, this network is not an Ethernet system. Equipment
damage may result from attempting to connect two different systems.

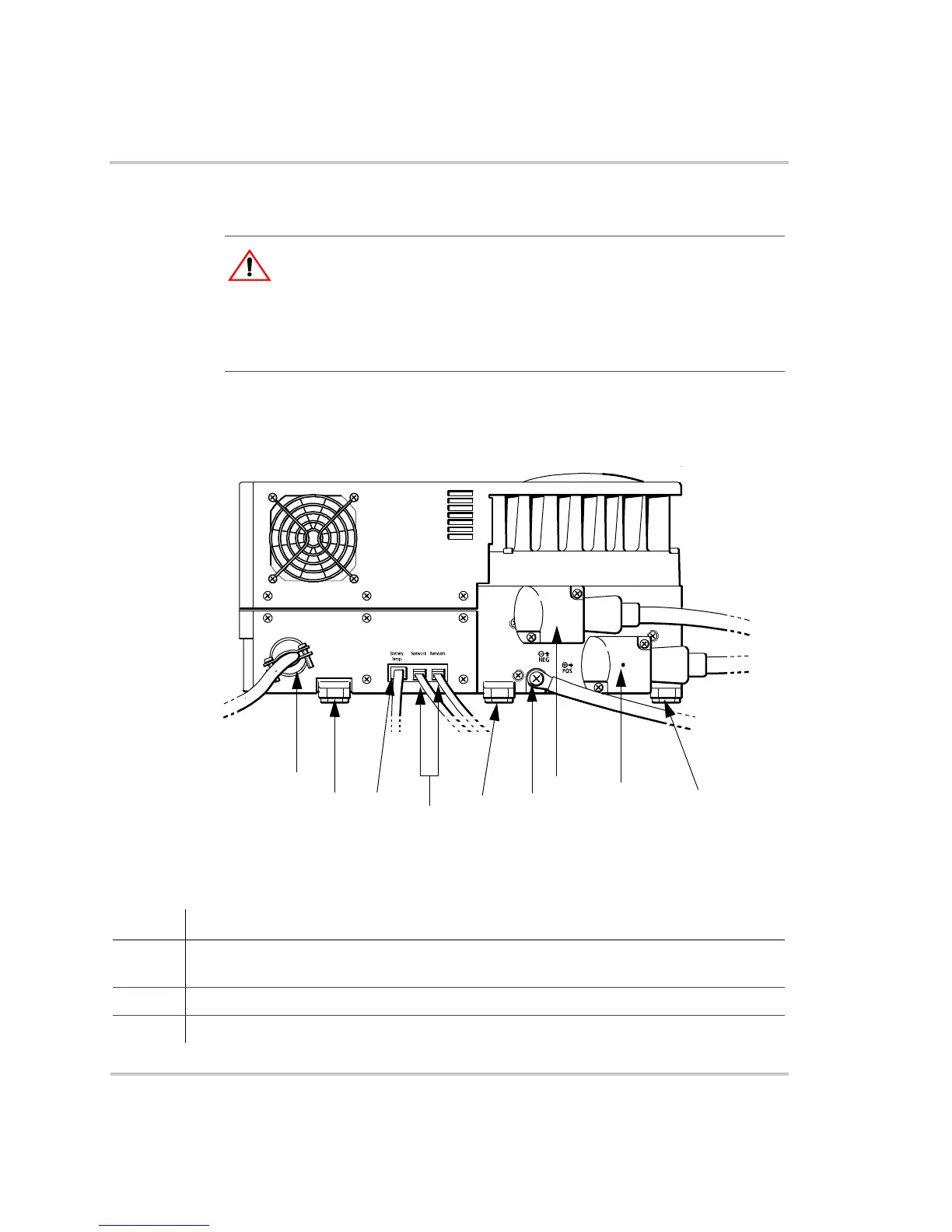

Figure 1-4
Completed Connections on Side Panel
Table 1-3
Description of Side Panel Features
Feature Description
1 AC knockout provides access for AC input and AC output wiring (shown with strain-relief
clamp installed). There are four knockouts on the unit: two on the front and two on the side.
2, 5, 9 Mounting flanges are used for mounting the unit. A total of six flanges are on the unit.
3 Battery temperature sensor jack provides connection for the battery temperature sensor.
1
2
9
3
6
7
5
4
8
