Remote Operation
SCPI Commands for Digital Interfaces
Release 3.0 153
TEMPerature Sub-Register
This shows whether the temperature of critical components is near or over the
maximum operating temperature.
Table 4.19 TEMPerature Sub-Register
Standard Event Status Register
The standard event status register sets bits for specific events during power supply
operation. All bits in the standard event status registers are set through the error event
queue. The register is defined by 488.2 and is controlled using 488.2 common
commands, *ESE, *ESE?, and *ESR?.
Figure 4.6 summarizes the standard Event Status Register

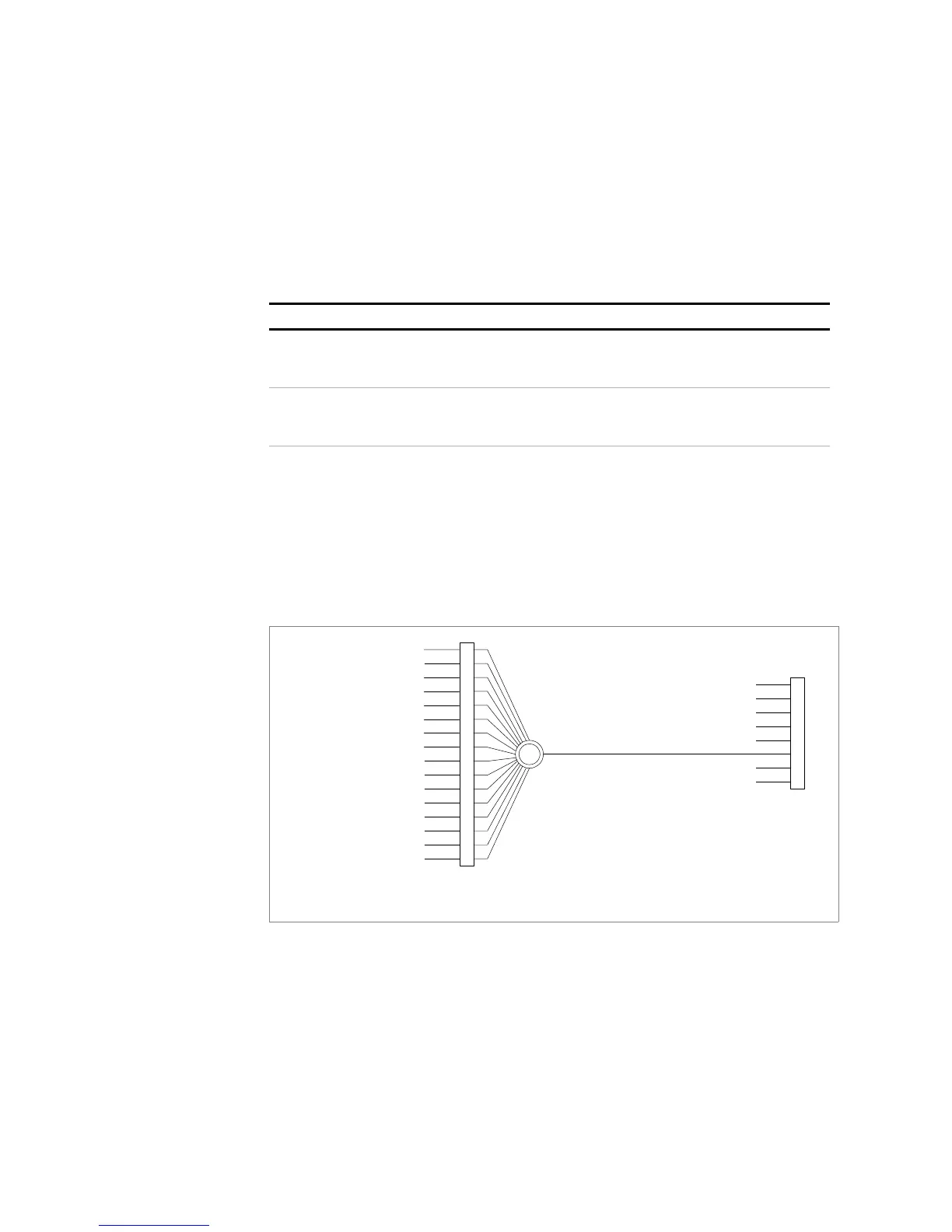

Figure 4.6 IEEE 488.2 Status Register and Status Byte
Bit Bit Weight Bit Name Description
0 1 Over TEMperature Set if the power supply temperature
exceeds the maximum operating
temperature.
1 2 High TEMperature Set if the power supply temperature
exceeds 90% of the maximum
operating temperature.
Not Used
Not Used
Not Used
MAV
Standard Event Status Register
1
0
3
2
5
4
7
6
Summary of QUESTionable Status
RQS/MSS
Summary of OPERation Status
1
0
3
2
5
4
7
6
9
8
11
10
13
12
15
14
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
+
Operation Complete
Query Error
Device Dependent Error
User Request
Power On
Execution Error
Command Error
Not Used
Standard Event Status Register
Status Byte
