ATF System with C410:V3 Controller
k. Interconnect Cable Plug
l. Operator Interface Terminal (OIT or HMI)
m. Illuminated POWER ON/OFF Selected Switch
n. Illuminated System STOP Push Button
o. Alarm Relay Outputs (2)
p. Harvest Pump Relay Outputs (2)
q. Ethernet Plug

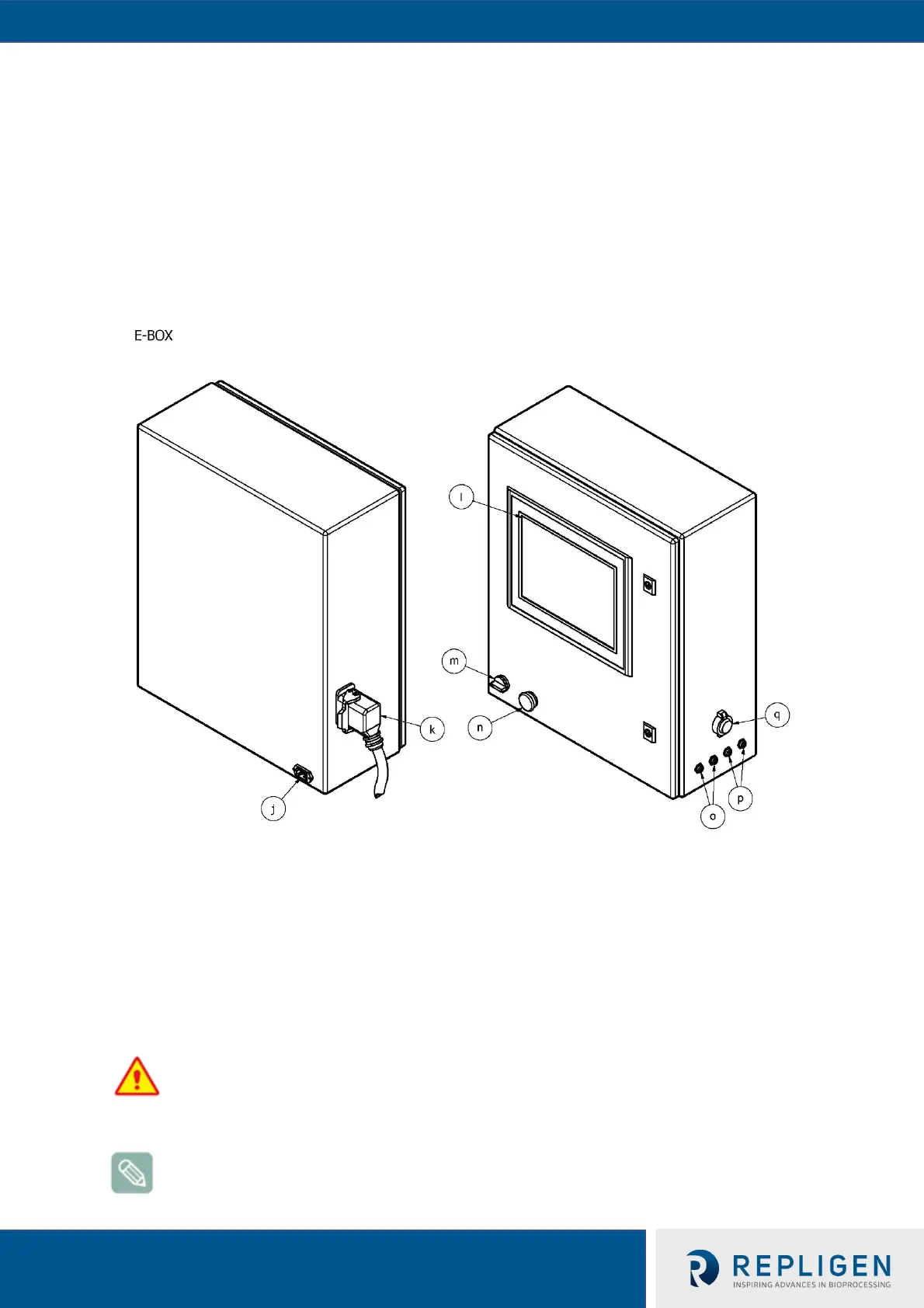

Figure 6. Electric Box (E-Box) Connections
5.2 Primary Pneumatic Services
Air inlet (e) - Located on the P-Box and provides an inlet to house compressed air
source. Recommended minimum air pressure requirement is ~50psi / 3.4bar.
Somewhat higher inlet pressures may be required, as needed, to generate higher flow
rates or to drive pneumatic instruments.
Do not exceed 90 psi / 6.1 bar on the Air inlet
Exhaust/ vacuum line (f) - Located on the P-Box. This line is connected to a vacuum
source. A vacuum source should always be connected to the exhaust line to ensure
reliable operation of the XCell
TM
ATF.
