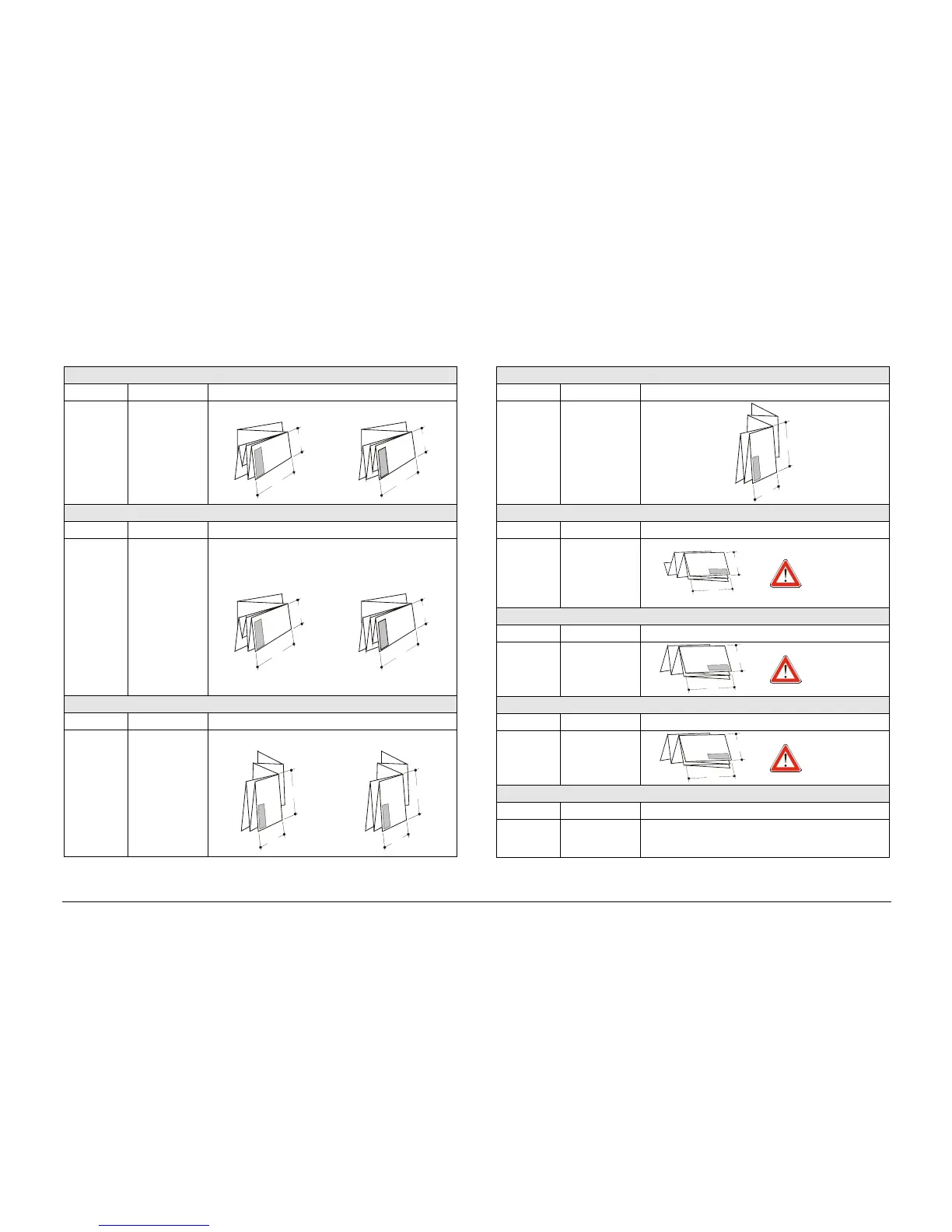

Xerox 8830 - System Setup and Preparation; Loading Media and Consumables

September 2001 88XX Series Folder Operator Manual 13
Program 8 ½”
Message Dimensions Appearance
U1-13
8½”
a=8 ½”
b=11” or ##
Face Up
a
b
Face Down
a
b
Program 9”
Message Dimensions Appearance
U1-14
9”
a=9”
b=12” or ##
Face Up
a
b
Face Down
a
b
Program 11” WALLET
Message Dimensions Appearance
U1-15
WALLET
11”
a=11 or 8 ½”
b=8 ½ or 11”
only perfect
sizes±2mm
Face Up
a
b
Face Down
a
b
Program 12” WALLET
Message Dimensions Appearance
U1-16
WALLET
12”
a=12 or 9”
b=9 or 12”
only perfect
sizes±2mm
a
b
Program 7 ½” LANDSCAPE
Message Dimensions Appearance
U1-17
7½”
LANDSCAPE
a=7 ½/11”
b=11/7 ½”or ##
b
a
Face Down only
Program 8 ½” LANDSCAPE
Message Dimensions Appearance
U1-18
8½”
LANDSCAPE
a=8 ½/11”
b=11/8 ½”or ##
b
a
Face Down only
Program 9” LANDSCAPE
Message Dimensions Appearance
U1-19
9”
LANDSCAPE
a=9/12”
b=12/9”or ##
b
a
Face Down only
Program NO FOLD
Message Dimensions Appearance
U1-20
NO FOLD
NONE BYPASSED ON THE BRIDGE
